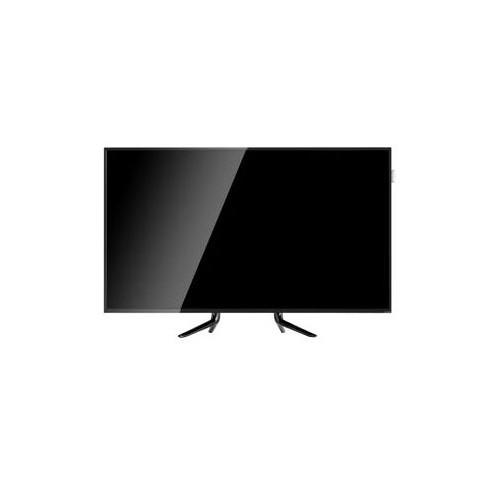

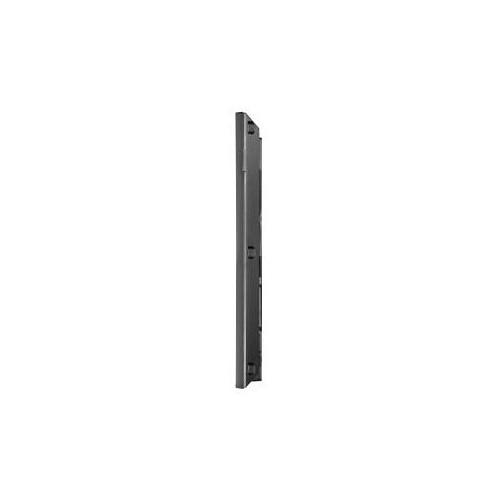

User Manual for Hanwha Techwin 32" Full HD LED Monitor Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin 32" Full HD LED
- Product category: Surveillance Monitors Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Surveillance Monitors
 |
User manual for the Hanwha Techwin 32" Full HD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The black 32" LED Monitor from Samsung features 350 cd/m² bright output and full HD resolution. Contrast ratio of 5000:1 showcases this monitor's ability to handle light and dark on-screen images. With quick response time of 8 ms, this 32" monitor can combat image blur and distortion on moving images. With viewing angle of 178°, horizontally and vertically, the monitor ensures no color deviation or distortion from virtually any angle. -
- Supports HDMI, DVI, VGA, and Component (CVBS Common) video inputs
- Embedded Wi-Fi module for Wi-Fi direct connection and screen mirroring
- Ethernet / RS-232C for remote control
- Integrated MagicInfo Player S3 for playing local / network contents
In the Box Hanwha Techwin 32" Full HD LED Monitor (Black) Stereo to RCA & BNC cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin 32" Full HD LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SMT-3232A Specs | | | LCD Size | 32" (81.3 cm) | | Video System | NTSC / PAL | | Resolution | 1,920 x 1,080 | | Response Time | 8 ms | | Viewing Angle (H x V) | 178° x 178° | | Contrast Ratio | 5,000:1 | | Brightness | 350 cd/m2 | | Display Color | 16.7 million | | Panel Life | 50,000 hours | | | | Video | 1 x VGA
1 x DVI
1 x HDMI
1 x Component (CVBS common) | | RGB / DVI | Connector:
1 x Analog 15-pin D-sub, DVI-D
Input Signal:
0.7 Vp-p ±5%
Available Format:
640 x 480 @ 60 / 66 / 72 / 75 Hz (VGA)
720 x 400 @ 70 Hz
800 x 600 @ 56 / 60 / 72 / 75 Hz (SVGA)
832 x 624 @ 75 Hz
1,024 x 768 @ 60 / 70 / 75 Hz (XGA)
1,152 x 864 @ 75 Hz
1,280 x 720 @ 60 Hz
1,280 x 800 @ 60 Hz
1,280 x 1,024 @ 60 / 75 Hz (SXGA)
1,366 x 768 @ 60 Hz
1,440 x 900 @ 60 Hz
1,600 x 900 @ 60 Hz
1,680 x 1,050 @ 60 Hz
1,920 x 1,080 @ 60 Hz | | HDMI | Connector:
1 x HDMI input (Type A connector)
Available Format:
640 x 480p @ 60 Hz
720 x 480i @ 60 Hz
720 x 480p @ 60 Hz
720 x 576i @ 50 Hz
720 x 576p @ 50 Hz
1,280 x 720p @ 50/60 Hz
1,920 x 1,080i @ 50 / 60 Hz
1,920 x 1,080p @ 50 / 60 Hz | | Audio | Connector:
Stereo mini jack
Speaker:
1 x 10 W | | Multiple Display Calibration | Via RS-232C / RJ-45 | | Application Support | Remote controller | | | | Processor | Cortex-A9 1 GHz Quad Core CPU | | Main Memory | 1.5 GB 48-bit DDR3-933 (1866 MHz) | | Storage | 8 GB (2.65 GB occupied by O/S, 5.35 GB available) | | I/O Ports | USB 2.0 | | Operating System | Linux | | Network Connection | Wi-Fi module embedded (Wi-Fi direct, Screen mirroring) | | | | Functions | VESA DPM compatible | | Language | Chinese (Simplified), English, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish, Swedish | | | | Input Voltage | 100 to 240 VAC (50/60 Hz) ±10% | | Power Consumption | Maximum 77 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 80% (non-condensing) | | | | VESA Mount | 7.9 x 7.9" (200 x 200 mm) | | Bezel Size | Top: 0.41" (1.05 cm)
Bottom: 0.59" (1.50 cm) | | Dimensions | With Stand: (available separately)
23.98 x 19.92 x 12.24" (73.60 x 50.60 x 31.10 cm)
Without Stand:
28.40 x 116.55 x 1.96" (72.14 x 42.03 x 4.99 cm) | | Weight | 10.6 lb (4.8 kg) | | | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 31.5 x 19.0 x 5.0" |
