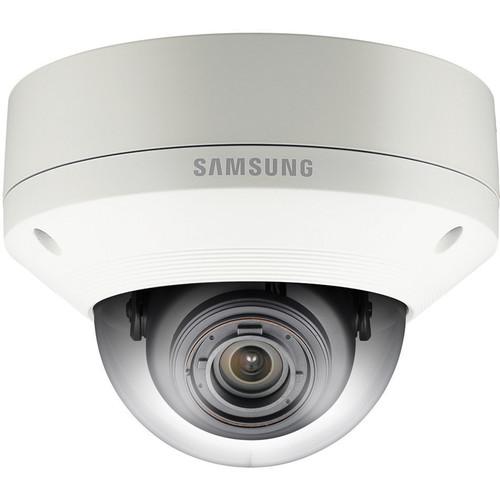

User Manual for Hanwha Techwin 5MP Outdoor Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin 5MP Outdoor Dome Camera
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin 5MP Outdoor Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The 5MP Outdoor Dome Camera from Samsung features a 1/1.8" progressive-scan CMOS sensor and a 3.6-9.4mm varifocal lens to capture 2592 x 1944 resolution video at up to 20 fps. Up to 32 privacy zones can be applied to mask areas. This camera also features tampering detection as well as audio detection. This camera is IP66-rated for outdoor use and IK10-rated for vandal resistance. - 5MP 1/1.8" progressive-scan CMOS sensor to capture 2592 x 1944 resolution video at up 20 fps
- 3.6-9.4mm motorized varifocal lens with simple focus
- Up to 32 privacy masking zones
- microSD/SDHC/SDXC memory slot can support up to a 64GB microSD card (sold separately)
- Heater for operating in low temperatures
- IP66- and IK10-rated for outdoor use and vandal resistance
In the Box Hanwha Techwin 5MP Outdoor Dome Camera Software CD Monitor Testing Cable Power Terminal Block L Wrench Audio/Alarm Cable Cable Bush Drill Bit Mounting Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin 5MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNV-8080 Specs | | | Imaging Device | 5MP 1/1.8" progressive-scan CMOS sensor | | Total Pixels (H x V) | 6 MP (3,096 x 2,094) | | Effective Pixels (H x V) | 2,592 x 1,944 | | Minimum Illumination | Color:
0.2 lux (1/20 sec, f/1.2, 50 IRE), 0.005 lux (2 sec, f/1.2, 50 IRE)
0.1 lux (1/20 sec, f/1.2, 30 IRE), 0.0025 lux (2 sec, f/1.2, 30 IRE)
B/W:
0.02 lux (1/20 sec, f/1.2, 50 IRE), 0.0005 lux (2 sec, f/1.2, 50 IRE)
0.01 lux (1/20 sec, f/1.2, 30 IRE), 0.00025 lux (2 sec, f/1.2, 30 IRE) | | S / N Ratio | 50 dB | | Video Output | CVBS: 1.0 Vpp/75 Ohm; composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation DIP connector type | | | | Focal Length (Zoom Ratio) | 3.6-9.4mm (2.6x) motorized varifocal lens | | Maximum Aperture Ratio | f/1.2 | | Angular Field of View | Horizontal: 104 (wide) to 39.2° (tele)
Vertical: 75.2 (wide) to 29.3° (tele) | | Minimum Object Distance | 1.64' (0.49 m) | | Focus Control | Simple focus (motorized V/F) / manual, remote control via network (manual, simple focus) | | Lens Type | DC auto iris | | Mount Type | DC auto iris / board-in type | | | | Pan / Tilt / Rotate | 0 to 354° / 0 to 67° / 0 to 355° | | | | Camera Title | Off / on (displayed up to 15 characters) | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 60 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / on) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (Off / on) | | Motion Detection | Off / on (4 x rectangular zone) | | Privacy Masking | Off / on (32 x rectangular zone) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, audio detection | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Motion detection, tampering, audio detection, network disconnection, and alarm input | | Alarm Events | File upload via FTP and email, notification via email, local storage (microSD/SDHC/SDXC) or NAS recording at event, external output | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 5 MP: 2592 x 1944, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240
2 MP: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 | | Maximum Frame Rate | 5 MP
H.264: 20 fps for all resolution; MJPEG: 10 fps @ 2592 x 1944,15 fps @ 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 20 fps @ 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240
2 MP
H.264: 30 fps for all resolution
MJPEG: 15 fps @ 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 20 fps @ 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 | | Video Quality Adjustment | H.264: Compression level, target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR
MJPEG: VBR | | Maximum User Access | 10 users at unicast mode | | Audio I/O | Input:
Selectable (mic in / line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms
Output:
Line out (3.5 mm stereo mini jack)
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law / G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz G.726 : 16, 24, 32, 40 kb/s | | Audio Communication | Two-way audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | Edge Storage | microSD / SDHC / SDXC
Motion images recorded in the memory card can be downloaded | | Application Programming Interface | ONVIF Profile S, HTTP API v2.0, SVNP 1.2 | | Web Viewer | Supported OS: Windows XP / Vista / 7 / 8, Mac OS X 10.7
Supported Browser: Microsoft Internet Explorer (version 11, 10, 9, 8), Mozilla Firefox (version 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9), Google Chrome (version 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15), Apple Safari (version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) | | CMS | SmartViewer, SSM | | | | IP Rating | IP66 | | Vandal Resistant | IK10 | | Operating Temperature / Humidity | -40 to 131°F (-40 to 55°C)/ less than 90% RH Start Up: Over -31°F (-35°C) | | | | Input Power | 24 VAC ±10%, 12 VDC ±10%, PoE (IEEE 802.3af class 3) | | Power Consumption | Maximum: 11.5 W (12 VDC)
Maximum: 12.95 W (PoE, class 3)
Maximum: 14.2 W (24 VAC) | | | | Material | Aluminum | | Dimensions (Ø x H) | 6.3 x 4.7" (16 x 11.9 cm) | | Weight | 2.16 lb (0.98 kg) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 10.3 x 9.5 x 8.0" |
