User Manual for Hanwha Techwin Beyond Series SCD-5083 1280H Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin Beyond Series SCD-5083 1280H
- Product category: Wired Analog & HD Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired Analog & HD Cameras
|
User manual for the Hanwha Techwin Beyond Series SCD-5083 1280H contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

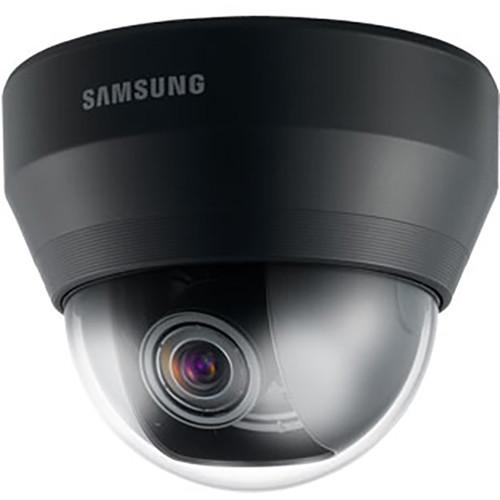

Product description The black Beyond Series SCD-5083 1280H Dome Camera from Samsung uses a 1.3MP 1/3" CMOS sensor to capture images at up to 1000 TVL resolution. The high sensitivity sensor and removable IR cut filter help capture clear images in low-light scenes. Its 2.8-10.5mm varifocal lens has a f/1.2 aperture and a wide 91.5-27.7° horizontal field of view to monitor large areas (depending on positioning). This camera features a BNC coax connection with Pelco-C (coaxitron) compatibility. - 1.3MP 1/3" progressive-scan CMOS sensor captures video in 1000 TVL resolution
- 2.8-10.5mm varifocal lens with f/1.2 aperture
- IR cut filter for day/night function
- Operates on both 24 VAC and 12 VDC (available separately)
In the Box Hanwha Techwin Beyond Series SCD-5083 1280H Dome Camera (Black) 2 x Screws Mounting Template Video Output Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin Beyond Series SCD-5083 1280H Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCD-5083B Specs | | | Imaging Device | 1.3 MP 1/3" progressive scan CMOS sensor | | Pixels | Total: 1312 x 1069
Effective: 1305 x 1049 | | Synchronization | Internal | | Frequency | H: 15.734 kHz / V: 59.94 Hz | | Horizontal Resolution | Color / B&W: 1000 TVL | | Min. Illumination | Color:
0.03 lux (f/1.2, 50 IRE), 0.001 lux (1 sec, f/1.2, 50 IRE)
0.01 lux (f/1.2, 30 IRE), 0.0003 lux (1 sec, f/1.2, 30 IRE)
B&W:
0.003 lux (f/1.2, 50 IRE), 0.0001 lux (1 sec, f/1.2, 50 IRE)
0.001 lux (f/1.2, 30 IRE), 0.00003 lux (1 sec, f/1.2, 30 IRE) | | S/N Ratio | 52 dB (AGC off, weight on) | | Video Output | CVBS : 1.0 Vp-p, 75 Ohms, composite | | | | Focal Length | 2.8-10.5mm varifocal | | Optical Zoom | 3.8x | | Maximum Aperture | f/1.2 | | Angular Field of View | Horizontal: 91.5-27.7°
Vertical: 68.3-20.8° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | DC auto iris | | Mount Type | Board-in | | | | On Screen Display | English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian, Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese | | Camera Title | Off / On (15 characters displayed) | | Day & Night | Auto (electronic) / color / B&W | | Backlight Compensation | Off / user BLC / HLC | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (off / on) | | Digital Noise Reduction (DNR) | SSNR IV (off / on) | | Defog | Off / auto / manual | | Purple Fringe Reduction | Off / low / middle / high | | Digital Image Stabilizer | Off / on | | Tamper Detection | Off / on | | Motion Detection | Off / on | | Intelligent Video Analytics | Fence, appear/disappear, counting (off / on) | | Privacy Masking | Off / on (24 programmable zones with 4 points polygonal masking) | | Gain Control | Off / low / middle / high | | White Balance | ATW / outdoor / indoor / manual / AWC / mercury (1800-10500K) | | Electronic Shutter Speed | 1 to 1/12,000 s | | Digital Zoom | Off / On (1-16x) | | Reverse | Off / H-rev / V-rev / HV-rev | | Profile | Basic, day/night, backlight, ITS, indoor, user | | Alarm | 1 out | | Communication | Coaxial control (SPC-300 compatible) | | Protocol | Coaxial: Pelco-C (Coaxitron) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Relative Humidity | < 90% | | | | Input Voltage | Dual 24 VAC and 12 VDC ±10%) (available separately) | | Power Consumption | 5.6 W maximum | | | | Material | Aluminum and plastic | | Compliance | FCC, cUL US, CE | | Dimensions (Ø x H) | 4.72 x 4" (12 x 10.2 cm) | | Weight | 1.2 lb (0.54 kg) |
