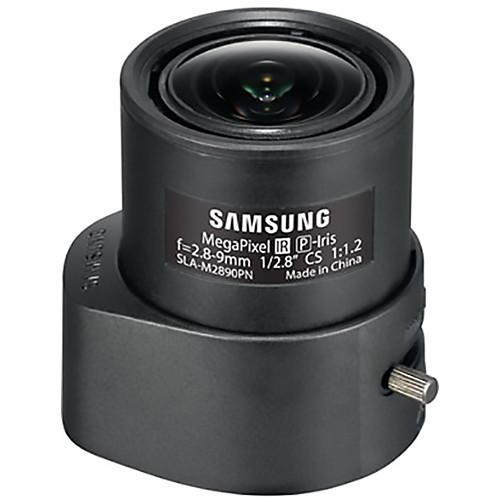

User Manual for Hanwha Techwin CS-Mount 2.8-9mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin CS-Mount 2.8-9mm Varifocal Lens
- Product category: Lenses Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Lenses
|
User manual for the Hanwha Techwin CS-Mount 2.8-9mm Varifocal Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The CS-Mount 2.8-9mm Varifocal Lens from Samsung features a 3MP 1/2.8" CCD sensor to capture high-quality video. The lens has a wide f/1.2 aperture for brighter video and images. This P-iris lens has an auto iris function driven by a stepping motor. The lens is aimed at sharp, crisp images and exposure accuracy under even adverse lighting conditions. The iris auto-close function protects imagers and optical filters from extreme highlights when the power is off. - 7.52mm back focal length in air
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin CS-Mount 2.8-9mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SLA-M2890PN Specs | Sensor Size | 1/2.8" | | Focal Length | 2.8-9mm | | Maximum Resolution | 3 MP | | Maximum Aperture Ratio | 1:1.2-360 | | Image Format | 0.2 x 0.15" (5.12 x 3.84 mm) maximum
Diameter: 0.26" (6.7 mm) | | Field of View | Diagonal 134.2 to 42.7°
Horizontal: 104.2 to 33.7°
Vertical: 77.2 to 25.3° | | Operation | Iris: Auto f/1.2-360
Focus: Manual 0.98' (0.3 m)
Zoom: Manual 2.8-9mm | | Iris Type | P-iris | | Back Focal Length | 7.52 mm in air | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS-mount | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 1.77 x 2.03 x 2.48" (45.0 x 51.5 x 63 mm) | | Weight | 0.18 lb (82 g) |
