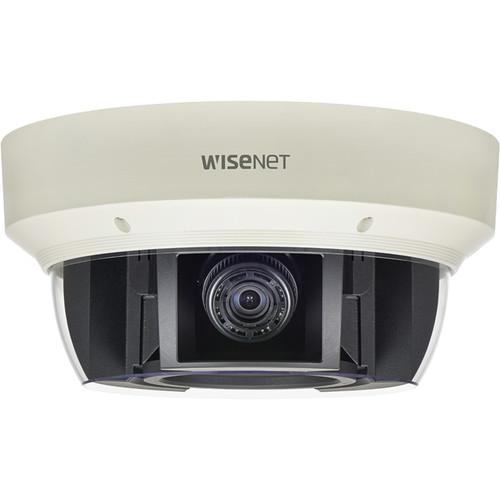

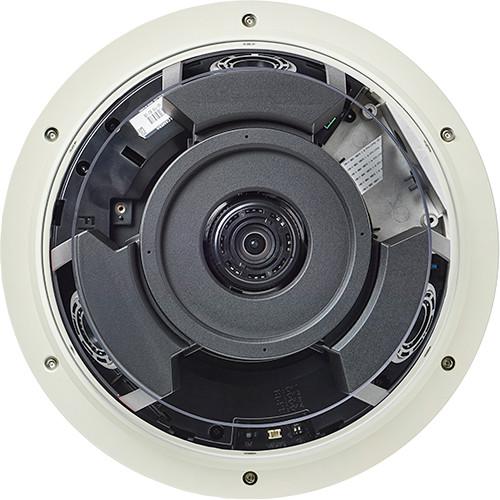

Product description The ivory PNM-9081VQ 20MP Outdoor 4-Sensor 360° Network Dome Camera from Hanwha Techwin is a multi-sensor camera that uses four 1.8" progressive scan CMOS sensors to capture 2560 x 1920 resolution video per sensor at 30 fps, for a total resolution of 20MP. An IR cut filter enables day and night functionality. The camera is equipped with four 3.6-9.4mm motorized varifocal lenses that each provide a 102.5 to 38.7° horizontal field of view, allowing you to record 360° video. Four onboard memory card slots accept microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This multi-sensor camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism. - 360° multidirectional 4-sensor camera
- Four 3.6-9.4mm motorized varifocal lenses
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- Unicast and multicast streaming
- Up to twenty users in unicast mode
- Lens distortion correction
- 1.64' minimum object distance
- DC auto iris (precise iris)
- Focus control includes simple focus, along with manual and remote control via network
- Camera pivots horizontally ±30° in quad mode and ±60° in center mode
- Camera pivots vertically in quad mode from 10 to 41°, and in center mode from 10 to 41° & 10 to 90° (CH2/center)
- Camera rotates ±90° in quad and center modes
- 120 dB wide dynamic range
- Highlight compensation (masking, dimming)
- White balance modes include ATW, AWC, manual, indoor, and outdoor (mercury & sodium included)
- Contrast enhancement and level adjustment
- 2D-DNR and 3D-DNR (SSNRV)
- Flip, mirror, and hallway view (90 and 270°)
- Digital image stabilization with built-in gyro sensor
- BNC video output for installation
- Motion detection for up to 8 polygonal zones
- Privacy masking for up to 32 polygonal zones
- Intelligent video analytics include tampering, loitering, directional detection, defocus detection, fog detection, virtual line, enter/exit, (dis)appear, and motion detection
- Alarm triggers include alarm input, motion detection, video analytics, network disconnect, and microSD card error
- Alarm events include file upload via FTP, email, notification via email, local storage (microSD card) recording at event triggers, and external output
- Compatible with Windows 7, 8 & 10, Mac OS X 10.10, 10.11 & 10.12, Chrome 54, Microsoft Edge 38, Firefox 49 (Windows 64-bit only), Safari 9 (Mac OS X only), Internet Explorer 11, and SmartViewer
- Camera title settings in English and Chinese
- FCC, cUL, and CE certified
In the Box Hanwha Techwin PNM-9081VQ 20MP Outdoor 4-Sensor 360° Network Dome Camera Monitor Testing Cable Power Terminal Block L Wrench Power Cable Alarm Cable Cable Bush 4 x Tapping Screws 4 x Plastic Anchors 4 x Machine Screws Card-Type Moisture Absorbent Drill Bit Hi-PoE Injector Power Cord Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin PNM-9081VQ 20MP Outdoor 4-Sensor 360° Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PNM-9081VQ Specs | | | Sensor | 4 x 6 MP 1/1.8" CMOS | | Focal Length | 3.6 to 9.4mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 2.6x
Digital: 24x | | Lens Field of View | Horizontal: 102.5 to 38.7°
Vertical: 74.2 to 29°
Diagonal: 135.5 to 48.6° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.07 Lux
B&W: 0.007 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | Camera Angle Adjustment | Horizontal: -30 to 30°
Horizontal: -60 to 60°
Vertical: 10 to 41°
Vertical: 10 to 90° | | | | Streaming Resolution | 2560 x 1920 at 30 fps Per Sensor | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 40 Streams | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S, SUNAPI (HTTP API) | | Analytics | Tampering
Loitering
Directional Detection
Defocus Detection
Fog Detection
Virtual Line
Enter/Exit
(Dis)Appear
Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Pixel Counter | | | | Windows OS Support | Windows 7, 8, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | microSD (Up to 256 GB) 4 x microSD Card Slots | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC | | Video Management Software | SmartViewer | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | DC, PoE 802.3bt (60 W) | | Power Consumption | DC: 28.8 W
PoE: 33.6 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
