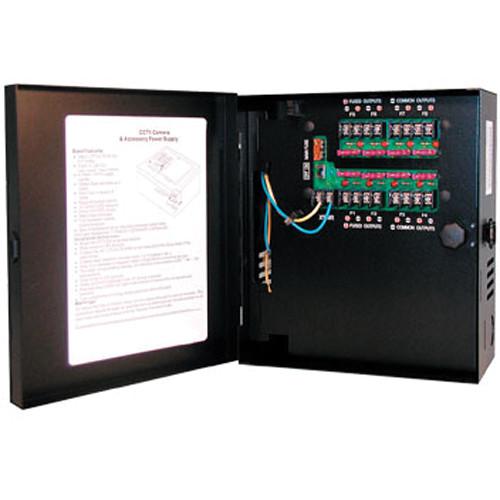

User Manual for Hanwha Techwin PWR-24AC-4-4UL 4-Camera 24VAC 4A Power Supply Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin PWR-24AC-4-4UL 4-Camera 24VAC 4A
- Product category: Power Supplies Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Power Supplies
|
User manual for the Hanwha Techwin PWR-24AC-4-4UL 4-Camera 24VAC 4A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The Samsung PWR-24AC-4-4UL 4-Camera 24VAC 4A Power Supply is a CCTV power center engineered to manage/remote camera and accessory power requirements. This distribution module is designed with four individually-fused outputs for powering up to four CCTV cameras and accessories. It provides 24VAC via distribution to four fused outputs with a total of 4A continuous supply current. It is housed in a lockable heavy-gauge metal enclosure. - Convenient screw and terminal and fuse access
- Individual LED's for each fused output
- Double coated polyurethane finish
- Multiple knockouts to accommodate various wiring configurations
- Lockable heavy-gauge metal enclosure
- Uses easy-to-find automotive-style fuses
- Maintains camera synchronization
- Includes transformer and spare fuses
In the Box Hanwha Techwin PWR-24AC-4-4UL 4-Camera 24VAC 4A Power Supply Spare Fuses Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin PWR-24AC-4-4UL 4-Camera 24VAC 4A Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PWR-24AC-4-4UL Specs | Input | 115 VAC 50 / 60 Hz; 0.9 A | | Output | 3 A
Total: 4 A 100 VA supply current at 70°F (21.1°C) | | Fuse | 5 A | | Number of Outputs | 4 x 24 VAC individually fused output | | Transformer | 2 x 110 /24 VAC, 175 VA | | Dimensions (H x W x D) | Enclosure: 10.0 x 9.0 x 4.5" (254.0 x 228.6 x 114.3 mm) |
