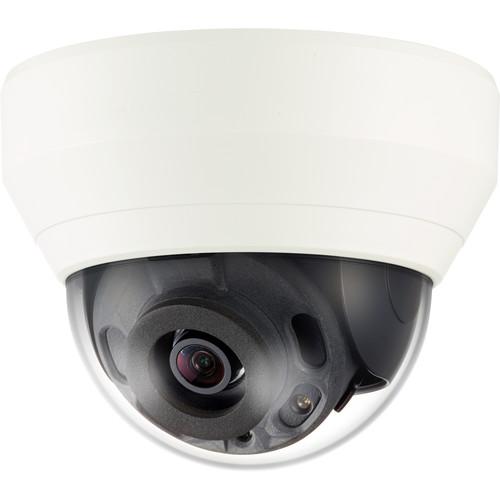

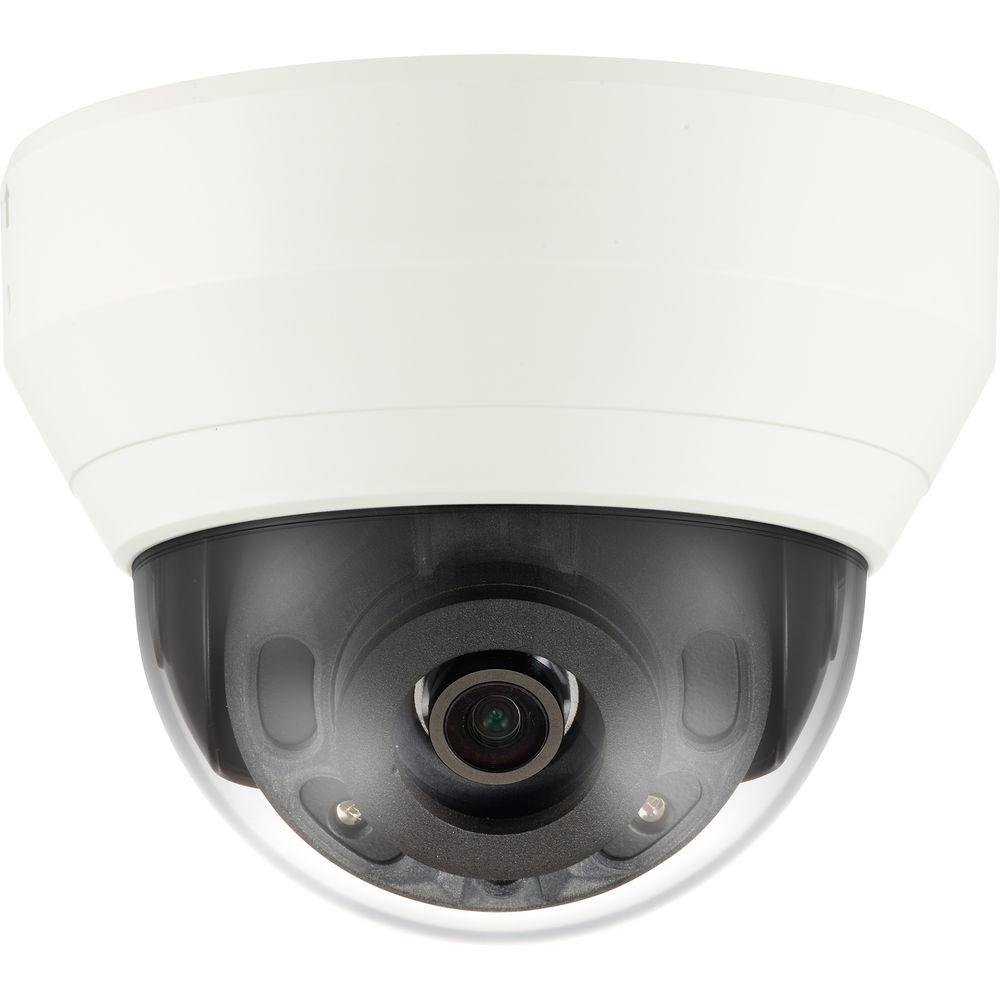

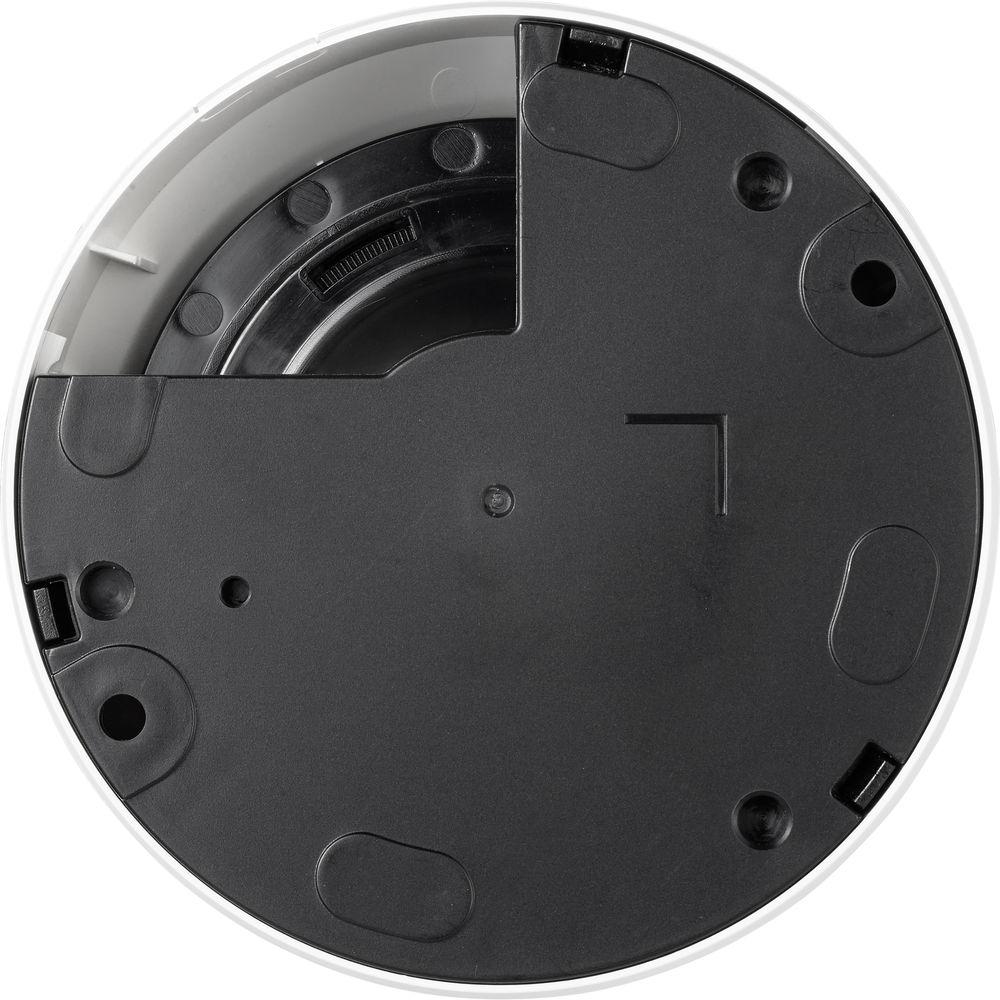

Product description The Q Series 2MP Network Dome Camera with 3.6mm Lens and Night Vision from Samsung has a 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps during the day or night, thanks to built-in IR LEDs. Its 3.6mm lens has a 102.44° diagonal field of view to monitor medium-sized areas, while a built-in microphone picks up nearby audio for a complete surveillance setup. Store video locally onto a microSD card up to 128GB (available separately). The camera is housed in an IK08-rated enclosure to help protect it from impact and vandalism. - 2MP CMOS sensor captures 1080p video at up to 30 fps
- H.265 and H.264 MJPEG codec supported with multiple streaming
- Built-in 3.6mm fixed lens has a 102.44° diagonal field of view
- IR LEDs for night vision up to 65'
- Motion, tampering, and defocus detection
- Lens Distortion Correction (LDC) support
- IK08-rated for vandal resistance
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin Q Series 2MP Network Dome Camera with 3.6mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QND-6020R Specs | | | Imaging Device | 2.19 MP 1/2.9" progressive scan CMOS sensor | | Total Pixels (H x V) | 2000 x 1121 | | Effective Pixels (H x V) | 1984 x 1105 | | Minimum Illumination | Color: 0.15 lux
B&W: 0 lux (IR LED on) | | | | Focal Length (Zoom Ratio) | 3.6mm | | Maximum Aperture Ratio | f/1.8 | | Angular Field of View (D/V/H) | Horizontal: 86.48°
Vertical: 46.22°
Diagonal: 102.44° | | Lens Type | Fixed | | Mount Type | Board type | | | | Pan / Tilt / Rotate | 0 to 350° / 0 to 67° / 0 to 355° | | | | IR LED Range | Up to 65.6' (20 m) | | Camera Title | Off / On (display up to 20 characters per line)
W/W: English, numeric, special characters
China: English, numeric, special, Chinese characters
Common: Multi-line (maximum 5), color (gray, green, red, blue, black, white), transparency, auto scale by resolution | | Day & Night | Mechanical IR cut filter | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNR (Off / On) | | Motion Detection | Off / On (4 x polygonal zones) | | Privacy Masking | Off / On (6 x rectangular zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Lens Distortion Correction | Off / On (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker | | Flip / Mirror | Flip / Mirror / Hallway view | | Intelligent Video Analytics | Motion detection with metadata, tampering, defocus detection | | Alarm I/O | 1 x input, 1 x output | | Alarm Triggers | Motion detection, tampering detection, microSD card error, NAS error, alarm input, defocus detection | | Alarm Events | File upload via FTP and email, local storage recording at event, notification via email, external output | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | RJ45 10/100Base-T | | Video Compression Format | H.265, H.264, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 | | Frame Rate | H.265 / H.264: Maximum 30 fps at 2 MP all resolutions, MJPEG: 15 fps | | Smart Codec | WiseStream | | Video Quality Adjustment | H.265/H.264: Target bitrate level control, MJPEG: Quality level control | | Bitrate Control Method | H.265/H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio I/O | Built-in microphone | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24, 32, 40 kBps | | Audio Communication | Uni-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Max. User Access | 6 users at unicast mode | | Storage | microSD/SDHC/SDXC up to 128 GB (available separately), NAS
Motion images recorded onto the microSD card can be downloaded
Manual recording at local computer | | Application Programming Interface | ONVIF Profile S and G, SUNAPI (HTTP API) | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported Operating Systems: Windows 7, 8.1, 10 and Mac OS X 10.9, 10.10, 10.11
Plug-in web viewer
Supported Browsers: Google Chrome 47, MS Edge 20
Plug-in free web viewer
Supported Browsers: MS Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Management Software | Central: SmartViewer | | | | Input Voltage | PoE (IEEE802.3af, Class3), 12 VDC | | Maximum Power Consumption | PoE: 6.5 W
12 VDC: 5.43 W | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | < 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | < 90% RH | | | | Material | Plastic | | Dimensions (Ø x H) | 4.3 x 3.4" (110 x 86 mm) | | Weight | 0.64 lb (0.29 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.8 x 5.8 x 4.7" |
