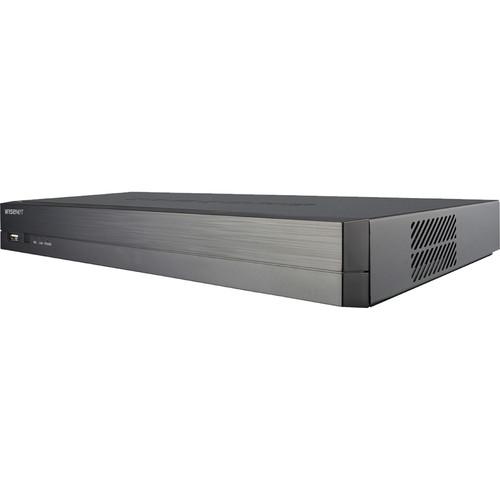

User Manual for Hanwha Techwin QRN-810 8-Channel 8MP NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin QRN-810 8-Channel 8MP NVR
- Product category: Network Video Recorders (NVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Network Video Recorders (NVRs)
|
User manual for the Hanwha Techwin QRN-810 8-Channel 8MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Stream and record up to eight video channels with the QRN-810 8-Channel 8MP NVR from Hanwha Techwin, at resolutions up to 4K. The recorder comes pre-installed with a 4TB HDD, which can be replaced with an HDD of up to 6TB (available separately) to accommodate applications that call for a larger internal capacity. External storage options include PCs via internet connection, network servers, USB storage devices, and eSATA devices. WiseStream H.265/H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.
The NVR enables simultaneous live viewing and playback of up to eight channels at resolutions up to 8MP via its HDMI and VGA ports. Up to eight channels can be simultaneously recorded at full frame rate 8MP resolution with an incoming bandwidth of 100 Mb/s. The NVR supports two-way audio communication. Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices. - HDMI and VGA video outputs
- Supports smartphone remote monitoring via P2P
- Provides smartphone event alarm
In the Box Hanwha Techwin QRN-810 8-Channel 8MP NVR with 4TB HDD Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin QRN-810 8-Channel 8MP NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QRN Series Specs | | | Video Inputs | Up to 8 channels | | Video Resolution | CIF to 8 MP | | Protocols | Samsung, ONVIF | | Interface | HDMI
VGA | | Resolution | Life Performance:
8 MP at 60 fps
5 MP at 90 fps
3 MP at 120 fps
2 MP at 240 fps
720p at 240 fps
D1 at 240 fps | | Multi-Screen Display | Live on Local Monitor: 1/2V/3V/4/6/8/auto sequence
Live on Web: 1/4/8/auto sequence | | | | Operating System | Embedded Linux | | Recording Compression | H.265, H.264, MJPEG | | Recording Resolution | CIF to 8 MP | | Bandwidth | Recording: 100 Mb/s
Transmission: 128 Mb/s | | Recording Mode | Manual, schedule (continuous/event) & event (pre/post) | | Event Trigger | Alarm input x 4, video loss & camera event (sensor, MD, video analytics, defocus) | | Event Action | Email, PTZ preset, alarm out, buzzer, monitor out | | Playback | 32 Mb/s, 8 channels simultaneously
Resolution: CIF to 8 MP | | User Limit | 3 users (1 local, 3 remote) | | Search Modes | Time/date (calendar), event log list, text search (POS, ANPR), ARB search, smart search (virtual line with direction, enter/exit) | | Playback Control | Fast/slow, forward/backward, move one step up/down | | Internal HDD | 1 SATA port, capacity up to 6 TB
4 TB pre-installed | | External HDD | eSATA/iSCSI storage | | Video File Backup | USB: BU, EXE
Web/CMS: JPEG, AVI | | Sensor | 4 x inputs (NO)
3 x outputs (NO/NC) | | Audio | 8-channel input (network)
1 x RCA, 1-channel output | | Audio Compression | G.711, G.726, AAC (16/48 kHz) | | Audio Communication | 2-way | | | | Network Function | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (server, client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (server, client) | | DDNS | Hanwha Security DDNS | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4, IPv6 | | Security | IP address filtering, user access log, 802.1x authentication, encryption | | Language | GUI/Web: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (simplified), Japanese, and Thai | | OS Supported | Windows 7, 8, 10
Mac OS X 10.8, 10.9, 10.10, 10.11 | | Supported Web Browsers | Non-Plugin Webviewer: Google Chrome 47, MS Edge 20
Plugin Webviewer: Microsoft Internet Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Viewer | Software Type: SSM, Webviewer, SmartViewer, Wisenet mobile
CMS Support: SDK/CGI (SUNAPI) | | | | Camera Setup | Register: Auto mode, manual mode
Setup Items
IP address; add profile edit; bit rate; compression; GOP; quality; camera MD setup; camera video setup (simple focus, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, shutter, SSDR, DIS); fisheye dewarping; hallway view setup; camera webpage | | Configuration | Setup wizard (date/time, network, auto camera configuration), P2P (QR code) | | Redundancy | ARB, yes | | PTZ Control | Via GUI, Webviewer
255 presets | | Smart Phone | OS: iOS & Android
Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
Live 8-Channel Control: Multi-profile support, playback (1 channel), event push
Maximum Remote Users: Search - 3; live unicast - 10; live multicast - 20 | | System Control | Mouse, IR remote control, web | | | | Indicator LEDs | Power status, LAN, record | | Connectors/Interfaces | 1 x VGA, video output
1 x HDMI, video output
1 x RCA, audio output
1 x WAN port (1 Gb/s)
4 x alarm inputs (terminal block)
3 x alarm outputs (terminal block)
1 x USB 3.0 on rear panel
1 x USB 2.0 on front panel
1 x reset switch
1 x VDC power | | | | System Log | Log List: 20,000 max. (for each system log & event log) | | | | Input Voltage | 12 VDC, 4 A | | Power Consumption | 9 W, maximum | | Working Environment | 32 to 104°F / 0 to 40°C
20-85% RH | | Rack Mount | 1 RU | | Dimensions | 17.3 x 8.2 x 1.9" / 30.0 x 20.9 x 4.8 cm | | Weight | 3.7 lb / 1.7 kg with 2 TB HDD |
