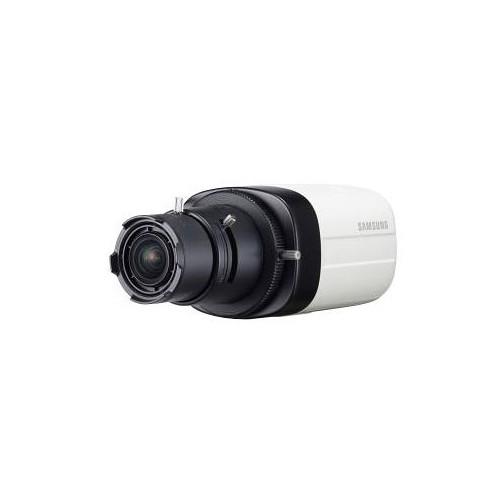

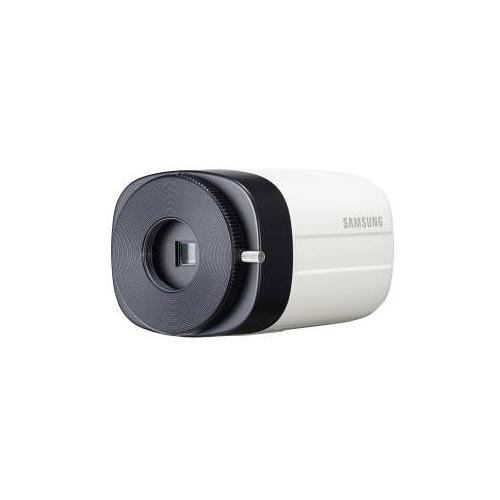

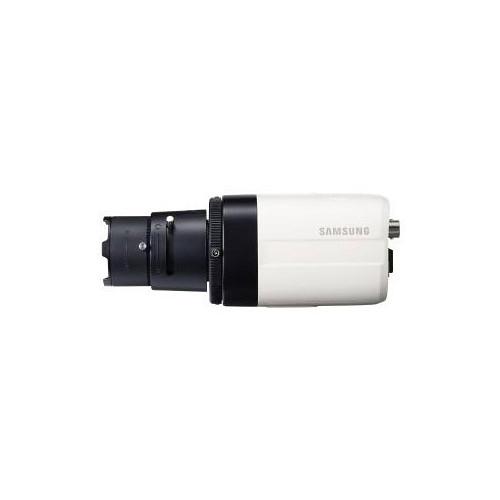

Product description The SCB-6003 from Hanwha Techwin uses a 1/3" progressive scan CMOS sensor to transmit 1080p video at 30 fps. It is equipped with a C/CS lens mount. An IR cut filter enables day and night functionality. The BNC video output provides selectable AHD and CVBS video signals. This box camera has a video transmission range up to 1640'. - Plug-and-play installation
- IR cut filter enables day and night functionality
- White balance modes include ATW, outdoor, indoor, manual, and AWC
- Digital wide dynamic range
- 52 dB S/N ratio with AGC off and weight on
- Motion detection for up to 4 zones
- Privacy masking for up to 4 zones (rectangular)
- Video transmission distance up to 1640'
- Coax and RS-485 interface to control supported protocols
- Dual 24 VAC and 12 VDC power
- FCC, cUL, and CE certified
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SCB-6003 1080p AHD Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCB-6003 Specs | Image Sensor | 2 MP 1/3" progressive scan CMOS sensor | | Resolution | 1920 x 1080 | | Total Pixels | 2.47 MP / 1956 x 1266 | | Effective Pixels | 2.12 MP / 1944 x 1092 | | Minimum Illumination | Color: 0.04 lux at f/1.2
B&W: 0.004 at f/1.2 | | S/N Ratio | 52 dB (AGC off, weight on) | | Video Output | BNC (AHD and CVBS selectable) | | Maximum Frame Rate | 30 fps at 1920 x 1080
30 fps at 1280 x 720 | | Lens Mount Type | C/CS | | OSD Languages | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | | Camera Title | Off/on, displayed in 15 characters | | Day & Night | Auto IR cut filter, external, color, B&W | | Backlight Compensation | Off, user BLC, HLC | | Wide Dynamic Range | Digital wide dynamic range | | Digital Noise Reduction | SSNRIV (off/on) | | Defog | Off, auto, manual | | Motion Detection | Off/on (4 zones) | | Privacy Masking | Off/in (4 zones, rectangular) | | Gain Control | Off, low, middle, high | | White Balance | ATW, outdoor, indoor, manual, AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1/12,000 to 1 sec | | Reverse | Off, H-rev, V-rev, HV-rev | | Profile | Basic, day & night, backlight, indoor, user | | Alarm | Output 1 (motion detection), external D/N 1 | | Remote Control Interface | Coaxial control, RS-485 | | Protocol | Coax:
NTSC/PAL: Samsung CCVC, Pelco C (coaxitron)
AHD: ACP (AHD coax protocol)
RS-485: Samsung-T/E, Pelco D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE | | Video Transmission Distance | 1640.42' / 500 m (75-5 coaxial cable) | | Input Voltage | Dual 24 VAC and 12 VDC ±10% | | Power Consumption | 4.2 W maximum | | Color | Black and ivory | | Material of Construction | Aluminum and plastic | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | Less than 90% RH | | Certifications | FCC, cUL, CE | | Dimensions (W x H x D) | 2.69 x 2.35 x 3.65" / 68.4 x 59.6 x 92.7 mm | | Weight | 0.39 lb / 175.5 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.5 x 4.1 x 2.9" |
