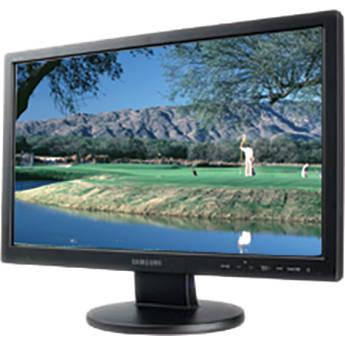

User Manual for Hanwha Techwin SMT-2233 22" 1080p LED Monitor Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin SMT-2233 22" 1080p LED
- Product category: Surveillance Monitors Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Surveillance Monitors
|
User manual for the Hanwha Techwin SMT-2233 22" 1080p LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The black MT-2233 22" 1080p LED Monitor from Samsung features a wide screen with 16:9 aspect ratio and supports up to 1920 x 1080 resolution. With a contrast ratio of 1000:1 and 5 ms response time, it is specifically designed for use in professional security systems. - High contrast ratio of 1,000:1
- Fast response time of 5 ms
- HDMI, VGA, and BNC video input
In the Box Hanwha Techwin SMT-2233 22" 1080p LED Monitor (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SMT-2233 22" 1080p LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SMT-2233 Specs | | | Type | LED | | Screen Size | 22.0" (55.9 cm) | | Maximum Resolution | 1920 x 1080 | | Brightness | 250 cd/m2 | | Contrast Ratio | 1,000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170°/160° | | Display Color | 16.7 million | | Response Time | 5 ms | | Video System | NTSC / PAL | | Panel Life | 30000 hours | | Filter Type | 3D comb filter | | | | Video | Type:
BNC (2 in / 2 out) | | VGA | Connector:
1 x Analog RGB 15-pin D-sub
Input Signal:
0.7 V p-p (±5%)
Available Formats:
720 x 400 at 70 Hz
640 x 480 at 60 Hz / 72 Hz / 75 Hz (VGA)
800 x 600 at 56 Hz / 60 Hz / 72 Hz / 75 Hz (SVGA)
1024 x 768 at 60 Hz / 70 Hz / 75 Hz (XGA)
1152 x 864 at 75 Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60 Hz / 75 Hz (SXGA)
1280 x 720 at 60 Hz
1600 x 1200 at 60 Hz / 70 Hz
1920 x 1080 at 50 Hz / 60 Hz | | HDMI | Connector:
1 x HDMI input (Type A connector)
Available Formats:
640 x 480p at 60 Hz
720 x 480i at 60 Hz
720 x 480p at 60 Hz
720 x 576i at 50 Hz
720 x 576p at 50 Hz
1280 x 720p at 50 / 60 Hz
1920 x 1080i at 50 / 60 Hz
1920 x 1080p at 50 / 60 Hz | | Audio | Connector:
2 x RCA type (2 stereo inputs)
Output Signal:
Speakers: 2 x 1 W | | Application Support | Remote controller | | | | Function | VESA DPM compatible | | Language | English, Spanish, French, German, Italian, Portuguese, Russian, Swedish, Turkish, Thai, Chinese, Japanese, Korean, Dutch, Danish, Arabic | | | | Input Voltage | 100 to 240 VAC (50/60 Hz) | | Power Consumption | Maximum 24 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90% (non-condensing) | | | | LCD Protection Glass | Yes | | VESA Mount | 100 x 100 mm | | Dimensions | With Stand: 20.28 x 15.43 x 8.56" (515.0 x 391.8 x 217.4 mm)
Without Stand: 20.28 x 12.44 x 2.36" (515.0 x 316.0 x 59.9 mm) | | Weight | 11.42 lb (5.18 kg) |
