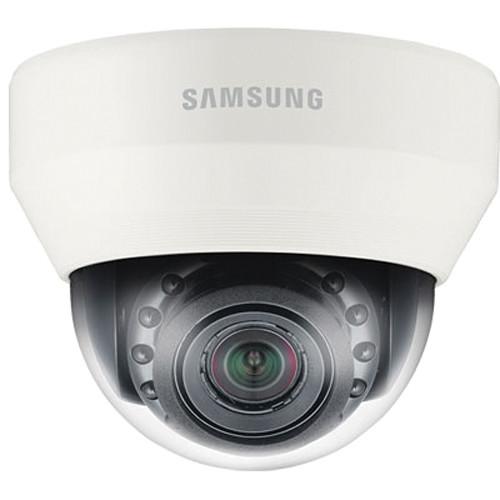

Product description The ivory SND-5084R 1.3 MP HD Day/Night PoE Network IR Dome Camera from Samsung features a 1/3" CMOS sensor with a 3 to 8.5mm varifocal lens. This camera supports panning from 0 to 354°, tilting from 0 to 67°, and rotation from 0 to 353°. This dual codec (H.264, MJPEG) camera supports multiple streaming. For application in dark conditions, this camera comes with 12 IR illuminators which provide viewing range of up to 98.4'. The camera features PoE, an SD memory card slot, and bi-directional audio support. -
- Maximum resolution of 1.3 MP (1280 x 1024)
- 3 to 8.5mm (2.8x) motorized varifocal lens
- Dual codec (H.264, MJPEG), multiple streaming
- Maximum 60 fps at all resolutions when used in H.264 mode
- 12 IR LEDs for night viewing
- PoE, SD memory card slot, and bi-directional audio support
- Wide Dynamic Range of 130 dB
- Comes with an infrared cut-removal (ICR) filter that makes it suitable for day/night applications
- Supports simple focus, P-iris, enhanced DIS (E-DIS), and defogging
- Multi-crop streaming
In the Box Hanwha Techwin SND-5084R 1.3 MP HD Day/Night PoE Network IR Dome Camera with 3 to 8.5mm Varifocal Lens (Ivory) Limited 3-Year Warranty Limited 30-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SND-5084R 1.3 MP HD Day Night PoE Network IR Dome Camera with 3 to 8.5mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-5084R Specs | | | Imaging Device | 1/3" 1.37 MP CMOS (IMX238) | | Total Pixels (H x V) | 1,312 x 1,069 | | Effective Pixels (H x V) | 1,305 x 1,049 | | Scanning System | Progressive | | Minimum Illumination | Color : 0.05 lux (1/30 sec, f/1.2, 50 IRE); 0.0008 lux (2 sec, 50 IRE), 0.005 lux (1/30 sec, f/1.2, 30 IRE)
B/W : 0 lux (IR LED on) | | S/N Ratio | 50 dB | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1280 x 1024, 1280 x 720p, 1024 x 768, 800 x 600, 640 x 480, and 320 x 240 | | Frame Rates | H.264: Maximum 60 fps at all resolutions MJPEG: Maximum 15 fps @ 1280 x 1024, 1280 x 720, 1024 x 768; maximum 30 fps @ 800 x 600, 640 x 480, and 320 x 240 | | Video Quality Adjustment | H.264: Compression level, target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (motorized V/F)/Manual for remote controlling via network | | Lens Mount Type | DC auto iris, P-Iris/board-in type | | Pan | 0° to 354° | | Tilt | 0° to 67° | | Rotate | 0° to 355° | | IR | LEDs: 12
Range: 98.4' (30.0 m) | | Camera Title | Off / On (displays up to 40 characters) | | Day & Night | Auto (ICR) / Color / BW / External / Schedule | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 130 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 zones with 4-sided polygon) | | Privacy Masking | Off / On (32 zones with 4-sided polygon) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear or disappear, audio detection, face detection | | | | Audio In | Selectable (mic in / line in / built in mic)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 KOhms | | Audio Out | Line out (3.5 mm mono jack)
Maximum Output Level : 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 KHz, and G.711 8 KHz
G.726: 16 Kb/s, 24 Kb/s, 32 Kb/s, and 40 Kb/s | | Audio Communication | Bi-directional audio | | | | Inputs and Outputs | 1 x Input
1 x Output | | Triggers | Motion detection, tampering, audio detection, face detection, video analytics, network disconnection, and alarm input | | Alarm Events | File upload via FTP and e-mail, notification via e-mail, TCP, local storage (SD/SDHC/SDXC) recording at network disconnected & event (alarm triggers), and external output | | | | Ethernet | RJ-45 (10/100BASE-T) | | Streaming Capability | Multiple streaming (up to 10 profiles) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, and Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | User Access | Maximum 15 users at unicast mode | | Edge Storage | microSD / SDHC / SDXC; motion images recorded in the SDXC/SDHC/SD memory card can be downloaded to NAS (network attached storage) | | Application Programming Interface | ONVIF profile S, SUNAPI, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (v8, 9, and 10)
Mozilla Firefox (v9 to v19)
Google Chrome (v15 to v25)
Apple Safari: v6.0.2 (Mac OS X 10.8 and 10.7) and 5.1.7 for Mac OS X only | | Software | Central Management: SmartViewer, SSM | | | | Material | Aluminum | | Operating Conditions | Temperature: 14 to 131°F (-10 to 55°C)
Humidity: Less than 90% RH | | Storage Conditions | Temperature: -22 to 140°F (-30 to 60°C) Humidity: Less than 90% RH | | Input Voltage | 12 VDC, PoE (IEEE802.3af) | | Power Consumption | 10.5 W maximum | | Dimensions | 5.2 x 4.3" (13.2 x 10.9 cm) | | Weight | 20.6 oz (585.0 g) |
