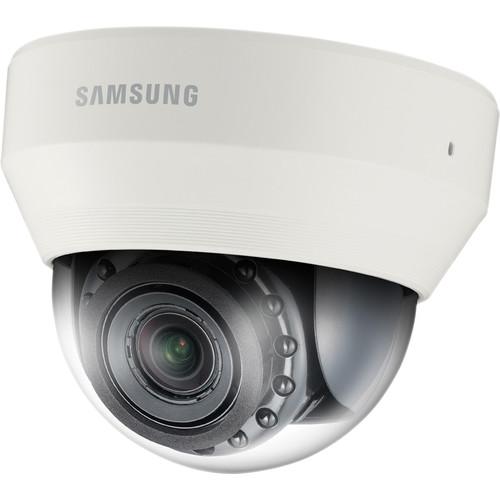

Product description The SND-7084R 3MP Network Dome Camera with Night Vision from Samsung features a 3MP 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at up to 30 fps. An IR cut filter and IR LEDs allow this camera to produce clear images in complete darkness from up to 82' away. The camera features a wide dynamic range to produce accurate images and a motorized varifocal lens for a wide range of monitoring.
The camera compresses video into H.264 and MJPEG codecs allowing for enhanced recording capacity and low bandwidth consumption. It also can support up to a 64GB microSD card (available separately) for local video storage from network disconnection and alarm triggers such as motion detection, tampering, audio detection, face detection, video analytics, and alarm inputs. - 3MP 1/2.8" progressive scan CMOS sensor captures video at 2048 x 1536 resolution at up to 30 fps
- 3-8.5mm varifocal lens with motorized simple focus functionality
- IR cut filter and IR LEDs for night vision up to 82'
- Built-in microSD card slot for on-board storage in the event of network failure or a triggered alarm
- Two-way audio with a built-in microphone picks up nearby sound
In the Box Hanwha Techwin SND-7084R 3MP Network Dome Camera with Night Vision Software CD L Wrench Monitor Testing Cable Alarm Cable Power Terminal Block Mounting Hardware Mounting Template Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SND-7084R 3MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-7084R Specs | | | Imaging Device | 3.2 MP 1/2.8" progressive scan CMOS sensor | | Total Pixels (H x V) | 2065 x 1565 | | Effective Pixels (H x V) | 2065 x 1553 | | Minimum Illumination | Color: 0.1 lux (f/1.2, 50 IRE), 0.06 lux (f/1.2, 30 IRE), 0.0017 lux (2 s, f/1.2, 30 IRE)
B/W: 0 lux (f/1.2, 50 IRE), 0 lux (f/1.2, 30 IRE), 0 lux (2 s, f/1.2, 50 IRE) | | S / N Ratio | 50 dB | | Pan / Tilt / Rotate | 0 to 354° / 0 to 67° / 0 to 355° | | Video Output | CVBS: 1.0 V p-p/75 Ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation DIP connector type | | | | Focal Length (Zoom Ratio) | 3-8.5mm (2.8x) motorized varifocal lens | | Maximum Aperture Ratio | f/1.2 | | Angular Field of View | Horizontal: 100.12° (wide) to 35.38° (tele)
Vertical: 73.76° (wide) to 26.58° (tele) | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus / manual, remote control via network (manual, simple focus, day & night) | | Lens Type | DC auto iris, P-iris | | Mount Type | Board-in | | | | Number of IR LEDs and Range | 12 x IR LEDs, up to 82' (25 m) | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Camera Title | Off / on (displays up to 45 characters) | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / on) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (Off / on) | | Image Stabilization | Off / on | | Defog | Off / auto / manual | | Motion Detection | Off / on (4 zones with 4 points polygonal) | | Privacy Masking | Off / on (32 zones with 4 points polygonal) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti flicker (1 to 1/12,000 s) | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, and face detection with metadata | | | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, network disconnection, video analytics, and alarm input | | Alarm Events | File upload via FTP and email, notification via email, TCP & HTTP
Local storage (microSD/SDHC/SDXC) recording at network disconnection, event (alarm triggers), external output | | | | Ethernet | RJ45 10/100Base-T | | IP | IPv4, IPv6 | | Supported Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security Access | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Maximum User Access | 15 users in unicast mode | | | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Bitrate Control Method | H.264: CBR or VBR
MJPEG: VBR | | Resolution | 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 30 fps @ 2048 x 1536, 1600 x 1200
Maximum 60 fps @ other resolutions
MJPEG: Maximum 10 fps @ 2048 x 1536
Maximum 15 fps @ 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Maximum 30 fps @ 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Smart Codec | Manual mode (Area-Based: 5), face detection mode | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | | | Audio I/O | Mic / line-in / built-in mic selectable via UI, line-out (mono, 1 V RMS) Supply Voltage: 2.5 VDC (4 mA), Input Impedence: 2 kOhms | | Audio Compression Format | G.711 u-law / G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Two-way audio | | | | Supported OS | Supported OS: Windows XP, Vista, 7, 8, 8.1
Mac OS X 10.7 | | Web Viewer | Supported Browser: Microsoft Internet Explorer (version 11-8), Mozilla Firefox (version 19-9), Google Chrome (version 25-15), Apple Safari 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7 (Mac OS X only) | | CMS | SmartViewer, SSM | | | | Input Power | 12 VDC, PoE (IEEE802.3af class 3) | | Power Consumption | Maximum: 10 W (12 VDC), 11 W (PoE) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Relative Humidity, Operating/Non-Operating | < 90% RH | | | | Application Programming Interface | ONVIF Profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 | | Memory Card Slot | microSD / SDHC / SDXC
Motion images recorded in the SDXC / SDHC / SD memory card can be downloaded (available separately) | | Material | Aluminum | | Dimensions (Ø x H) | 5.2 x 4.2" (132 x 108 mm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 6.378 x 6.299 x 5.276" |
