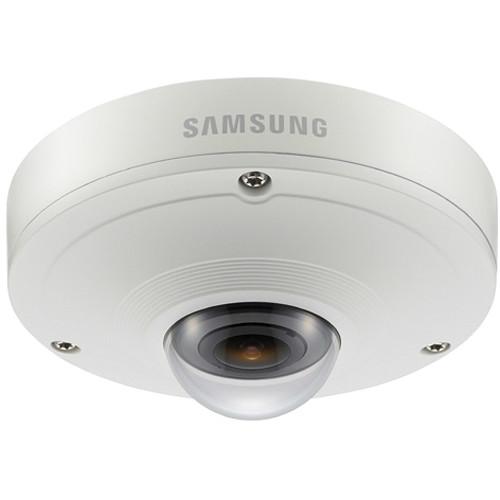

Product description The SNF-8010VM 6MP Outdoor Network Fisheye Camera from Samsung features a 1/1.8" CMOS sensor and a 1.14mm fisheye lens to capture 360° video at 2560 x 2048 resolution at up to 15 fps. It compresses video in H.264 or M-JPEG codecs to ensure high-quality recording and playback. The camera is housed in an IP66- and IK10-rated enclosure providing protection against water, dust, and impact. It is also EN50155 and EN61373 certified, making it suitable for use in railway applications. An M12 connector supports PoE to provide power and network connection in the included adapter cable. - 5MP 1/1.8" progressive-scan CMOS sensor captures 2560 x 2048 resolution video at up to 15 fps
- 1.14mm fisheye lens captures a 360° view of the monitored area
- microSD slot for up to 64GB microSD card (available separately)
- IP66- and IK10-rated for protection against water, dust, and impact
- EN50155 and EN61373 certified for use in railway applications
- M12 connector with PoE support
- ONVIF Profile S compliant
In the Box Hanwha Techwin SNF-8010VM 5MP Outdoor Network Fisheye Camera Software CD M12 to RJ45 Conversion Cable L Wrench Drill Bit Mounting Hardware Alignment Template Guides & Manuals yduwrfzzexttsytwvuvzfauqwuay Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNF-8010VM 5MP Outdoor Network Fisheye Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hanwha Techwin SNF-8010VM 5MP Outdoor Network Fisheye Camera can be downloaded in PDF format at the link stated below.
Technical parametersHanwha Techwin SNF-8010VM Specs | | | Sensor | 6 MP 1/1.8" progressive scan CMOS (IMX178) sensor | | Effective Pixels | 5.2 MP (2560 x 2048) | | Minimum Illumination | Color: 0.5 lux (f/2.5, 50 IRE), 0.2 lux (f/2.5, 30 IRE)
B/W: 0.05 lux (f/2.5, 50 IRE), 0.02 lux (f/2.5, 30 IRE) | | Focal Length | 1.14mm | | Lens Type | Fixed lens | | Mount Type | Board type (M12) | | Maximum Aperture Ratio | f/2.5 | | Angular Field of View | Horizontal: 187°
Vertical: 187°
Diagonal: 187° | | Minimum Object Distance | 1' (0.3 m) to infinity | | Resolution | Original View:
2560 x 2048, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480, and 320 x 240
Dewarped View:
Single Rectangle: 800 x 600, 640 x 480, and 320 x 240
Quad View: 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, and 320 x 240
Double Panorama: 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, and 320 x 240
Single Panorama: 2048 x 768, 1600 x 600, 1280 x 480, 1024 x 384, 800 x 300, 640 x 240, and 320 x 120 | | Frame Rates | M-JPEG:
Source View: Maximum 10 fps @ 2560 x 2048; maximum 15 fps @ 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768; maximum 20 fps @ 800 x 600, 720 x 480, 640 x 480, 320 x 240
Single Panorama View: Maximum 15 fps @ 2048 x 768, 1600 x 1200, 1280 x 480, 1024 x 384; maximum 20 fps @ 800 x 300, 640 x 240, 320 x 120
Double Panorama View: Maximum 15 fps @ 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768; maximum 20 fps @ 800 x 600, 640 x 480, 320 x 240
Quad View: Maximum 15 fps @ 1600 x 1200, 1280 x 960, 1024 x 768; maximum 20 fps @ 800 x 600, 640 x 480, 320 x 240;
Single Rectangle View: Maximum 20 fps @ 800 x 600, 640 x 480, 320 x 240
H.264:
Maximum 20 fps @ all resolutions | | Video Quality Adjustment | H.264: Target bitrate level control
M-JPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR
M-JPEG: VBR | | Focus Control | Manual | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), M-JPEG | | Camera Title | Off / On (displays up to 15 characters) | | Day & Night | True Day/Night | | Backlight Compensation | BLC | | Wide Dynamic Range | 60 dB (SSDR) | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR (2D+3D noise filter) (Off / On) | | Motion Detection | Off / On (4 each rectangle zones) | | Privacy Masking | Off / On (32 x rectangle zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (include mercury) | | Electronic Shutter Speed | 2 to 1/12,000 s | | Digital Zoom | 16x, digital PTZ (preset, group) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, audio detection | | Viewing | Composition
Camera: 360 source view, single panorama, double panorama, quad view, single rectangle
CMS: 360 source view, single panorama, double panorama, quad view, single rectangle, 360 source view + 3 rectangle, single panorama + 2 rectangle | | | | Audio In | Selectable (mic in/line in); Supply voltage : 2.5 VDC (4 mA); Input impedance : 2 kOhms approximately | | Audio Out | Line out (3.5 mm stereo mini jack) | | Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8kHz, G.711 8kHz
G.726: 16, 24, 32, and 40 kb/s | | Communication | Bi-directional | | | | Inputs and Outputs | 1 x input
1 x output | | Triggers | Motion detection, tampering, audio detection, alarm input, and network disconnection | | Alarm Events | File upload via FTP and email, notification via email, TCP and HTTP; Local storage (SD/SDHC/SDXC) recording at network disconnected & event (alarm triggers); External output | | | | Connector | M12 connector with PoE support | | Streaming Method | Unicast / multicast | | Maximum User Access | 10 users at unicast | | Streaming Capability | Multiple streaming (up to 5 profiles) | | IP | IPv4, IPv6 | | Protocol | TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Edge Storage | Supports up to 64 GB microSD card (available separately) | | Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) v2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP, Vista, 7, 8; Mac OS X 10.7
Supported Browsers: Microsoft Internet Explorer (v8 to 11); Mozilla Firefox (v9 to 19); Google Chrome (v15 to 25); Apple Safari (v6.0.2 for Mac OS X 10.8, 10.7, and v5.1.7 for Mac OS X) | | Software | Central Management: SmartViewer, SSM | | | | Certifications | UL, CE, FCC, RoHS, Gost, KC (EN-61373, EN-50155) | | Material | Aluminum with clear dome | | Rating | IP66- and IK10-rated | | Input Voltage | 12 VDC ±10%, PoE (IEEE802.3af class3) | | Power Consumption | Maximum 8.7 W at 12 VDC, maximum 10.3 W at PoE | | Operating Temperature | -22 to 131°F (-30 to 55°C) | | Operating Humidity | < 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | < 90% RH | | Dimensions | 5.74 x 2.46" (14.6 x 6.2 cm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 7.2 x 7.15 x 6.55" |
