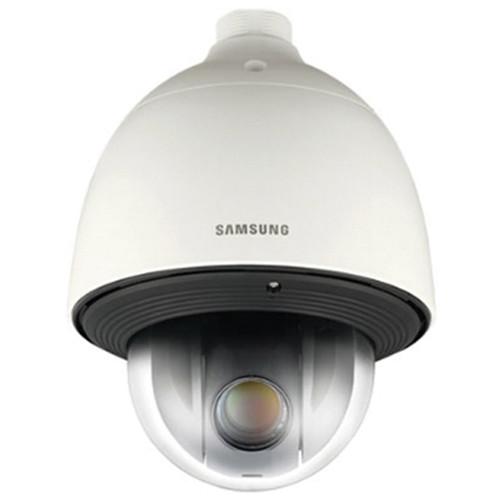

Product description The ivory SNP-5430H 1.3MP HD 43x Day/Night Network PTZ Dome Camera from Samsung features a 1/4" progressive scan CMOS sensor and a 3.5 to 150.5mm varifocal lens. It comes with 43x optical zoom and 16x digital zoom and has a minimum illumination of 0.5 lux (color) and 0.01 lux (B/W) at f/1.4, 50IRE. The camera comes with an infrared cut filter, which makes it suitable for day/night applications. This dual codec (H.264, MJPEG) camera supports multiple streaming. The camera features PoE+, SD memory card slot, and bi-directional audio support. The camera is rated IP66 (weatherproof) and IK10 (vandal-resistant) for use in outdoor environments. It also comes with a built-in heater. -
- Maximum resolution of 1.3MP (1280 x 1024)
- 16:9 HD (720p) resolution support
- 3.5 to 150.5mm (43x) optical zoom, 16x digital zoom
- H.264, MJPEG dual codec with multiple streaming to display videos in different resolutions and qualities simultaneously using different codecs
- Day & night (ICR), WDR (120 dB)
- PoE+, SD/SDHC/SDXC memory card slot
- Bi-directional audio support
- Web browser-based monitoring allows you to display the image in a local network environment using a Web browser
- Alarm: If an event occurs, the camera sends the relevant videos to the email address or the FTP server registered, saves them in an SD/microSD card or NAS, or sends the signal to the alarm output terminal
- Tampering detection to detect tempering attempts on video monitoring
- Motion detection function detects motion from the camera’s video input
- Intelligent Video Analytics to analyze video to detect logical events of specified conditions from the camera’s video input
- Face detection function detects faces from the camera’s video input
- Audio detection function detects sound louder than a certain level specified by user
- Auto tracking function traces an object which is moving on the screen
- Auto detection of disconnected network function detects network disconnection before triggering an event
- IP66 rated weatherproof and IK10 rated vandal-resistant
- ONVIF Profile-S conformant
In the Box Hanwha Techwin SNP-5430H 1.3MP HD 43x Day/Night Network PTZ Dome Camera with Built-In Heater (Ivory) Cable for Testing Monitor 3 x Hexagon Screw L Wrench Outdoor Installation Base Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNP-5430H 1.3MP HD 43x Day Night Network PTZ Dome Camera with Built-In Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNP-5430H Specs | | | Imaging Device | 1/4" Progressive Scan CMOS | | Total Pixels (H x V) | 1392 x 1076, 1.49 MP | | Effective Pixels (H x V) | 1368 x 1049, 1.43 MP | | Scanning System | Progressive | | Minimum Illumination | Color: 0.5 lux (f/1.4, 50IRE)
B/W: 0.01 lux (f/1.4, 50IRE)
Color: 0.3 lux (f/1.4, 30IRE)
B/W: 0.006 lux (f/1.4, 30IRE) | | | | S / N Ratio | 50 dB | | Video Out | CVBS: 1.0 Vpp / 75 ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation | | Focal Length (Zoom Ratio) | 3.5 to 150.5 mm (optical 43x) | | Maximum Aperture Ratio | f/1.4 (wide), f/4.9 (tele) | | Angular Field of View | H: 53.92° (wide) to 1.396° (tele)
V: 44.08°(wide) to 1.12° (tele) | | Minimum Object Distance | Wide: 4.6' (1.4 m), Tele: 6.2' (1.9 m) | | Focus Control | Auto / manual / one push | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | Pan Range | 360° endless | | Pan Speed | Preset: 700°/sec
Manual: 0.024 to 120°/sec | | Tilt Range | 210° (-15 to 195°) | | Tilt Speed | Preset: 700°/sec
Manual: 0.024 to 120°/sec | | Preset | 255 | | Preset Accuracy | ±0.2° | | Auto Tracking | Off / on | | | | Camera Title | Off / on (displayed up to 15 characters) | | Day & Night | Auto (ICR) / color / B/W | | Backlight Compensation | Off / BLC / HLC | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (off / on) | | Digital Noise Reduction (DNR) | SSNR (2D+3D noise filter) (off / on) | | Digital Image Stabilizer | Off / on | | Defog | Auto / manual / off | | Motion Detection | Off / on (4 rectangle zones) | | Privacy Masking | Off / on (32 zones of rectangle zone) | | | | White Balance | ATW / AWC / manual / indoor / outdoor / mercury / sodium | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec | | Digital Zoom | 16x | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, face detection | | Alarm I/O | 4 x Input / 2 x output (relay) | | Audio In | Selectable (Mic in/line in)
Supply Voltage: 2.5 VDC(4 mA)
Input Impedance: Approximately 2 kOhm | | Audio Out | Line out (3.5mm mono jack)
Maximum Output Level: 1 V RMS | | Serial Interface | RS-485 - Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and email, notification via email, TCP, and HTTP, local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (alarm triggers), external output | | | | Ethernet | RJ-45 (10/100BaseT) | | Video Compression Format | H.264 (MPEG-4 Part 10/AVC), Motion JPEG | | Resolution | 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 320 x 240 | | Maximum Frame Rate | H.264: Maximum 60 fps at all resolutions
Motion JPEG:
15 fps (maximum) @ 1280 x 1024, 1280 x 720, 1024 x 768
30 fps (maximum) @ 800 x 600 / 640 x 480 / 320 x 240 | | Smart Codec | Manual mode (Area-Based: 5)
Face detection mode | | Video Quality Adjustment | H.264: Compression level, target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio Compression Format | G.711 μ-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kb/s, 24 kb/s, 32 kb/s, 40 kb/s | | Audio Communication | Bi-directional | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Application Programming Interface | ONVIF Profile S, SUNAPI (HTTP API), SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Czech, Polish, Turkish, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS : Windows XP / Vista / 7 / 8 / 8.1, Mac OS X 10.7 / 10.8
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 32), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Apple Safari support for Mac OS X only | | Central Management | Software: SmartViewer, SSM | | | | CPU | Intel Core 2 Duo 2.6 GHz or higher (for using 1280 x 1024 @ 30 fps) Intel Core i7 2.8 GHz or higher (for using 1280 x 1024 @ 60 fps) Web Plug-in is optimized to SSE 4.1 Instruction Set | | Resolution | 1280 x 1024 pixels or higher (32-bit color) | | RAM | 2 GB or higher | | Supported OS | Windows XP / Vista / 7 / 8 / 8.1, MAC OS X 10.8, 10.7 | | Supported Browsers | Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 32), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
Note: Windows 8/8.1 is supported only in the Desktop mode. Neither a beta test version unlike the version released in the company website nor the developer version will be supported. It is recommended to connect to IPv6 in Windows 7. The camera does not support Internet Explorer Compatibility View settings. For Mac OS X, only the Safari browser is supported. | | Video Memory | 256 MB or higher
Note: If the driver of the video graphic adapter is not installed properly or is not the latest version, video may not be played properly. For a multi-monitoring system involving at least 2 monitors, the playback performance can be inferior depending on the system. It is advisable to use Intel Core 2 Duo 2.93 GHz or higher in a multi-browser environment. | | | | Type | SD card (not included) | | Capacity | 4 to 64 GB (a Sandisk or Transcend card is recommended) | | Recommended Speed | Class 6 or higher for frame rates below 30 fps
Class 10 UHS or higher for frame rates over 31 fps | | NAS | Recommended Specifications:
Capacity: 200 GB or higher (Synology and Netgear NAS recommended)
Simultaneous Access: One unit of NAS can accept a maximum of sixteen camera accesses If you use NAS equipment for purposes other than video saving, the number of accessible cameras may be reduced | | | | Input Voltage | 24 VAC ± 10%, PoE+ (IEEE802.3at, Class3) | | Power Consumption | 24 W maximum (heater off), 65 W maximum (heater on, 24 VAC) | | | | Operating Temperature | 24 VAC: -58 to 131°F (-50 to 55°C)
PoE+: -22 to 131°F (-30 to 55°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 24 VAC/PoE+: Approximately 90% | | Storage Humidity | Less than 90% RH | | Ingress protection | IP66 | | Weather / Vandal Resistance | IK10 | | | | Material | Plastic and metal | | Approvals | FC, cUL, CE, RoHS | | Dimensions (Ø x H) | 8.7 x 11.6" (22.0 x 29.4 cm) | | Weight | 7.5 lb (3.4 kg) |
