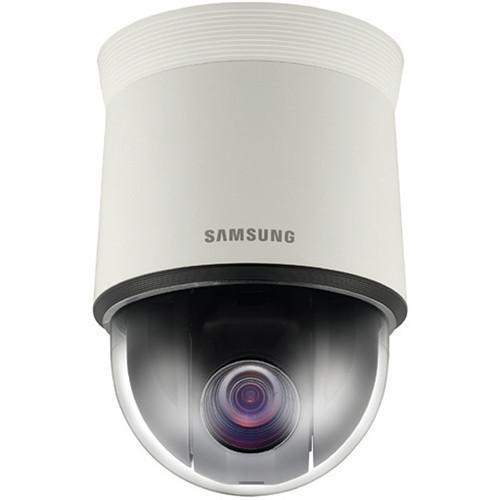

Product description The SNP-6320 2 MP H.264 Full HD 32x Network Indoor PTZ Dome Camera from Samsung features a 1/2.8" CMOS sensor that captures clear images in 1920x1080 resolution. The built-in 32x optical zoom lets you capture distant objects with accuracy. The camera is able to capture objects even in areas with illumination level as low as 0.03 lux (B&W). The IP66-rated enclosure allows you to install this camera even in adverse weather conditions. - Maximum resolution of 2MP 1920 x 1080
- Built-in 32x optical zoom lens (4.44 to 142.6mm), 16x digital zoom
- Minimum illumination: Color: 0.3 lux (1/30 sec, F1.6, 50IRE), B&W: 0.03 lux (1/30 sec, F1.6, 50IRE)
- H.264, MJPEG dual codec, multiple streaming
- Day & night (ICR), WDR (120 dB)
- Auto tracking, intelligent video analytics
- PoE+, SD memory card, bi-directional audio support
- IP66-rated weatherproof enclosure
In the Box Hanwha Techwin SNP-6320 2 MP H.264 Full HD 32x Network Indoor PTZ Dome Camera Limited 3-Year Warranty Brochure PDF 939.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNP-6320 2 MP H.264 Full HD 32x Network Indoor PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNP-6320 Specs | | | Sensor | 1/2.8" 2 MP Progressive Scan CMOS | | Total Pixels (H x V) | 1952 x 1236 (2.41 MP) | | Effective Pixels (H x V) | 1944 x 1224 (2.38 MP) | | Scanning | Progressive | | Minimum Illumination | Color: 0.3 lux (1/30 sec, f/1.6, 50 IRE)
BW: 0.03 lux (1/30 sec, f/1.6, 50 IRE) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1 Vpp at 75 Ω composite
704 x 480 (NTSC), 704 x 576 (PAL), for installation | | | | Focal Length | 4.44 to 142.6 mm | | Zoom Ratio | 32x | | Aperture Ratio | f/1.6 (Wide) / f/4.4 (tele) (maximum) | | Angular Field of View | Horizontal: 62.8° (wide), 2.23° (tele)
Vertical: 36.8° (wide), 1.26° (tele) | | Minimum Object Distance | Wide: 32.8' (10.0 m);
Tele: 4.9' (1.5 m) | | Focus Control | Auto / manual / one push | | Iris | DC auto iris | | Mount | Board-in type | | | | Range | 360° endless / 210° (-15 to 195°) | | Speed | Preset: 700°/sec, Manual: 0.024 to 120°/sec | | Preset | 255 | | Preset Accuracy | ±0.2 ̊ | | Auto Tracking | Off / On, schedule mode, auto tracking mask mode | | | | Camera Title | Off / On (displays up to 45 characters) | | Day & Night | Auto (ICR) / color / B/W / external / schedule | | Backlight Compensation | Off / BLC / HLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR III (2D+3D noise filter) (Off / On) | | Image Stabilization | Off / On | | Defog | Off / auto / manual | | Motion Detection | Off / On (4 rectangle zones) | | Privacy Masking | Off / On (32 zones for each rectangle zone) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 16x | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, face detection | | Alarm | 4 x Input
2 x Output (relay) | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, local storage (SD/SDHC/SDXC) recording at network disconnected & event (alarm triggers), external output | | | | Ethernet | RJ-45 (10/100 Base-T) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Frame Rate | H.264:
60 fps (maximum) at all resolutions
MJPEG:
15 fps (maximum) @ 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
30 fps (maximum) @ 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Codec | Smart codec | | Video Quality Adjustment | H.264: Compression level, target bit-rate level control
MJPEG: Quality level control | | Bit Rate | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in/Line in),
Max Output Level: 1 V RMS,
Supply Voltage: 2.5 VDC (4 mA),
Input Impedance: 2 kΩ | | Audio Out | Line out (3.5 mm stereo mini jack) | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Bi-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PP PoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | User Access | 15 users at unicast mode | | Memory Slots | SD/SDHC/SDXC memory slot
Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded | | Application Programming Interface | ONVIF Profile S & G, SUNAPI 2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP, Vista, 7, 8, and higher, Mac OS X 10.7 and higher
Supported Browser: IE 8.0 and higher, Mozilla FireFox v9.0 and higher, Google Chrome v15 and higher, Apple Safari (v6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) and higher | | | | Operating Temperature / Humidity | 14 to +131°F (-10 to +55°C), Less than 90% RH | | Storage Temperature / Humidity | -22 to +140°F (-30 to +60°C), Less than 90% RH | | Vandal Resistant | IK9 | | | | Input Voltage | 24 VAC, PoE+ (IEEE802.3at class3) | | Power Consumption | Maximum 22 W | | | | Material | Ivory / Plastic | | Dimensions (Ø x H) | Ø5.98 x 8.58" (152.0 x 218.0 mm) | | Weight | 4.19 lb (1.9 kg) | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 16.0 x 11.0 x 11.0" |
