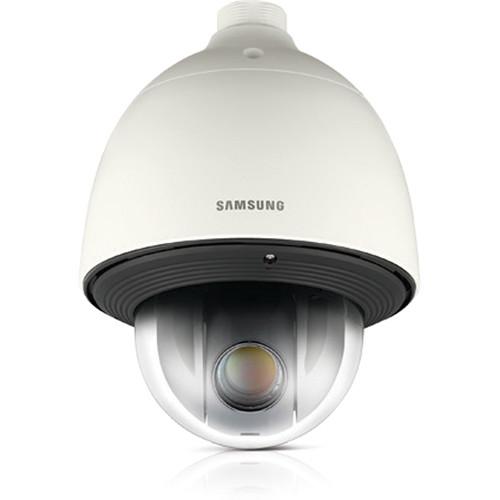

Product description The ivory finish SNP-6320H 2MP Full HD 32x Day/Night Network PTZ Camera from Samsung features a 1/2.8" progressive scan CMOS sensor and a 4.44 to 142.6mm varifocal lens. It comes with 32x optical zoom and 16x digital zoom and has a minimum illumination of 0.3 lux (color) and 0.03 lux (B/W). The camera comes with an infrared cut filter, which makes it suitable for day/night applications.This dual codec (H.264, MJPEG) camera supports multiple streaming. The camera features PoE+, SD memory card slot, and bi-directional audio support. The product is IP66, as well as IK9 rated, and comes in an aluminum body with a plastic sunshield. It also features a heater for operation in environments with extreme low temperatures. - Maximum resolution of 2MP (1920 x 1080)
- 32x optical and 16x digital zoom with 4.44 to 142.6mm varifocal lens
- Dual codec (H.264, MJPEG), multiple streaming
- Wide Dynamic Range of 120 dB
- PoE+, SD memory card slot, and bi-directional audio support
- Features auto tracking and intelligent video analytics
- Minimum illumination of 0.3 lux (color) and 0.03 lux (B/W) (1/30 sec, f/1.6, 50 IRE)
- Comes with an infrared cut-removal (ICR) filter that makes it suitable for day/night applications
In the Box Hanwha Techwin SNP-6320H 2MP Full HD 32x Day/Night PoE+ PTZ Network Camera with Heater (Ivory) Limited 3-Year Warranty Limited 30-Month Warranty Brochure PDF 939.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNP-6320H 2MP Full HD 32x Day Night PoE PTZ Network Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNP-6320H Specs | | | Sensor | 1/2.8" 2 MP Progressive Scan CMOS | | Total Pixels (H x V) | 1952 x 1236 (2.41 MP) | | Effective Pixels (H x V) | 1944 x 1224 (2.38 MP) | | Scanning | Progressive | | Minimum Illumination | Color: 0.3 lux (1/30 sec, f/1.6, 50 IRE)
BW: 0.03 lux (1/30 sec, f/1.6, 50 IRE) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1 Vpp @ 75 Ω composite
704 x 480 (NTSC), 704 x 576 (PAL), for installation | | | | Focal Length | 4.44 to 142.6 mm | | Zoom Ratio | 32x | | Aperture Ratio | f/1.6 (Wide) / f/4.4 (tele) (maximum) | | Angular Field of View | Horizontal: 62.8° (wide), 2.23° (tele)
Vertical: 36.8° (wide), 1.26° (tele) | | Minimum Object Distance | Wide: 32.8' (10.0 m);
Tele: 4.9' (1.5 m) | | Focus Control | Auto / manual / one push | | Iris | DC auto iris | | Mount | Broad-in type | | | | Range | 360° endless / 210° (-15 to 195°) | | Speed | Preset: 700°/sec, Manual: 0.024 to 120°/sec | | Preset | 255 | | Preset Accuracy | ±0.2 ̊ | | Auto Tracking | Off / On, schedule mode, auto tracking mask mode | | | | Camera Title | Off / On (displays up to 45 characters) | | Day & Night | Auto (ICR) / color / B/W / external / schedule | | Backlight Compensation | Off / BLC / HLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR III (2D+3D noise filter) (Off / On) | | Image Stabilization | Off / On | | Defog | Off / auto / manual | | Motion Detection | Off / On (4 rectangle zones) | | Privacy Masking | Off / On (32 zones for each rectangle zone) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 16x | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, face detection | | Alarm | 4 x Input
2 x Output (relay) | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, local storage (SD/SDHC/SDXC) recording at network disconnected & event (alarm triggers), external output | | | | Ethernet | RJ-45 (10/100 Base-T) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Frame Rate | H.264:
60 fps (maximum) at all resolutions
MJPEG:
15 fps (maximum) @ 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
30 fps (maximum) @ 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Codec | Smart codec | | Video Quality Adjustment | H.264: Compression level, target bit-rate level control
MJPEG: Quality level control | | Bit Rate | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in/Line in),
Max Output Level: 1 V RMS,
Supply Voltage: 2.5 VDC (4 mA),
Input Impedance: 2 kΩ | | Audio Out | Line out (3.5 mm stereo mini jack) | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Bi-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PP PoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | User Access | 15 users at unicast mode | | Memory Slots | SD/SDHC/SDXC memory slot
Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded | | Application Programming Interface | ONVIF Profile S & G, SUNAPI 2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP, Vista, 7, 8, and higher, Mac OS X 10.7 and higher
Supported Browser: IE 8.0 and higher, Mozilla FireFox v9.0 and higher, Google Chrome v15 and higher, Apple Safari (v6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) and higher | | | | Operating Temperature | PoE+: -22 to 131°F (-30 to 55°C)
24 VAC: -58 to 131°F (-50 to 55°C) | | Operating Humidity | PoE+: <90% RH with heater on
24 VAC: <90% RH with heater on | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | Less than 90% RH with heater on | | Ingress protection | IP66 rated | | Vandal Resistant | IK9 (IK10-rated protection when used with SHP-3701H Housing, available separately) | | | | Input Voltage | 24 VAC, PoE+ (IEEE 802.3 at class 3) | | Power Consumption | Heater Off: 26 W maximum
Heater On, 24 VAC: 60 W maximum | | | | Material | Aluminum housing with plastic sunshield | | Dimensions (Ø x H) | 8.66 x 11.56" (22.00 x 29.36 cm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 18.5 x 14.1 x 14.0" |
