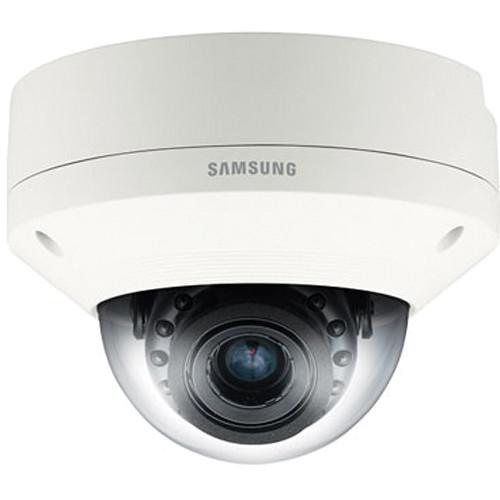

User Manual for Hanwha Techwin SNV-5084R Indoor Outdoor Day Night IP Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin SNV-5084R Indoor Outdoor Day
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin SNV-5084R Indoor Outdoor Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Use Samsung's SNV-5084R Indoor/Outdoor Day/Night IP Dome Camera as a stand-alone security solution, or with its ONVIF compliance easily integrate it into a larger surveillance system. The camera uses a 1/3" 1.37 MP CMOS image sensor with a motorized varifocus 3-8.5mm f/1.2 lens to capture video in up to 1280x1024 HD resolution at 60fps. Digital Noise Reduction (DNR) filters out unusable or corrupt data and delivers a clean and accurate image, with better clarity and sharpness versus cameras without it. The filtered images also improve motion-detection accuracy and use less memory space. Digital Wide Dynamic Range (WDR) provides backlight compensation for clear images where very bright and very dark areas are in the same shot - an important feature when used in outdoor applications.Multiple event systems can be used to trigger actions including video motion detection, external alarm contacts, video analytics, and tampering with the housing. When an event is detected, the camera can be set to activate single or multiple actions like recording to a specific local or remote location, recording at preset configurations with higher resolution or frame rates, or different media stream settings, triggering external devices, or sending automatic email notifications can be sentDesigned for outdoor use, the aluminum housing has a scratch- and corrosion-resistant finish with an IP66 rating for dustproof and weatherproof performance. The housing is also IK10 rated to be vandal-resistant. Twelve IR LEDs and an automatic mechanical IR cut filter deliver up to 100' night vision range, and a broad operating temperature range with a built-in heater allows it to be on duty 24/7/365. - Hardware
-
- 1/3" 1.37 MP CMOS image sensor
- 3-8.5mm f/1.2 motorized varifocal lens
- Field of view: 93.4-33.1° horizontal, 73.8-26.5° vertical
- Minimum focus distance: 1.6' (0.5m)
- 0-354° Pan, 0-67° Tilt, 0° ~ 355° Rotate
- Compatible with multiple power options: PoE, 12VDC, 24VAC
- Built-in microSD/HC/XC slot supports up to 64GB cards
- Audio-in and out for external microphones and speakers
- Integrated microphone
- Alarm In: One terminal to wire external appliances such as relays, door/window contacts, smoke/heat detectors, or wired into an alarm panel output
- Alarm out: Wire external sirens, lights, relays, or into an alarm panel input
- VMS Software
-
- Resolution 1280 x 1024 max, at up to 60fps
- H.264/MJPEG video, G.711/G.726 audio compression
- Up to 10 individually streaming profiles, customizable features including: compression, resolution, audio settings, bit and frame rates, and image overlay
- Intelligent video analytics: Tampering, Virtual line, Enter / Exit, Object appear/disappear, Audio detection, and Face detection with metadata
- ONVIF profile S, SUNAPI, SVNP 1.2
- Image vertical flip and horizontal mirror
- Instant snapshot from live-view screen
- Manually trigger alarm in/out from live-view screen
- Remote focus control
- Imaging Enhancements
-
- White balance: Adjusts the colors for accuracy based on lighting type and conditions
- Privacy mask: 32 configurable zones to block sensitive areas from the live-view and recording
- Digital image stabilization enhances overall image quality and improves memory usage
- 2D and 3D Digital noise reduction (DNR): Reduces image 'noise' to improve image quality, especially in low-light, and conserves file size and memory usage
- Wide dynamic range (WDR) and Backlight compensation: Enables objects in both bright and dark areas to be visible
- Contrast enhancement: Optimizes contrast to increase image detail and clarity
- Programmable camera title for forensic analysis, up to 40 characters
- Event
-
- Motion detection: An action is triggered when VMS detects motion. Four configurable zones with adjustable sensitivity
- Tampering: Triggers an action when the housing is moved, or the lens is defocused or blocked
- Audio detection: When enabled, an action is triggered when noise is detected. Adjustable sensitivity to avoid false alarms
- Video analytics: Internal or third-party analytics including facial/license plate recognition triggers an action
- Network disconnection: When network connection is lost an action can be triggered
- Alarm input: When connected external appliances such as door/window contacts, smoke/heat sensors, glass-break detectors are tripped an action is triggered. If wired to an alarm panel, an event can be tripped when the alarm panel is triggered
- Actions
-
- Single or multiple actions can be triggered by a single event
- File upload to remote location such as an NAS or NVR
- Automatic email notification with snapshot, video and/or audio clip
- Alarm out: When wired to external sirens, relays, or lights these are activated when an event happens. If wired to an alarm panel input, when an event occurs the panel can be tripped
- Store file to local Edge storage
- Outdoor Use
-
- Lightweight and corrosion-resistant aluminum housing
- Broad -40 to 131°F operating temperature with built-in heater
- IP66-rated weather and dustproof
- IK10 rated for vandal resistance
- 12 IR LEDs with a maximum night vision distance of 100'
- Remote Accessibility
-
- Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
- Supported Browser : Internet Explorer Firefox Chrome Safari
- Individual user name and passwords
- Customizable access by feature from live-view only to full administrative permissions
- Supported Languages
-
- English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
In the Box Hanwha Techwin SNV-5084R Indoor/Outdoor Day/Night IP Dome Camera Installer Software CD Allen Wrench Video Testing Cable Power Terminal Block Mounting Template Alarm Cable 5 x Screws 3 x Mounting Anchors 3 x Torx-Head Dome Screws Torx Drill Bit Power Cable Audio/Alarm Cable Cable Bushing Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNV-5084R Indoor Outdoor Day Night IP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNV-5084R Specs | Imaging Sensor | 1/3" 1.37 MP progressive-scan CMOS | | Compression | Video: H.264, Motion JPEG
Audio: G.711, G726 | | Resolution | 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240 | | Frame Rate | H.264:
60fps, max at all resolutionsMotion JPEG:
Max 15 fps at 1280 x 1024, 1280 x 720, 1024 x 768
Max 30 fps at 800 x 600, 640 x 480, 320 x 240 | | Lens | 3 - 8.5 mm, f/1.2 motorized varifocal
Field of view: Horizontal: 93.4 - 33.1°, Vertical: 73.8 - 26.5°
Minimum focus distance: 1.6' (0.5 m) | | Signal to Noise Ratio | 50 dB | | Minimum Illumination | Color : 0.05 lux
B/W : 0 lux (IR LED on) | | IR Illumination | 12 x IR LEDs
Range: 98' (30 m) | | Alarm Input / Output | Input: 1 x terminal
Output: 1 x terminal | | Audio In/Out | In: Composite plug for external mic/line in
Out: 3.5mm jack for external speakers | | Edge Storage | micro SD/HC/XC card, up to 64 GB | | Network Connection | 1 x RJ-45 10/100 | | Network Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Supported Languages | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Power Requirement | 12 VDC, 24 VAC, Power-over-Ethernet IEEE802.3af
Consumption: Max. 12.95 W (Heater on), Max. 11 W (Heater off) | | Environmental | Operating temperature: -40 to 131°F (-40 to 55°C)
Storage temperature: -22 to 140°F (-30 to 60°C)
Humidity: Less than 90% non-condensing | | Weather / Vandal Resistance | IP66-rated, dust and weatherproof
IK10-rated, vandal resistant | | Dimensions | 6.3 x 4.7" (16.0 x 11.9 cm) | | Weight | 2.2 lb (985 g) |
