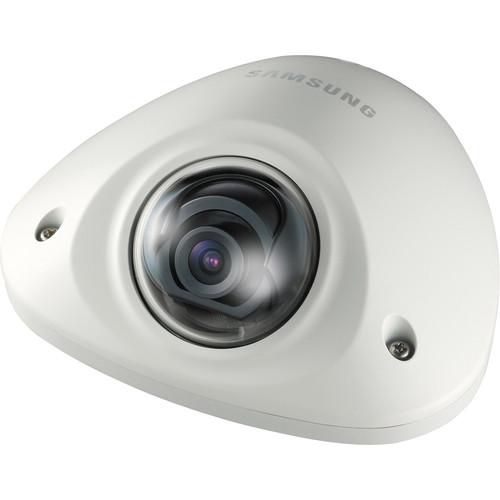

User Manual for Hanwha Techwin SNV-6012M 2 Mp Full HD Vandal-Resistant Network Mobile Flat Camera with Built-In 3mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin SNV-6012M 2 Mp Full
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin SNV-6012M 2 Mp Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The SNV-6012M Vandal-Resistant Network Mobile Flat Camera from Samsung has a vibration resistant build (EN50155, EN50121) that makes it suitable for transportation applications. It features a fixed 3mm lens that has a Wide Dynamic Range of 120 dB and can record at illumination levels down to 0.3 lux (F2, 50IRE, color). Equipped with a WiseNetIII chipset, this camera can capture 2 Mp 1080p images in both NTSC and PAL formats. It also has an M12 connector for secure installation in transportation applications. - M12 Standard
- Use the M12 connectors with the camera cable to install the camera securely.
- Weatherproof (IP66-Rated)
- Dust- and water-resistant design for outdoor installation.
- Multi-Streaming
- Displays videos in different resolutions and qualities simultaneously using different codecs
- Browser-Based Monitoring
- Uses an Internet browser to display images in a local network environment
- Intelligent Video Analysis
- Analyzes video to detect events that meet specified conditions from the camera's video input
- SSLE (Samsung Super Light Enhancer)
- This camera incorporates SSLE, Samsung Super Light Enhancer technology, which produces good-quality color images in low light conditions. With SSLE, even under low light conditions such as at night, you can monitor the scene in 2 Mp, so that there is little chance of any movement in dark areas being missed.
- 2 Mp 100 dB WDR (Wide Dynamic Range)
- The WDR function provides 30 fps of 2 Mp enhanced picture quality by reducing motion blur and processing clearer images. While working with a contrast ratio of approximately 100 dB, the WDR feature accurately reproduces the detail of the images in scenes that simultaneously contain very bright and very dark areas.
- Defog
- Defog can be used to help improve the captured image in poor weather conditions such as smog, fog, or smoke. The visibility of the cameras can be enhanced in any weather condition.
- Enhanced DIS (Digital Image Stabilization)
- Previously only seen in analog CCDs, the WiseNetIII CMOS sensor incorporates Digital Image Stabilization (DIS) technology. This technology negates the effects of a camera shaking due to high wind or building vibration. DIS also greatly reduces the rolling shutter effect such as image wobble or skew that can often be seen in high-quality images. With enhanced DIS technology, the problems of monitoring using a camera installed on a pole or in windy conditions can be reduced. This also assists in the capture/detection of fast moving car number plates.
- P-Iris
- The camera supports the P-Iris system, which optimizes the iris function when multiple lighting conditions exist in a single scene; this results in images with better contrast, clarity, resolution, and depth of field. The optimization of the resolution at both the center and corner of the image, as well as the depth of field and shutter speed, provides increased image sharpness especially effective in megapixel cameras.
- 30 fps @ 2 Mp Resolution
- The camera has a frame rate of 30 fps at 2 Mp 1080p resolution; this results in latency-free, clear images. It is possible to utilize this frame rate in multiple ways. For example, using 30 fps at 2 Mp 1080p resolution, can be particularly beneficial when viewing moving objects to ensure that any edges are kept sharp and clear. By dividing the frame rate between NVR and PC monitoring, you can both record and monitor the scene in real-time.
- Improved Bandwidth Utilization
- The camera can process data streaming using 30% of the network bandwidth of cameras. Because of this improved bandwidth technology, seamless image transfer is possible even when there is limited network bandwidth available with the additional benefit of improved storage efficiency.
- Multi-Crop Streaming
- Multi-crop streaming allows users to highlight/crop areas of the scene so that only defined areas of interest will be transmitted from the camera in a predetermined resolution and frame rate. This flexibility in the video's resolution and frame rate allows a much smarter and efficient use of the network's bandwidth, resulting in reduced data size and storage capacity.
- Simple Focus
- Automatic focus technology allows the camera to move the image sensor's position for accurate image capture.
- Motion/Audio/Face Detection
- Motion detection technology reduces the false alarm rate and greatly improves the efficiency of the operators by learning what is the normal motion of the scene the camera can ignore, such as waves in the sea or the leaf movement of trees. This technology has also been adopted for audio detection, so the camera will only recognize abnormal noise levels. Face detection is also available and will detect up to 35 faces in the scene; these will be listed on an NVR as separate events for quick recall.
- Multi-Browser Support
- This camera utilizes NPAPI (Netscape Plugin Application Programming Interface) plug-in architecture that removes the limitation on supporting resolution and Web browser type. NPAPI is designed to satisfy the operating system and serve as a solution for adopting Samsung Techwin's optimized security system codec. Utilizing NPAPI, Google Chrome, Safari, Firefox, and IE can be used to monitor the WiseNetIII camera.
- Samsung Network Products Solution
- The WiseNetIII camera has been designed to be compatible with existing Samsung mobile, storage, and camera monitoring software. It can be used for small applications that include using the camera as edge storage as a recording solution, SmartViewer CMS for management, and iPOLiS mobile for Smartphone monitoring. For mid/large applications the camera can be used with hardware/software NVRs as a recording solution while Samsung Security Manager (SSM) can be used as the monitoring/management software.
In the Box Hanwha Techwin SNV-6012M 2 Mp Full HD Vandal-Resistant Network Mobile Flat Camera with Built-In 3mm Fixed Lens Cable for Testing Monitor Installer Software CD CMS DVD L Wrench 3 x M4 Tapping Screw Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNV-6012M 2 Mp Full HD Vandal-Resistant Network Mobile Flat Camera with Built-In 3mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNV-6012M Specs | | | Imaging Device | 1/2.8" PS Exmor 2.38 M, CMOS | | Total Pixels | 1952 (H) x 1116 (V) | | Effective Pixels | 1944 (H) x 1104 (V) | | Scanning System | Progressive | | Minimum Illumination | Color: 0.3 lux (1/30 sec, F1.2, 50 IRE), 0.005 lux (2 sec, F1.2, 50 IRE) | | Signal to Noise Ratio | > 50 dB | | Video Output | CVBS: 1 Vpp / 75 Ω composite, 704 x 480 (NTSC), 704 x 576 (PAL) | | | | Focal Length (Zoom Ratio) | 3 mm | | Maximum Aperture Ratio | F2.0 | | Angular Field of View | H: 103.1°
V: 53.9°
D: 124.5° | | Lens Type | Fixed iris | | Mount Type | Board-in type | | | | Pan Range | -10 to 10° | | Tilt Range | 0 to 90° | | | | Camera Title | Off / On (up to 45 characters displayed) | | Day & Night | Auto (Electrical) / Color / B/W / Schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D + 3D noise filter) (Off / On) | | Digital Image Stabilizer | Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 x 4 points polygonal zones) | | Privacy Masking | Off / On (32 zones with 4 points of polygonal) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, Appear / Disappear, Face detection | | Alarm Triggers | Motion detection, face detection, video analytics, network disconnection, tampering | | Alarm Events | File upload via FTP and email, notification via email
Local storage (SD/SDHC/SDXC) recording at event (alarm triggers), external output | | | | Ethernet | 10 / 100 Base-TX, M12 connector (4 poles, Female, D-coding) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 60 fps at all resolutions
MJPEG: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 (maximum 15 fps)
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 (maximum 30 fps) | | Video Quality Adjustment | H.264: Compression level, Target bitrate level control,
MJPEG: Quality level control | | Bit-Rate | Control Method: H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at Unicast mode | | Memory Slots | microSD/SDHC/SDXC
Recorded data in the SDXC/SDHC/SD memory card can be downloaded Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card detachment, or expiry, which varies according to operational conditions. | | Application Programming Interface | ONVIF profile S, HTTP API v2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatia, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browsers: Microsoft Internet Explorer (versions 7 and up)
Mozilla Firefox (version 9 to version 19)
Google Chrome (version 15 to version 25)
Apple Safari ( versions 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) | | CMS | SmartViewer 4.0, SSM (DVD included) | | Mobile View Support | iPOLiS mobile v2.0 or higher | | | | Operating Temperature | -22 to 131°F (-30 to 55°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | Operating & Storage: Less than 90% RH | | Ingress protection | IEC 60529 IP66, NEMA 250 type 4X | | Vibration Resistance | EN 50155 class T3 (vibration, shock, bump, temperature)
EN 50121, ISO 16750-3 (vibration) | | Vandal Resistant | IEC 62262 class IK10 (20J) | | UL Listings | UL60590-1 | | | | Input Voltage/Current | PoE (class A type only) | | Power Consumption | Maximum 7.5 W | | Recommended System Requirements | CPU: Intel Core 2 Duo 2.4 GHz or higher (for using 1,920 x 1,080, 30 fps)
Intel Core i7 2.8 GHz or higher (for using 1,920 x 1,080 60 fps)
Web Plug-in is optimized to SSE 4.1 instruction set
Operating System: Windows XP, VISTA, 7, 8, Mac OS X 10.7 Windows 8 is supported only in the desktop mode.
Neither a beta test version nor the developer version will be supported | | Recommended System Requirements | Resolution: 1280 x 1024 pixels or higher (32-bit color)
RAM: 2 GB or higher
Web Browser: Microsoft Internet Explorer (versions 7 and up)
Mozilla Firefox (versions 9 to 19)
Google Chrome (versions 15 to 25)
Apple Safari (versions 6.0.2 (Mac OS X 10.8, 10.7 Only), 5.1.7) For IPv6 connection, Window 7 or higher is recommended
For Mac OS X, only the Safari browser is supported | | Video Memory | 256 MB or higher For a multi-monitoring system involving at least 2 monitors, the playback performance can be poor depending on the system. | | | | Material | Aluminum | | Dimensions | 5.32 x 2.14 x 4.90" (13.51 x 5.44 x 12.45 cm) | | Weight | 1.17 lb (0.53 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 6.4 x 6.3 x 4.9" |
