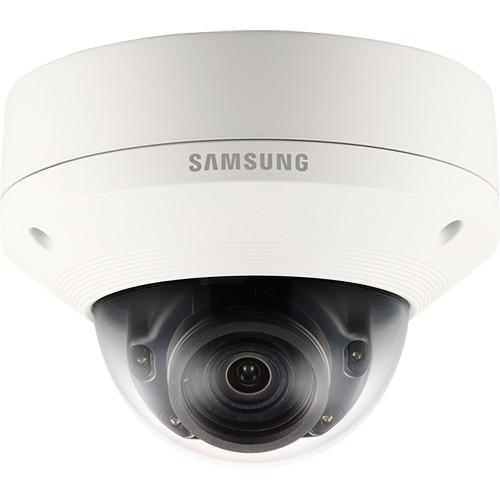

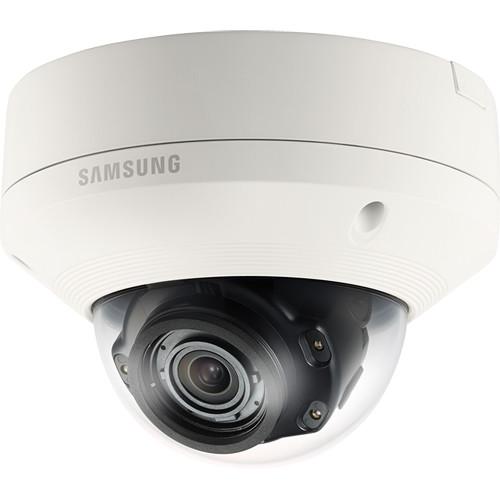

Product description The ivory SNV-8081R 5MP Outdoor Network Dome Camera from Hanwha Techwin uses a 1/1.8" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The camera's 3.93-9.4mm motorized varifocal lens delivers a 93.4 to 39.2° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure. A built-in heater ensures that the camera remains within operating temperatures. - IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- Unicast and multicast streaming
- Up to ten users in unicast mode
- Camera pivots from 0 to 354° horizontally and from 0 to 67° vertically
- 1.64' minimum object distance
- Focus control includes simple focus, along with manual and remote control via network
- 120 dB wide dynamic range
- SSDR contrast enhancement
- White balance modes include ATW, AWC, manual, indoor, and outdoor (mercury & sodium)
- Flip, mirror, and hallway view (90 and 270° rotation)
- Lens distortion correction
- Motion detection for up to 4 rectangular zones
- Privacy masking for up to 6 rectangular zones
- CVBS video output for installation
- Intelligent video analytics include tampering and audio detection with metadata
- Alarm triggers include alarm input, motion detection, tampering, audio detection, and network disconnect
- Alarm events include file upload via FTP and email, notification via email, local storage (microSD card) or NAS recording at event triggers, and external output
- Compatible with Windows XP, Vista, 7, 8, 8.1 & 10, Mac OS X 10.7 to 10.10, Internet Explorer 8 to 11, Firefox 9 to 35, Chrome 15 to 40, Safari 8.0.2 (Mac OS X 10.10), Safari 7.0.6 (Mac OS X 10.9), Safari 6.0.2 (Mac OS X 10.8 & 10.7 only), Safari 5.1.7 (Mac OS X only), SmartViewer, and SSM
- Camera title settings displayed in up to fifteen characters
- FCC, cUL, and CE certified
In the Box Hanwha Techwin SNV-8081R 5MP Outdoor Network Dome Camera with Night Vision & Heater L Wrench Monitor Testing Cable Power Terminal Block Power Cable Template Audio/Alarm Cable Cable Bush 3 x Tapping Screws 3 x Plastic Anchors 3 x Machine Screws Drill Bit Card-Type Moisture Absorbent Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNV-8081R 5MP Outdoor Network Dome Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNV-8081R Specs | | | Sensor | 6 MP 1/1.8" CMOS | | Focal Length | 3.93 to 9.4mm | | Maximum Aperture | f/1.3 | | Zoom | Optical: 2.4x | | Lens Field of View | Horizontal: 93.4 to 39.2°
Vertical: 68.1 to 29.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.003 Lux
B&W: 0 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 354°
Vertical: 0 to 67° | | | | Streaming Resolution | 2592 x 1944 at 30 fps
1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S, SUNAPI (HTTP API), SVNP, Wisenet Open Platform | | Analytics | Tampering
Audio Detection with Metadata | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Pixel Counter | | | | Windows OS Support | Windows XP, Vista, 7, 8, 8.1, 10 | | Mac OS Support | OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7 | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 98.43' / 30 m | | Video Management Software | SmartViewer, SSM | | Supported Languages | Croatian
Czech
Danish
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Spanish
Swedish
Turkish | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | AC: 13.5 W (With Heater)
DC: 11.5 W (With Heater)
PoE: 12.95 W (With Heater) | | Material of Construction | Aluminum | | Operating Temperature | -40 to 131°F / -40 to 55°C Startup Temperature: Above -31°F / -35°C | | Storage Temperature | 22 to 140°F / -5 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
