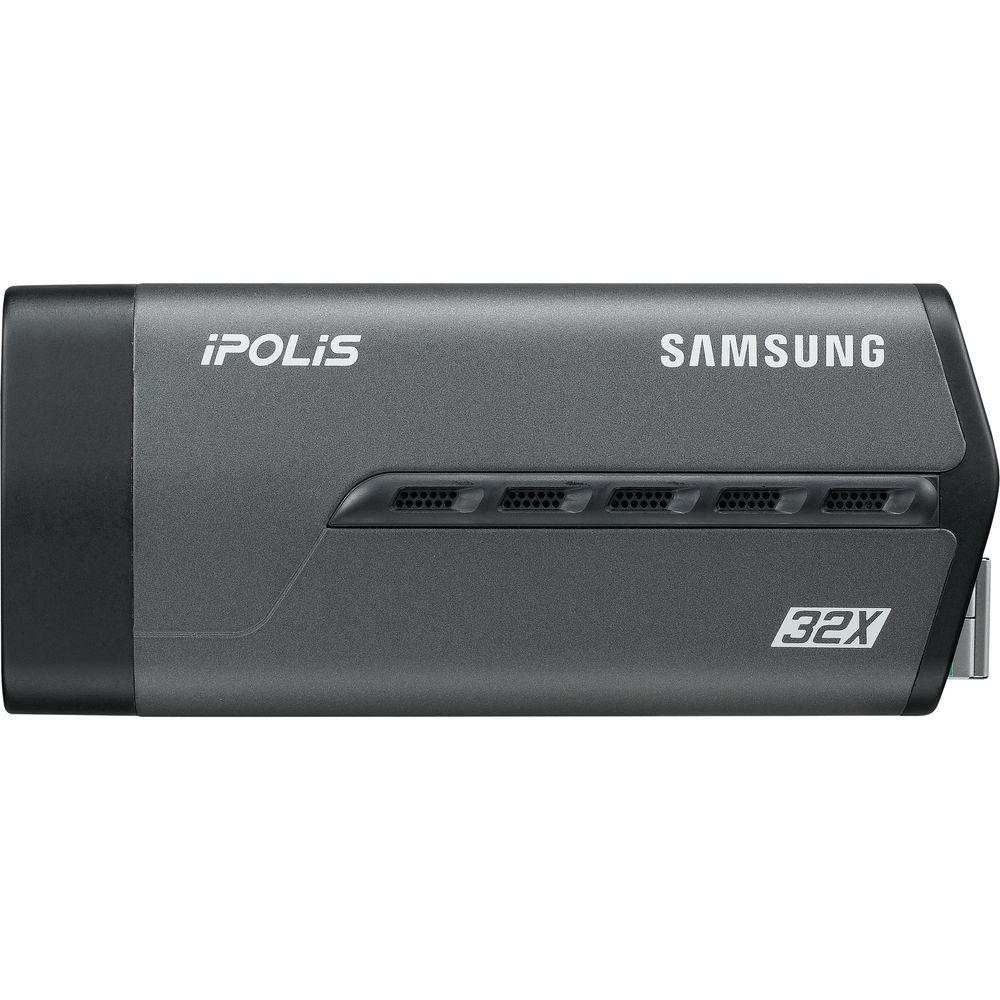

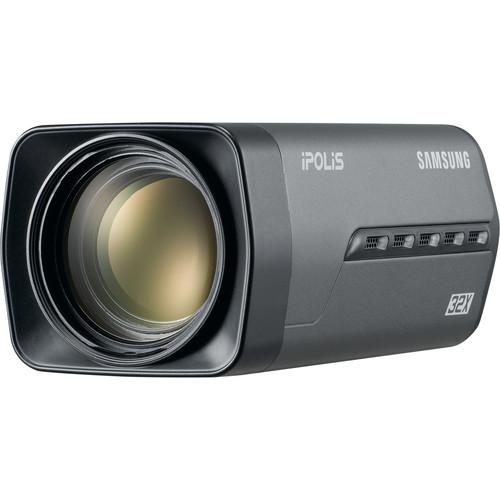

Product description The SNZ-6320 2 MP Full HD 32x Zoom Network Camera from Samsung incorporates a 1/2.8" CMOS sensor that captures clear images in Full HD resolution of up to 1920 x 1080. The 32x optical zoom lets you close in on objects without losing detail. The camera supports H.264, MJPEG dual codec, multiple streaming. The Intelligent Video Analytics supported are Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection. - Maximum 2 MP (1920 x 1080) resolution
- 16:9 Full HD (1080p) resolution support
- 4.44 to 142.6mm, 32x optical zoom, 16x digital zoom
- H.264, MJPEG dual codec, multiple streaming
- Day & night (ICR), WDR (120 dB)
- Intelligent video analytics

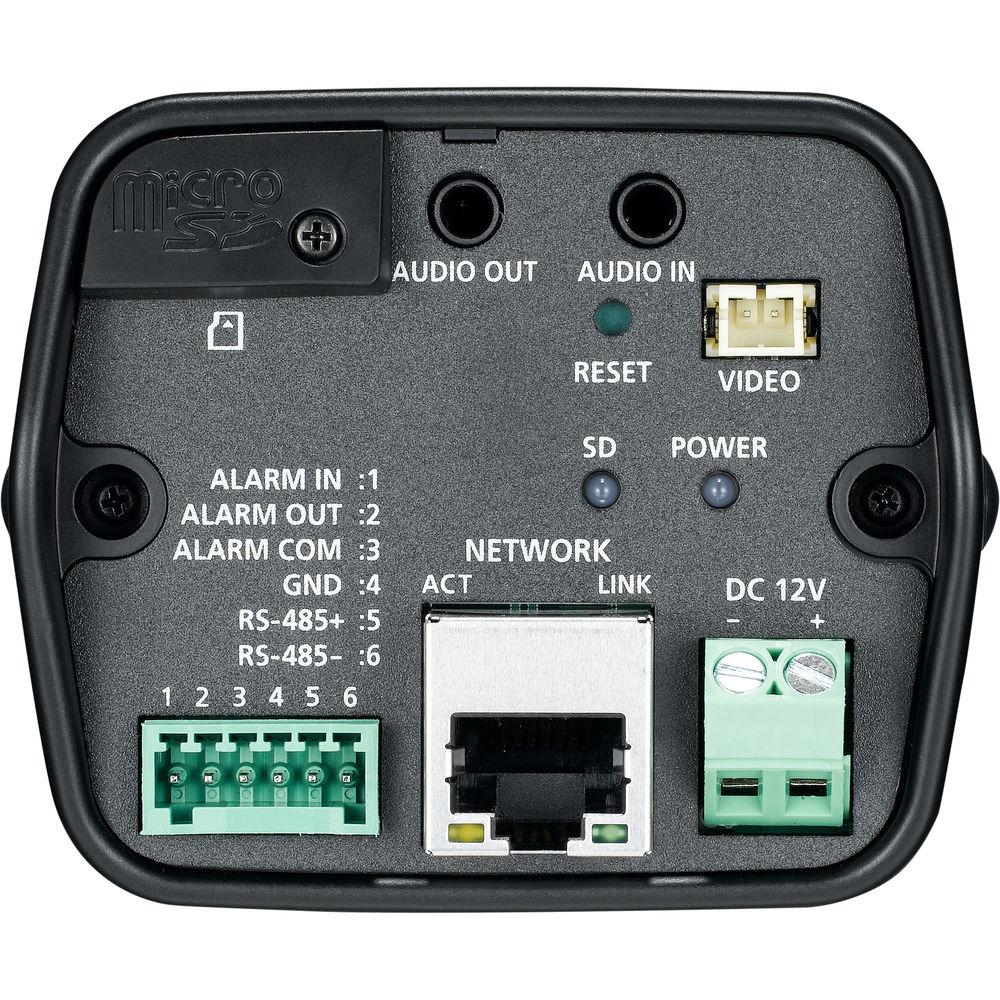

- PoE, SD/SDHC/SDXC memory slot, bi-directional audio support
In the Box Hanwha Techwin SNZ-6320 2 MP Full HD 32x Zoom Network Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin SNZ-6320 2 MP Full HD 32x Zoom Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNZ-6320 Specs | | | Imaging Device | 1/2.8" 2.38 MP CMOS | | Total Pixels (H x V) | 1952 x 1116, 2.18 MP | | Effective Pixels (H x V) | 1944 x 1104, 2.14 MP | | Scanning System | Progressive | | Min. Illumination | Color: 0.3 lux (1/30 sec, F1.6, 50IRE), B&W: 0.03 lux (1/30 sec, F1.6, 50IRE) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1.0 Vpp / 75 Ω composite, 720 x 480 (N), 720 x 576 (P), for installation DIP connector type | | | | Focal Length | Zoom Ratio: 32x, 4.44 to 142.6 mm | | Maximum Aperture Ratio | F1.6 (Wide) / F4.4 (Tele) | | Angular Field of View | H: 62.8˚ (Wide) to 2.23˚ (Tele) / V: 36.80˚ (Wide) to 1.26˚ (Tele) | | Minimum Object Distance | 4.92' (1.5 m) | | Focus Control | Auto / Manual / One push | | Mount Type | DC auto iris lens, Board-in type | | | | Camera Title | Off / On (Displayed up to 45 characters) | | Day & Night | Auto (ICR) / Color / B/W / External / Schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (Off / On) | | Image Stabilization | Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4ea 4 points polygonal zones) | | Privacy Masking | Off / On (32 zones with 2 points of rectangle) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 16x | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection | | Alarm I/O | Input 1 / Output 1 (Relay) | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE | | Alarm Triggers | Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection | | Alarm Events | File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Network disconnected & Event (Alarm Triggers), External output | | | | Ethernet | RJ-45 (10/100BASE-T) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Max. 60 fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Maximum 15 fps
800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180: Maximum 30 fps | | Smart Codec | Manual mode (Area-based: 5), Face detection mode | | Video Quality Adjustment | H.264: Compression level, Target bitrate level control, MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | Audio In | Selectable (Mic in / Line in), Supply voltage: 2.5 VDC (4 mA), Input impedance: approximately 2k Ohm | | Audio Out | Line out (3.5 mm stereo mini jack), Max output level: 1 VRMS | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24, 32, 40 Kb/s | | Audio Communication | Bi-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Max. User Access | 10 users at unicast mode | | Edge Storage | SD/SDHC/SDXC - motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) | | Application Programming Interface | ONVIF profile S, SUNAPI 2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / Vista / 7 / 8 / 8.1, Mac OS X 10.7 / 10.8 | | Supported Browsers | Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 32), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) | | CMS | SmartViewer, SSM, Mobile viewer | | | | Operating Temperature / Humidity | +14 to +131°F (-10 to +55°C), Less than 90% RH | | Storage Temperature / Humidity | -22 to +140°F (-30 to +60°C), Less than 90% RH | | | | Input Voltage/Current | 12 VDC, PoE (IEEE802.3af class 3) | | Power Consumption | Maximum 9 W (12 VDC) / Maximum 10 W (PoE) | | | | Material of Construction | Metal | | Dimensions (W x H x D) | 2.83 x 2.36 x 5.33" (72 x 59.9 x 135.4 mm) | | Weight | 1.19 lb (0.54 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.1" |
