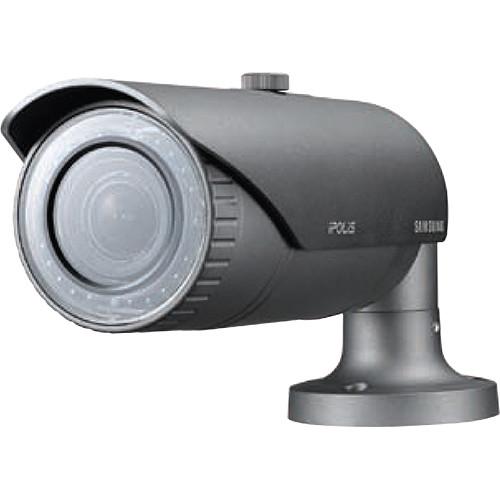

Product description The dark gray WiseNet 3 Series SNO-5084R 1.3 MP HD Vandal-Resistant Weatherproof IR Network Bullet Camera from Samsung features a 1/3" CMOS sensor that is capable of capturing image resolutions of up to 1280 x 1024. It comes complete with high performance IR LEDs that allow it to illuminate objects up to 98' away, even in complete darkness. The camera includes a multi-stream H.264/ MPEG-4/ MJPEG codec. The built-in 3 to 8.5mm varifocal auto-iris lens captures objects with accuracy in conditions with a minimum illumination as low as 0.05 lux (color). This IP66 and IK10 rated camera is suitable for indoor or outdoor applications. -
- 1.3MP (1280 x 1024) maximum resolution
- 60 fps @ all resolutions
- 3 to 8.5mm (2.8x) motorized varifocal lens
- H.264, MJPEG dual codec, multiple streaming
- Day & Night ICR
- Wide Dynamic Range 130 dB
- Simple focus, P-Iris, Enhanced DIS, Defog
- Multi-crop streaming
- microSD / SDHC / SDXC memory slot (4GB included)
- Bidirectional audio support
- 20 IR LEDs provide illumination up to 98' away even in complete darkness
- Comes with IP66, IK10 ratings
In the Box Hanwha Techwin WiseNet 3 Series SNO-5084R 1.3 MP HD Vandal-Resistant Weatherproof IR Network Bullet Camera (3 to 8.5mm lens, Dark Gray) 4GB microSD Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet 3 Series SNO-5084R 1.3 MP HD Vandal-Resistant Weatherproof IR Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNO-5084R Specs | | | Imaging Device | 1/3" 1.37 MP CMOS (IMX238) | | Total Pixels (H x V) | 1312 x 1069 | | Effective Pixels (H x V) | 1305 x 1049 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.05 lux (1/30 sec, f/1.2, 50 IRE), 0.0008 lux (2 sec, 50 IRE),0.005 lux (1/30 sec, f/1.2, 30 IRE)
B/W: 0 lux (IR LED on) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1.0 Vpp / 75 ohms composite, 704 x 480 (N), 704 x 576 (P), for installation DIP connector type | | | | Focal Length | Zoom Ratio: 3 to 8.5 mm (2.8x) motorized varifocal | | Maximum Aperture Ratio | f/1.2 | | Angular Field of View | H: 93.4° (wide) to 33.1°(tele), V: 73.8° (wide) to 26.5° (tele) | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (motorized V/F) / manual - Remote control via network (manual, simple focus) | | Lens/Mount | Type: DC auto iris, P-Iris / board-in type | | | | IR LED | 20 each | | Viewable Area | 98.43' (30 m) | | Camera Title | Off / on (displayed up to 40 characters) | | Day & Night | Auto (ICR) / color / B/W / external / schedule | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 130 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (off / on) | | Digital Noise Reduction (DNR) | SSNRIII (2D + 3D noise filter) (off / on) | | Digital Image Stabilizer | Off / on | | Defog | Off / auto / manual | | Motion Detection | Off / on (4 zones with 4-sided polygon) | | Privacy Masking | Off / on (32 zones with 4-sided polygon) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti flicker | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter / exit, (dis)appear, audio detection, face detection with metadata | | Alarm I/O | 1 x Input
1 x Output | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, network disconnection, alarm input | | Alarm Events | File upload via FTP and email, notification via email, local storage (SD / SDHC / SDXC) recording at event, external output | | | | Ethernet | RJ-45 (10/100 BaseT) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1280 x 1024, 1280 x 720p (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240 | | Maximum Frame Rate | H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 15 fps at 1280 x 1024, 1280 x 720, 1024 x 768
Maximum 30 fps at 800 x 600, 640 x 480, 320 x 240 | | Video Quality Adjustment | H.264: Compression level, target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio Input | Selectable (Microphone Input / Line Input) Supply Voltage: 25 VDC (4 mA), Input Impedance: Approximately 2kOhms | | Audio Output | Line out (3.5 mm stereo mini jack)
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 / 24 / 32 / 40 kb/s | | Audio Communication | Bidirectional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Edge Storage | microSD / SDHC / SDXC (4 GB included) motion images recorded in the SDXC / SDHC / SD memory card can be downloaded | | Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser: Microsoft Internet Explorer (Version 8 to 10), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 25), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | | Central Management | Software: SmartViewer, SSM | | | | Operating Temperature | -22 to 131°F (-30 to 55°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | Less than 90% RH | | Weather / Vandal Resistance | Ingress Protection: IP66
Vandal Resistance: IK10 | | | | Input Voltage/Current | 12 VDC, 24 VAC, PoE (IEEE802.3af) | | Power Consumption | Maximum 10 W / 11.5 W (12 VDC - heater off / on), maximum 11.5 W / 12.95 W (PoE-heater off / on)
Maximum 12 W / 13.5 W (24 VAC heater off / on) | | | | Approvals | FC, uL, CE | | Material | Aluminum | | Dimensions (W x H x D) | Without Sunshield: (3.24 x 3.24 x 12.31") 8.22 x 8.22 x 31.26 cm | | Weight | With Sunshield: 2.58 lb (1.17 kg) | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 14.8 x 14.7 x 6.2" |
