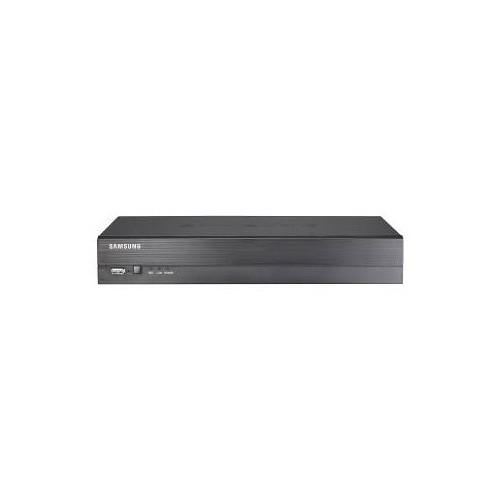

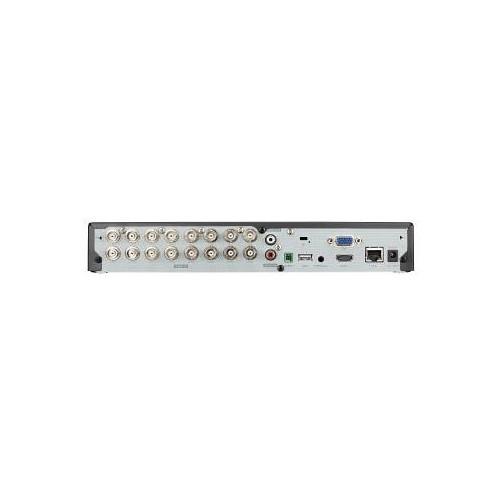

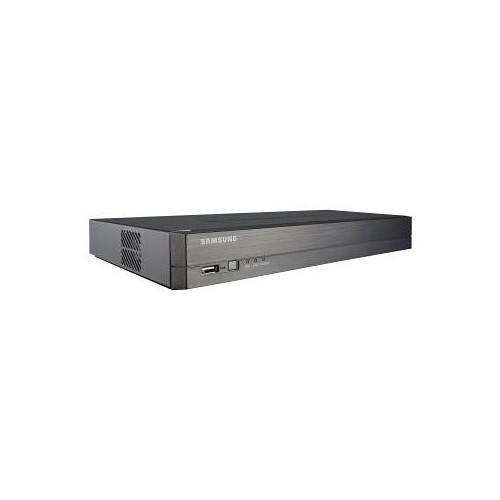

Product description The WiseNet 8-Channel 1080p AHD DVR with 1TB HDD from Samsung supports recording and playback of 1920 x 1080 video at up to 240 fps. It supports recording using H.264 compression for efficient usage of storage space, while ensuring high-quality recording and playback. Additionally, this DVR supports PTZ control via coaxial cable using Pelco C protocols. It includes 1TB of storage space to store video from all eight channels. - 8-channel AHD DVR records video in up to 1080p
- HDMI and VGA video output
- Supports remote viewing via iOS and Android devices
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet 8-Channel 1080p AHD DVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SRD-893 Specs | | | Video Inputs | 8 x BNC | | Video Resolution | 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / 928 x 576, 704 x 576 | | Live Frame Rate | 240 fps at 1920 x 1080 / 240 fps at 1280 x 720 / 240 fps at 928 x 480 | | Live Resolution | 1920 x 1080 (Full HD) / 1280 x 720 (HD) / 928 x 480 (wD1) | | Multi-Screen Display | 1, 4, 7, 9, sequence, picture-in-picture | | | | Operating System | Embedded Linux | | Compression | H.264 | | | | Recording Rate | Up to 240 fps at 1920 x 1080 (NTSC) and up to 200 fps at 1920 x 1080 (PAL)
Up to 240 fps at 1280 x 720 (NTSC) and up to 200 fps at 1280 x 720 (PAL)
Up to 240 fps at 928 x 480 (NTSC) and up to 200 fps at 928 x 480 (PAL) | | Mode | NTSC: Manual, schedule (continuous, event), event (pre, post), time lapse (1 to 30 fps)
PAL: Manual, schedule (continuous, event), event (pre, post), time lapse (1 to 25 fps) | | Event | Video loss, motion (level 1 to 10), alarm, tampering | | Overwrite Modes | Continuous | | Pre-Alarm | Off, 5 sec | | Post-Alarm | Up to 6 hours (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hours) | | | | Search Modes | Date/time, event, backup, POS, motion All searches include preview function | | Playback Function | Fast forward/backward (2, 4, 8, 16, 32, 64x)
Slow forward/backward (1/2, 1/4, 1/8x)
Step forward/backward (2, 4, 8, 16, 32, 64x) Fast/step backward play with i-frame only | | | | Support | IPv4 | | Transmission Speed | 4 CIF/2 CIF/CIF (NTSC: 120/240/240 fps, PAL: 100/200/200 fps) | | Bandwidth | Up to 32 Mbps | | Bandwidth Control | Selectable | | Streaming | H.264 (4 CIF, 2 CIF, CIF selectable) | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP, UPnP | | Monitoring | SmartViewer, Webviewer, Mobile viewer, SSM (CMS) | | | | Platform | iOS and Android | | Protocol Support | RTP, RTSP, HTTP, CGI | | Max. Remote Users | Live 2, playback 1 | | | | HDD Capacity | 1 TB preinstalled | | Backup | USB 2.0, 2 ports (1 in front, 1 in rear)
File Format: BU (DVR player), EXE (include player), AVI | | | | Password Protection | 1 admin, 10 group, 10 users per 1 group | | Data Authentication | Watermark | | | | Monitors | VGA: 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
HDMI: 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080) | | Audio | Inputs/Output: 1 channel line input/output
Compression: G.711
Sampling Rate: 8 kHz | | Alarm | Remote notification via email | | Connections | Ethernet: 1 x RJ45 10/100/1000Base-T
Serial Interface: RS-485
USB: 2 x USB 2.0
Application Support: Mouse, remote controller
RS-485 Protocol: Samsung-T/E, Pelco D/P, Panasonic, Phillips, AD, VICON, GE
Coax Protocol: NTSC/PAL: PTZ Control via coaxial cable (Pelco C (Coaxitron)), AHD (Coaxitron): ACP (AHD Coax Protocol) | | Language | English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai, Taiwanese (25 languages) | | | | Input Voltage | 12 VDC adapter, 100 to 250 VAC ±10%, 50/60 Hz | | Power Consumption | Maximum 23 W (with HDD) | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 85% RH | | | | Dimensions (W x H x D) | 17.3 x 1.9 x 8.2" (44 x 4.8 x 20.8 cm) | | Weight | 2.5 lb (1.1 kg) with no HDD |
