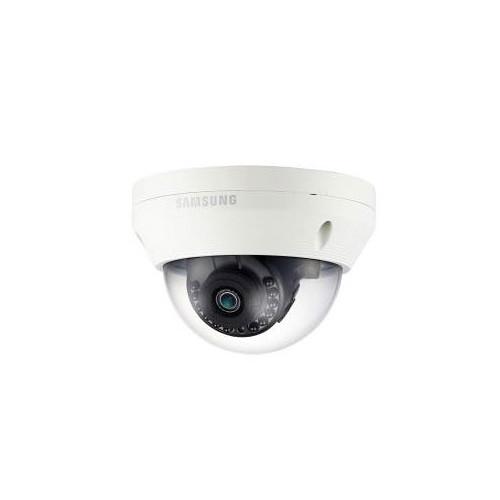

Product description The ivory WiseNet HD+ 1080p AHD Outdoor Dome Camera from Samsung delivers analog 1920 x 1080 video at up to 30 fps with minimal lag. It features a 4mm fixed lens and 1/2.9" CMOS sensor. The camera features day and night ICR, DWDR, Samsung Super Noise Reduction (SSNRIV) technology, motion detection, and an IR range of 66'. - 1920 x 1080 resolution analog video at 30 fps
- Minimum illumination 0 lux at f/2.1 (B&W, IR LED on) and 0.25 lux at f/2.1 for color
- Day & night (ICR), DWDR, SSNRIV, motion detection
- Features IR viewable length of 66', IP66, and IK10 ratings
- Maximum video transmission distance up to 1640' via coaxial cable
- Easy plug-and-play installation
In the Box Hanwha Techwin WiseNet HD+ 1080p AHD Outdoor Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 1080p AHD Outdoor Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCV-6023R Specs | | | Imaging Device | 1/2.9" CMOS | | Total Pixels (H x V) | 2000 x 1121, 2.24 MP | | Effective Pixels (H x V) | 1984 x 1105, 2.19 MP | | Scanning System | Progressive | | Minimum Illumination | Color: 0.25 lux at f/2.1
B&W: 0 lux (IR LED On) | | S / N Ratio | 52 dB (AGC Off, Weight On) | | Video Output | BNC (AHD, CVBS selectable) | | Video Resolution | 1920 x 1080 | | Max. Frame Rate | 30 fps at 1080p, 720p | | | | Focal Length (Zoom Ratio) | 4mm fixed | | Maximum Aperture Ratio | f/2.1 | | Angular Field of View | Horizontal: 72.2°
Vertical: 52.9°
Diagonal: 94.3° | | MOD | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | Fixed | | Mount Type | Board-in | | Pan / Tilt / Rotate | 0 to 350° / 0 to 67° / 0 to 355° | | | | On Screen Display | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | | Camera Title | Off / On (displayed up to 15 characters) | | Day & Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | DWDR | | Digital Noise Reduction (DNR) | SSNRIV (Off / On) | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 zones) | | Privacy Masking | Off / On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800 to 10,500K) | | Electronic Shutter Speed | 1 to 1/12,000 sec | | Reverse | Off / H-Rev / V-Rev / HV-Rev | | Profile | Basic, Day & Night, Backlight, Indoor, User | | Remote Control Interface | Coaxial control | | Protocol | Coax: NTSC/PAL - Samsung CCVC, Pelco C (Coaxitron), AHD - ACP (AHD coax protocol) | | IR Distance | 65.62' (20 m) | | Maximum Video Transmission Range | 1,640 (500 m) (75-5 coaxial cable) | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C) / less than 90% RH Startup should be done at above 14°F (-10°C) | | Ingress Protection | IP66 | | Vandal Resistance | IK10 | | | | Input Voltage/Current | 12 VDC ±10%) | | Power Consumption | Maximum 4.2 W | | | | Material | Aluminum | | Dimensions (Ø x H) | 5.4 x 3.7" (137 x 94 mm) | | Weight | 1.23 lb (0.56 kg) |
