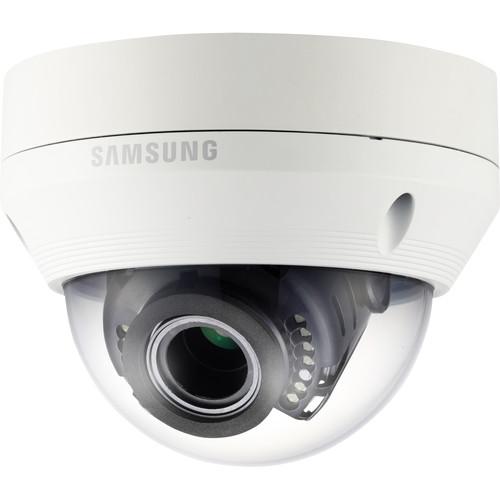

Product description The ivory WiseNet HD+ 1080p Outdoor Vandal-Resistant Dome Camera from Samsung delivers high-definition video (1920 x 1080) at up to 30 fps with minimal lag. It features a 4.3x varifocal lens and 1/2.9" CMOS sensor. The camera features day and night ICR, DWDR, Samsung Super Noise Reduction (SSNRIV) technology, motion detection, and an IR range of 98'. - Full HD (1920 x 1080, 30 fps) resolution
- Minimum illumination 0 lux (IR LED on) and 0.11 lux (f/1.4) for color
- 2.8-12mm (4.3x) varifocal lens
- Day & night (ICR), DWDR, SSNRIV, motion detection
- Features IR range of 98', IP66 and IK10 ratings, and dual power
- Maximum video transmission distance up to 1640' via coaxial cable
- Plug-and-play installation
In the Box Hanwha Techwin WiseNet HD+ 1080p Outdoor Vandal-Resistant Dome Camera with 2.8-12mm Varifocal Lens & Night Vision (Ivory) Mounting Hardware Template Allen Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 1080p Outdoor Vandal-Resistant Dome Camera with 2.8-12mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCV-6083R Specs | | | Imaging Device | 1/2.9" CMOS | | Total Pixels (H x V) | 2000 x 1121, 2.24 MP | | Effective Pixels (H x V) | 1984 x 1105, 2.19 MP | | Scanning System | Progressive | | Minimum Illumination | Color: 0.11 lux at f/1.4
B&W: 0 lux (IR LED On) | | S/N Ratio | 50 dB (AGC Off, Weight On) | | Video Output | BNC (AHD, CVBS selectable) | | Video Resolution | 1920 x 1080 | | Max. Frame Rate | 30 fps at 1080p, 720p | | | | Focal Length (Zoom Ratio) | 2.8-12mm (4.3x) varifocal | | Maximum Aperture Ratio | f/1.4 | | Angular Field of View | Horizontal: 103.8 (Wide) to 32.4° (Tele)
Vertical: 53.7; (Wide) to 18.4° (Tele)
Diagonal: 121.9 (Wide) to 37.1° (Tele) | | Minimum Object Distance | 1.64' (0.5 m) | | Lens Type | DC auto iris | | Mount Type | Board-in | | Pan / Tilt / Rotate | 0 to 350° / 0 to 67° / 0to 355° | | | | On Screen Display | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | | Camera Title | Off/On (displayed up to 15 characters) | | Day & Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | DWDR | | Digital Noise Reduction (DNR) | SSNRIV (Off / On) | | Defog | Off/Auto/Manual | | Motion Detection | Off/On (4 zones) | | Privacy Masking | Off/On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High / Very High | | White Balance | ATW/Outdoor/Indoor/Manual/AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1 to 1/12,000 sec | | Reverse | Off/H-Rev/V-Rev/HV-Rev | | Profile | Basic, Day & Night, Backlight, Indoor, User, ITS | | Alarm | (MD) output 1 | | Protocol | Coax: NTSC/PAL - Samsung CCVC, Pelco C (Coaxitron), AHD - ACP (AHD coax protocol) | | IR Distance | 98' (30 m) | | Maximum Video Transmission Range | 1640' (500 m) (75-5 coaxial cable) | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C) / less than 90% RH | | Ingress protection | IP66 | | Vandal Resistance | IK10 | | | | Input Voltage/Current | Dual (24 VAC and 12 VDC ±10%) | | Power Consumption | Maximum 4.2 W | | | | Material | Aluminum | | Dimensions (Ø x H) | 5.39 x 4.18" (137 x 106.1 mm) | | Weight | 1.58 lb (716 g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 6.4 x 6.4 x 5.2" |
