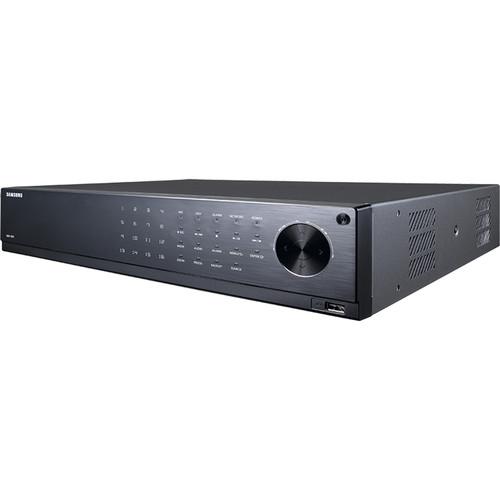

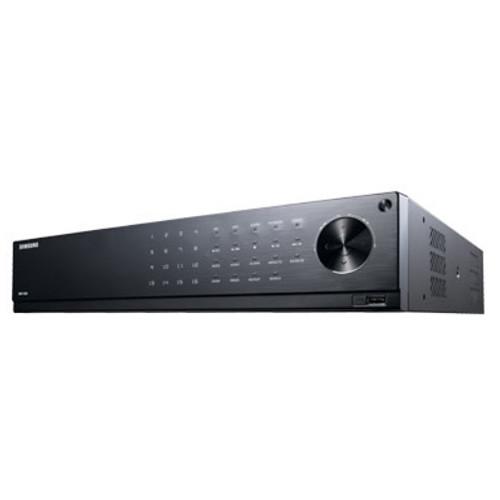

Product description The WISENET HD+ 16-Channel 1080p AHD DVR from Samsung comes with 16TB of storage. It has space for a maximum of 4 internal HDDs and allows you to further expand by using external HDDs via e-SATA ports. It records using H.264 compression for efficient use of storage space. This DVR allows for convenient network monitoring through SmartViewer, Webviewer, or SSM (CMS), and supports network bandwidth of 64 Mbps. It has 16 audio inputs and 1 channel for audio output, and features data backup via 2 USB ports. Application support is provided by mouse and remote controller. - Up to 480/400 (720p) fps recording rate
- 16 channels audio input / 1 channel audio output
- 16 coaxial cable inputs (Pelco C, ACP) via BNC for analog HD video
- Smart phone support (Android / iOS)
- Network bandwidth up to 64 Mbps
In the Box Hanwha Techwin WISENET HD+ 16-Channel 1080p AHD DVR (16TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WISENET HD 16-Channel 1080p AHD DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SRD-1685-16TB Specs | | | Capacity | 16 TB | | Operating System | Linux (Embedded) | | Signal System | NTSC / PAL | | Multiplexing | Not specified by the manufacturer | | Compression | H.264 | | Channels | 16 | | Storage | Internal HDD: Up to 4 SATA HDDs
External (e-SATA Interface): 2 ports
USB (Backup): USB 2.0, 2 ports (Front 1, Back1)
File Format (Backup): BU (DVR player), SEC (Include player), AVI | | Resolution | NTSC: 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480
PAL: 960 x 576, 704 x 576 | | Frame Rate | NTSC: 480 fps
PAL: 400 fps | | Recording Rate | Up to 192 fps @ 1920 x 1080 / Up to 192 fps @ 1920 x 1080
Up to 480 fps @ 1280 x 720 / Up to 400 fps @ 1280 x 720
NTSC: Up to 480 fps @ 928 x 480 / PAL: Up to 400 fps @ 928 x 576
NTSC: Up to 480 fps @ 704 x 480 / PAL: Up to 400 fps @ 704 x 576
NTSC: Up to 480 fps @ 704 x 240 / PAL: Up to 400 fps @ 704 x 288
NTSC: Up to 480 fps @ 352 x 240 / PAL: Up to 400 fps @ 352 x 288 | | Overwrite Modes | Continuous | | Pre-Alarm | Up to 30 sec (5, 10, 20, 30 sec) | | Post-Alarm | Up to 6 hours (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hours) | | Display Rate | NTSC: 480 fps
PAL: 400 fps | | Display Modes | Multi-screen display (1 / 4 / 7 / 9 / 13 / 16 / 16A / Sequence / PIP) | | Recording Modes | NTSC: Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 to 30 fps)
PAL: Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 to 25 fps) | | Event | Video loss, Motion (Level 1 to 10), Alarm, Tampering (Level - Low, Medium, High) | | Video Inputs | 16 channels BNC, 1080p / 720p AHD camera, NTSC/PAL | | Video Outputs | HDMI / VGA | | Audio Inputs | 16 channels line in (Built-in 4CH, Option: Audio extension cable) | | Audio Outputs | 1 channel line out | | Audio Compression | G.711 | | Audio Sampling Rate | 8 kHz | | PTZ Control | RS-232/RS-485 (full duplex) | | Motion Detection | Motion (Level 1 to 10) | | USB Port | USB 2.0, 2 ports (front 1, back 1) | | Control Ports | VGA: 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
HDMI: 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite: Digital spot (1CH) included OSD on screen, Multi-mode support | | Alarm I/O | Terminal 16 inputs (NO/NC)
Terminal 4 relay outputs (NO/NC)
Rating: 30 VDC / 2 A, 250 VAC / 0.25 A
Remote notification via email | | Search Modes | Date/Time, Event, Backup, POS (SD signal only), Motion
Note: All search include preview function | | Playback Function | Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x)
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) | | Security | Password Protection: 1 admin, 10 groups, 10 users per 1 group
Data Authentication: Watermark | | Application Support | Mouse, remote controller | | RS-485 Protocol | Samsung-T/E, Pelco D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE | | Protocol | Coax:
NTSC/PAL: Pelco-C (Coaxitron)
AHD: ACP (AHD Coax Protocol) | | | | Network Interface | 1 RJ45 10/100/1000 Base-T | | Serial Interface | RS-232/RS-485 (Full duplex) for PTZ, Samsung system keyboard | | Transmission Speed | Record Stream: 1 to 2 MP (NTSC: 192 fps, PAL: 192 fps), 4CIF (NTSC: 480 fps, PAL: 400 fps)
Network Stream: 4CIF / 2CIF / CIF (NTSC: 120 / 240 / 480 fps, PAL: 100 / 200 / 400 fps) | | Stream Type | Record stream and network stream can be selected (at monitoring viewer) | | Network Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP | | Internet Access | Network bandwidth up to 64 Mbps | | Bandwidth Control | Selectable | | Monitoring | SmartViewer, Webviewer, SSM (CMS) | | | | Mobile OS Support | Android, iOS | | Protocol Support | RTP, RTSP, HTTP, CGI | | Max. Remote Users | Live 4, search 1CH | | | | Language | English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai, Taiwanese (25 languages) | | Power Requirements | 100 to 240 VAC ±10%, 50 / 60 Hz, Auto ranging | | Power Consumption | Maximum 30 W (1 x 1TB HDD) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 85% RH | | Dimensions | 17.32 x 3.46 x 15.15" (44.0 x 8.8 x 38.5 cm) | | Weight | With Hard Disks: 11.24 lb (5.1 kg) approximately |
