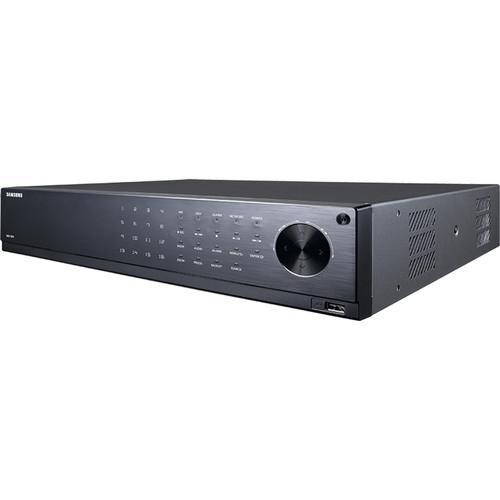

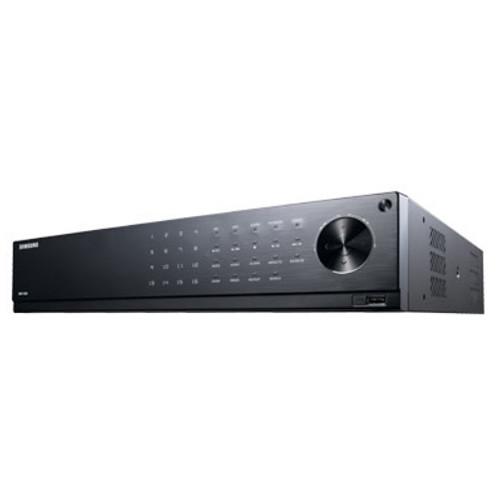

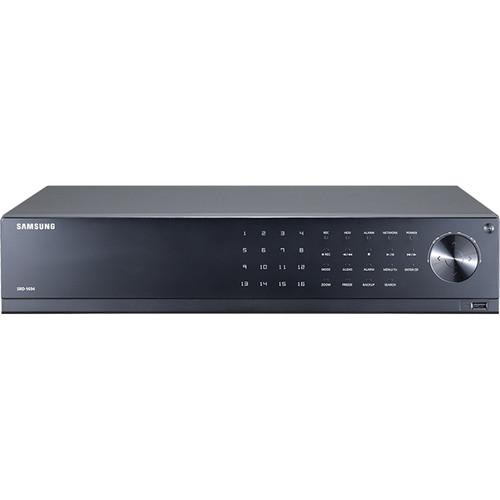

User Manual for Hanwha Techwin WiseNet HD 16-Channel 1080p AHD DVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD 16-Channel 1080p
- Product category: Digital Video Recorders (DVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Digital Video Recorders (DVRs)
 |
User manual for the Hanwha Techwin WiseNet HD 16-Channel 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The WiseNet HD+ 16-Channel 1080p AHD DVR with 8TB HDD from Samsung supports recording and playback of 1920 x 1080 video at up to 480 fps. It supports recording using H.264 compression for efficient usage of storage space, while ensuring high-quality recording and playback. Additionally, this DVR supports PTZ control via coaxial cable using Pelco C protocol. It includes 8TB of storage space to store video from all 16 channels. - 16-channel AHD DVR records video in up to 1080p
- HDMI and VGA video output
- Supports remote viewing via iOS and Android devices
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 16-Channel 1080p AHD DVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SRD-1694-8TB Specs | | | Video Inputs | 16 x BNC | | Video Resolution | NTSC: 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480
PAL: 960 x 576, 704 x 576 | | Live Frame Rate | NTSC: Up to 480 fps
PAL: Up to 400 fps | | Live Resolution | NTSC: 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480
PAL: 960 x 576, 704 x 576 | | Multi-Screen Display | 1, 4, 7, 9, 13, 16, 16A, sequence, picture-in-picture | | | | Operating System | Embedded Linux | | Compression | H.264 | | | | Recording Rate | NTSC:
Up to 480 fps at 1920 x 1080
Up to 480 fps at 1280 x 720
Up to 480 fps at 928 x 480
Up to 480 fps at 704 x 480
Up to 480 fps at 704 x 240
Up to 480 fps at 352 x 240
PAL:
Up to 400 fps at 1920 x 1080
Up to 400 fps at 1280 x 720
Up to 400 fps at 928 x 576
Up to 400 fps at 704 x 576
Up to 400 fps at 704 x 288
Up to 400 fps at 352 x 288 | | Mode | NTSC: Manual, schedule (continuous, event), event (pre, post), time lapse (1 to 30 fps)
PAL: Manual, schedule (continuous, event), event (pre, post), time lapse (1 to 25 fps) | | Event | Video loss, motion (level 1 to 10), alarm, tampering (level: low, medium, high) | | Overwrite Modes | Continuous | | Pre-Alarm | Up to 30 sec (5, 10, 20, 30 sec) | | Post-Alarm | Up to 6 hours (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hours) | | | | Search Modes | Date/time, event, backup, POS, motion All searches include preview function | | Playback Function | Fast forward/backward (2, 4, 8, 16, 32, 64x)
Slow forward/backward (1/2, 1/4, 1/8x)
Step forward/backward (2, 4, 8, 16, 32, 64x) Fast/step backward play with i-frame only | | | | Support | IPv4 | | Transmission Speed | 1-2 Mbps (NTSC: 480 fps, PAL: 400 fps), 4CIF (NTSC: 480 fps, PAL: 400 fps)
Network Stream: 4CIF, 2CIF, CIF (NTSC: 120/240/480 fps, PAL: 100/200/400 fps) | | Bandwidth | Up to 64 Mbps | | Bandwidth Control | Selectable | | Streaming | Record stream and network stream selectable (at monitoring viewer) | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP | | Monitoring | SmartViewer, Webviewer, SSM (CMS) | | | | Platform | iOS and Android | | Protocol Support | RTP, RTSP, HTTP, CGI | | Max. Remote Users | Live 4, search 1 | | | | HDD Capacity | 8 x SATA
2 x eSATA
8 TB preinstalled | | Backup | USB 2.0, 2 ports (1 in front, 1 in rear)
File Format: BU (DVR player), SEC (include player), AVI | | | | Password Protection | 1 admin, 10 group, 10 users per 1 group | | Data Authentication | Watermark | | | | Monitors | VGA: 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
HDMI: 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080) | | Spot Composite | Digital spot (1 channel)
Included OSD on screen, multi-mode support | | Audio | Inputs/Output: 16-channel line in (built-in 4-channel, optional: audio extension cable)
Compression: G.711
Sampling Rate: 8 kHz | | Alarm | 16 x inputs (NO/NC)
4 x relay outputs (NO/NC), Rating: 30V DC / 2A, 250V AC / 0.25A | | Email Alert | Remote notification via email | | Connections | Ethernet: 1 x RJ45 10/100/1000Base-T
Serial Interface: RS-232 and RS-485 (full duplex) for PTZ
Samsung system keyboard
USB: 2 x USB 2.0
Application Support: Mouse, remote controller
RS-485 Protocol: Samsung-T/E, Pelco D/P, Panasonic, Phillips, AD, VICON, GE
Coax Protocol: NTSC/PAL: PTZ Control via coaxial cable (Pelco C (Coaxitron)), AHD (Coaxitron): ACP (AHD Coax Protocol) | | Language | English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai, Taiwanese (25 languages) | | | | Input Voltage | 100-240 VAC ±10%, 50/60 Hz, auto-ranging | | Power Consumption | Maximum 60 W with 1 x HDD | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 85% RH | | | | Dimensions (W x H x D) | 17.3 x 3.5 x 15.2" (44 x 8.8 x 38.5 cm) | | Weight | 12.5 lb (5.7 kg) |
