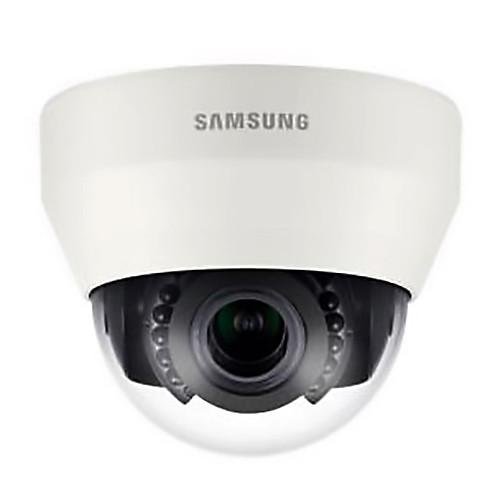

Product description The ivory WiseNet HD+ 2 MP AHD Dome Camera from Samsung utilizes a 1/3" progressive scan CMOS sensor with a 4mm fixed lens to transmit analog video at a resolution up to 1920 x 1080 at 30 fps. With built-in IR emitters, this camera can capture objects up to 65' away in complete darkness. The camera features day and night switching (ICR), DWDR, SSNRIV, and motion detection. -
- AHD 1920 x 1080 resolution over coax at 30 fps
- High-sensitivity of 0.25 lux in color and 0 lux in black and white with IR LED on at f/2.1
- Built-in 4mm fixed lens
- Features IR cut filter, DWDR, SSNRIV, motion detection
- IR range up to 65’
- Maximum video transmission distance 1,640’
- Plug-and-play installation
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2 MP AHD Dome Camera with 4mm Fixed Lens with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCD-6023R Specs | | | Imaging Device | 1/3" 2 MP CMOS sensor | | Total Pixels (H x V) | 1956 x 1266; 2.47 MP | | Effective Pixels (H x V) | 1944 x 1092; 2.12 MP | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.25 lux at f/2.1
B&W: 0 lux (IR LED on) | | S/N Ratio | 52 dB (AGC off, weight on) | | Video Output | BNC (AHD, CVBS selectable) | | Resolution | 1920 x 1080 | | Frame Rate | 1080p or 720p at 30 fps | | | | Focal Length (Zoom Ratio) | 4mm fixed | | Aperture | f/2.1 | | Angular Field of View | Horizontal: 80.7°
Vertical: 43.5°
Diagonal: 95.8° | | Minimum Object Distance (M.O.D.) | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | Fixed | | Mount Type | Board-in type | | | | Range | Pan: 0 to 350°
Tilt: 0 to 67°
Rotate: 0 to 355° | | | | On-Screen Display Languages | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | | Camera Title | Off / On (displayed 15 characters) | | Day & Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | DWDR | | Digital Noise Reduction | SSNRIV (Off / On) | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 zones) | | Privacy Masking | Off / On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1800K to 10500K°) | | Electronic Shutter Speed | 1 to 1/12000 sec | | Reverse | Off / H-rev / V-rev / HV-rev | | Profile | Basic, Day & Night, Backlight, Indoor, User | | Remote Control Interface | Coaxial control | | Protocol | Coax: NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol) | | IR Range | 49.21' (15 m) | | Transmission Distance | 1,640.42' (500 m) (75-5 coaxial cable) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Relative Humidity | <90% | | | | Input Voltage | 12 VDC ±10% | | Power Consumption | Max 4.2 W | | | | Material | Plastic | | Dimensions | 3.39 x 4.33" (86 x 110 mm) | | Weight | 0.53 lb (242 g) |
