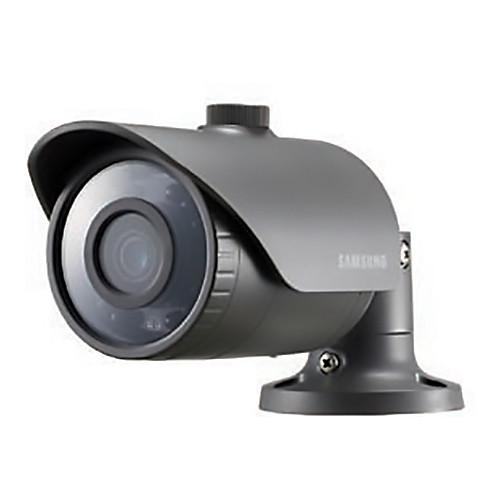

Product description The dark gray WiseNet HD+ 2 MP AHD Outdoor from Samsung utilizes a 1/3" progressive scan CMOS sensor and a 4mm fixed lens to capture video at a resolution up to 1920 x 1080 at 30 fps and transmit it over coax. With built-in IR emitters, this camera can capture objects up to 98' away in complete darkness. The camera features day and night switching (ICR), DWDR, SSNRIV, and motion detection. -
- Transmits analog video in 1920 x 1080 resolution at 30 fps
- High-sensitivity of 0.25 lux (color) and 0 lux (B/W: IR LED on) at f/2.1
- Built-in 4mm fixed lens
- Features Day and Night (ICR), DWDR, SSNRIV, motion detection
- IR range up to 98’
- IP66 rating
- Maximum video transmission distance 1,640’
- Plug-and-play installation
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2 MP AHD Outdoor Bullet Camera with 4 mm Fixed Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCO-6023R Specs | | | Imaging Device | 1/3" 2 MP CMOS sensor | | Total Pixels (H x V) | 1956 x 1266; 2.47 MP | | Effective Pixels (H x V) | 1944 x 1092; 2.12 MP | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.25 lux at f/2.1
B&W: 0 lux (IR LED on) | | S/N Ratio | 52 dB (AGC Off, Weight On) | | Video Output | BNC (AHD, CVBS selectable) | | Resolution | 1920 x 1080 | | Frame Rate | 1080p and 720p at 30 fps | | | | Focal Length (Zoom Ratio) | 4mm fixed | | Aperture | f/2.1 | | Angular Field of View | Horizontal: 80.7°
Vertical: 43.5°
Diagonal: 95.8° | | Minimum Object Distance (M.O.D.) | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | Fixed | | Mount Type | Board-in type | | | | On-Screen Display Languages | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | | Camera Title | Off / On (displayed 15 characters) | | Day & Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | DWDR | | Digital Noise Reduction | SSNRIV (Off / On) | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 zones) | | Privacy Masking | Off / On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1800K to 10500K) | | Electronic Shutter Speed | 1 to 1/12000 sec | | Reverse | Off / H-rev / V-rev / HV-rev | | Profile | Basic, Day & Night, Backlight, Indoor, User | | Remote Control Interface | Coaxial control | | Protocol | Coax: NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol) | | IR Range | 98.43' (30 m) | | Transmission Distance | 1,640.42' (500 m) (75-5 coaxial cable) | | | | Operating Temperature | -22 to 131°F (-30 to 55°C) Startup should be done at above -10°C (14°F) | | Ingress Protection Rating | IP66 | | Relative Humidity | <90% | | | | Input Voltage | 12 VDC ±10% | | Power Consumption | Max 4.2 W | | | | Material | Plastic | | Dimensions | Without Sunshield: 6.5 x 2.31" (165.2 x 58.6 mm) | | Weight | 0.46 lb (208 g) |
