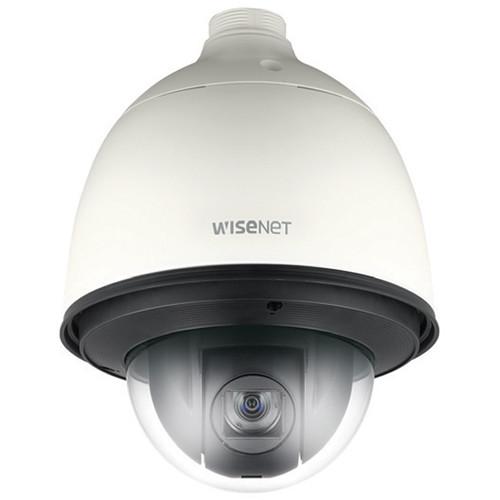

Product description The ivory WiseNet HD+ 2MP AHD Outdoor 32x PTZ Dome Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 4.44-142.6mm varifocal lens for capturing video at a maximum resolution of 1920 x 1080. Enclosed in an IP66- and IK10-rated housing, the camera can be used for both indoor and outdoor applications in areas at risk of vandalism. - 1920 x 1080 resolution at 30 fps
- 4.44-142.6mm varifocal lens
- 16x digital and 32x optical zoom
- Day/night (IR cut filter)
- 120 dB WDR (Wide Dynamic Range)
- IP66-rated weather-resistant and IK10-rated vandal-resistant housing
In the Box Hanwha Techwin WiseNet HD+ 2MP AHD Outdoor 32x PTZ Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2MP AHD Outdoor 32x PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet HD+ Specs | | | Imaging Device | 1/2.8" progressive scan CMOS sensor, 2.38 MP | | Total Pixels | 1952 x 1116, 2.18 MP | | Effective Pixels | 1944 x 1104, 2.14 MP | | Minimum Illumination | Color: 0.3 lux (1/30 sec, f/1.6, 50IRE) , 0.005 lux (2 sec, f/1.6, 50IRE)
B&W: 0.03 lux (1/30 sec, f/1.6, 50IRE), 0.0005 lux (2 sec, f/1.6, 50IRE)
Color: 0.2 lux (1/30 sec, f/1.6, 30IRE), 0.003 lux (2 sec, f/1.6, 30IRE)
B&W: 0.01 lux (1/30 sec, f/1.6, 30IRE), 0.0001 lux (2 sec, f/1.6, 30IRE) | | S/N Ratio | 50 dB | | Video Output | AHD: 1920 x 1080, BNC
CVBS: SD, DIP connector type | | | | Focal Length (Zoom Ratio) | 4.44-142.6mm (optical 32x) | | Maximum Aperture Ratio | Wide: f/1.6
Tele: f/4.4 | | Field of View | Horizontal: 62.8 to 2.23°
Vertical: 36.8 to 1.26° | | Minimum Object Distance | Wide: 4.59' (1.4 m)
Tele: 6.23' (1.9 m) | | Focus Control | Auto / Manual / One push | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | Pan Range | 360° endless | | Pan Speed | Preset: 700°/sec
Manual: 0.024 to 200°/sec | | Tilt Range | 210˚ (-15 to 195˚) | | Tilt Speed | Preset: 700°/sec
Manual: 0.024 to 200°/sec | | Preset | 255 | | Preset Accuracy | ±0.2° | | Azimuth | Yes (E / W / S / N / NE / SE / NW / SW OSD) | | | | Camera Title | Off / on (displayed 15 characters) | | Day and Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Off / On) | | Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) | | Image Stabilization | Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / on (4 zones rectangular zone) | | Privacy Masking | Off / on (32 zones rectangle) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC / Mercury / Sodium | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker (1 to 1/12,000 sec) | | Digital Zoom | 16x | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter / exit, (dis)appear | | Alarm Inputs | 4 | | Alarm Outputs | 2 | | Remote Control Interface | RS-485, Coaxial | | Protocol | RS-485: Samsung-T/E, Pelco P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Coaxial: ACP (AHD Coax Protocol) | | | | Operating Temperature | -58 to 131°F (-50 to 55°C) | | Operating Humidity | Less than 90% RH | | Ingress protection | IP66 | | Vandal Resistance | IK10 | | | | Input Voltage | 24 VAC ±10% | | Power Consumption | Heater Off: Maximum 24 W
Heater On: Maximum 65 W | | | | Material | Plastic and metal | | Dimensions (Ø x H) | 8.66 x 11.56" (220 x 293.6 mm) | | Weight | 7.28 lb (3.3 kg) |
