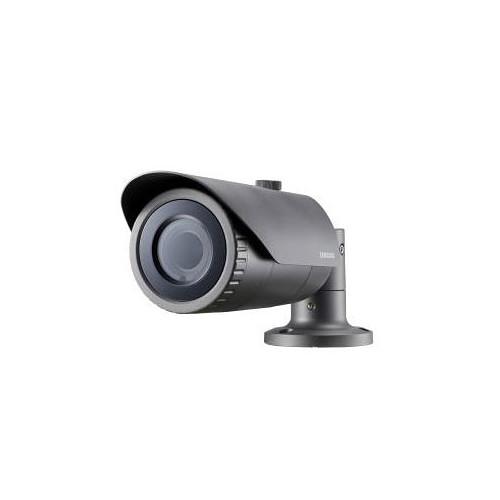

Product description The dark gray WiseNet HD+ 2MP AHD Outdoor Bullet Camera from Samsung utilizes a 1/2.9" progressive scan CMOS sensor and a 2.8-12mm varifocal lens to capture images at a resolution up to 1920 x 1080 at 30 fps. It transmits analog video up to 1640' (500m). With built-in IR capability, this camera can capture images of objects in complete darkness up to 98' away. The camera offers Day/Night switching (ICR), DWDR, SSNRIV, and motion detection. -
- Features 1920 x 1080 resolution at 30 fps
- High-sensitivity of 0.11 lux (color) and 0 lux (B&W: IR LED on) at f/1.4
- Built-in 2.8-12mm (4.3x) varifocal lens
- Features Day/Night switching (ICR), DWDR, SSNRIV, motion detection
- IR range up to 98.43"
- IP66 rating and vandal resistance of IK10
- Maximum video transmission distance 1,640.42' (500m).
- Plug-and-Play installation
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2MP AHD Outdoor Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCO-6083R Specs | | | Imaging Device | 1/3" 2 MP CMOS sensor | | Total Pixels (H x V) | 1,956 x 1,266, 2.47 MP | | Effective Pixels (H x V) | 1,944 x 1,092, 2.12 MP | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.11 lux at F1.4
B&W: 0 lux (IR LED on) | | S/N Ratio | 52 dB (AGC Off, Weight On) | | Video Output | BNC (AHD, CVBS selectable) | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps | | | | Focal Length (Zoom Ratio) | 2.8-12mm (4.3x) varifocal | | Aperture | f/1.4 | | Angular Field of View | Horizontal: 102° (wide) to 32.2° (tele)
Vertical: 54° (wide) to 18.2° (tele)
Diagonal: 121° (wide) to 38° (tele) | | Minimum Object Distance (M.O.D.) | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | On-Screen Display Languages | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | | Camera Title | Off / On (displayed 15 characters) | | Day & Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | DWDR | | Digital Noise Reduction | SSNRIV (Off / On) | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 zones) | | Privacy Masking | Off / On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High/ Very High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1800 to 10500K) | | Electronic Shutter Speed | 1 to 1/12000 sec | | Reverse | Off / H-rev / V-rev / HV-rev | | Profile | Basic, Day & Night, Backlight, Indoor, User, ITS | | Alarm | 1 x MD output | | Remote Control Interface | Coaxial control | | Protocol | Coax: NTSC/PAL - Samsung CCVC, Pelco C (Coaxitron), AHD - ACP (AHD Coax Protocol) | | IR Distance | 98.43' (30 m) | | Transmission Distance | 1,640.42' (500 m) (75-5 coaxial cable) | | | | Operating Temperature | -22 to 131°F (-30 to 55°C) Startup should be done at above -10°C (14°F) | | Relative Humidity | <90% | | Ingress Protection Rating | IP66 | | Vandal Resistance | IK10 | | | | Input Voltage | Dual (24 VAC & 12 VDC ±10%) | | Power Consumption | Max 6 W | | | | Material | Aluminum | | Dimensions | Without Sunshield: 10.24 x 3.07" (260 x 78 mm) | | Weight | 2.03 lb (922 g) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 13.3 x 4.9 x 4.8" |
