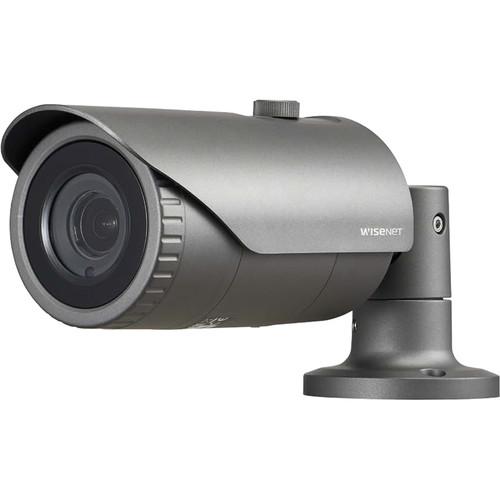

User Manual for Hanwha Techwin WiseNet HD 2MP Analog HD Outdoor Bullet Camera with Night Vision & Manual Focus Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD 2MP Analog
- Product category: Wired Analog & HD Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired Analog & HD Cameras
|
User manual for the Hanwha Techwin WiseNet HD 2MP Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The dark gray WiseNet HD+ 2MP Analog HD Outdoor Bullet Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 2.8-12mm manual varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 98'. Enclosed in an IP66- and IK10-rated housing, the camera can be used for both indoor and outdoor applications in areas at risk of vandalism. - 1920 x 1080 resolution at 30 fps
- 2.8-12mm (4.3x) manual varifocal lens
- Day/night (IR cut filter)
- 120 dB WDR (Wide Dynamic Range)
- SSNRIV and motion detection
- IP66-rated weather-resistant and IK10-rated vandal-resistant housing
- Dual power (24 VDC/12 VDC)
- Supports video transmission to a range of up to 1640'
- Supports plug-and-play operation
In the Box Hanwha Techwin WiseNet HD+ 2MP Analog HD Outdoor Bullet Camera with Night Vision & Manual Focus Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2MP Analog HD Outdoor Bullet Camera with Night Vision & Manual Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet HD+ Specs | | | Imaging Device | 2 MP 1/2.8" progressive scan CMOS sensor | | Total Pixels | 2000 x 1121, 2.24 MP | | Effective Pixels | 1984 x 1105, 2.19 MP | | Minimum Illumination | Color: 0.11 lux at f/1.4
B&W: 0 lux (IR LED on) | | S/N Ratio | 52 dB (AGC off, weight on) | | Video Output | BNC (AHD / TVI / CVI / CVBS selectable)
DIP connector type (for installation) | | Resolution | 1920 x 1080 | | Max. Frame Rate | 30 fps at 1080p, 30 fps at 720p | | | | Focal Length (Zoom Ratio) | 2.8-12mm (4.3x) manual varifocal | | Maximum Aperture Ratio | f/1.4 | | Field of View | Horizontal: 103.8 to 32.4°
Vertical: 53.7 to 18.4°
Diagonal: 121.9 to 37.1° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | IR Range | 98.4' (30 m) | | On Screen Display | Multiple language support (16)
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, and Turkish | | Camera Title | Off / on (displayed 15 characters) | | Day and Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNRIV (Off / On) | | Defog | Auto / Manual / Off | | Motion Detection | Off / On (4 zones) | | Privacy Masking | Off / On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High / Very High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1 to 1/12,000 sec | | Reverse | Off / H-Rev / V-Rev / HV-Rev | | Profile | Basic, Day & Night, Backlight, ITS, Indoor, User | | Alarm | (MD) 1 x output | | Remote Control Interface | Coaxial | | Protocol | NTSC/PAL: Pelco C (Coaxitron)
AHD: ACP (AHD Coax Protocol) | | Transmission Distance | Video: 1640' (500 m) (5C2V Coaxial Cable) | | | | Operating Temperature | -22 to 131°F (-30 to 55°C)
Note: Start up should be done at above 14°F (-10°C) | | Operating Humidity | Less than 90% RH | | Ingress Protection | IP66 | | Vandal Resistance | IK10 | | | | Input Voltage | Dual (24 VAC ±10% and 12 VDC ±10%) | | Power Consumption | 6 W (maximum) | | | | Material | Aluminum | | Dimensions | 3.07 x 3.43 x 10.24" (78 x 87 x 260 mm) without sunshield | | Weight | 32.5 oz (922 g) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 13.4 x 5.1 x 4.9" |
