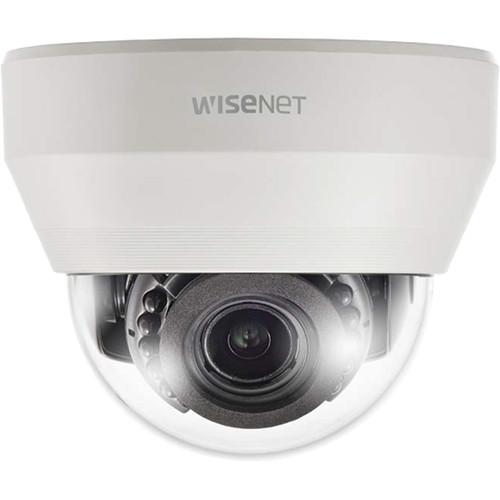

Product description The ivory WiseNet HD+ 2MP Analog HD Outdoor Dome Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 2.8-12mm motorized varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 66'. Enclosed in an IP66- and IK10-rated housing, the camera can be used for both indoor and outdoor applications in areas at risk of vandalism. - 1920 x 1080 resolution at 30 fps
- 2.8-12mm (4.3x) motorized varifocal lens
- Day/night (IR cut filter)
- 120 dB WDR (Wide Dynamic Range)
- SSNRIV and motion detection
- IP66-rated weather-resistant and IK10-rated vandal-resistant housing
- Dual power (24 VDC/ 12 VDC)
- Supports video transmission to a range of up to 1640'
- Supports plug-and-play operation
In the Box Hanwha Techwin WiseNet HD+ 2MP Analog HD Outdoor Dome Camera with Night Vision & Motorized Varifocal Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2MP Analog HD Outdoor Dome Camera with Night Vision & Motorized Varifocal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet HD+ Specs | | | Imaging Device | 1/2.8" progressive scan CMOS sensor, 2 MP | | Total Pixels | 2000 x 1121, 2.24 MP | | Effective Pixels | 1984 x 1105, 2.19 MP | | Minimum Illumination | Color: 0.11 lux at f/1.4
B&W: 0 lux (IR LED on) | | S/N Ratio | 52 dB (AGC off, weight on) | | Video Output | BNC (AHD / TVI / CVI / CVBS selectable)
DIP connector type (for installation) | | Resolution | 1920 x 1080 | | Max. Frame Rate | 30 fps at 1080p, 720p | | | | Range | 0 to 350° / 0 to 67° / 0 to 355° | | | | Focal Length (Zoom Ratio) | 2.8-12mm (4.3x) motorized varifocal | | Maximum Aperture Ratio | f/1.4 | | Field of View | Horizontal: 103.8 to 32.4°
Vertical: 53.7 to 18.4°
Diagonal: 121.9 to 37.1° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (motorized V/F) / Manual | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | IR Range | 65.62' (20 m) | | On Screen Display | Multiple language support (16)
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, and Turkish | | Camera Title | Off / On (displayed 15 characters) | | Day and Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNRIV (Off / On) | | Defog | Auto / Manual / Off | | Motion Detection | Off / On (4 zones) | | Privacy Masking | Off / On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High / Very High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1 to 1/12,000 sec | | Reverse | Off / H-Rev / V-Rev / HV-Rev | | Profile | Basic, Day & Night, Backlight, ITS, Indoor, User | | Alarm | (MD) 1 x output | | Remote Control Interface | Coaxial | | Protocol | NTSC/PAL: Pelco C (Coaxitron)
AHD: ACP (AHD Coax Protocol) | | Transmission Distance | 1640' (500 m) (5C2V coaxial cable) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | Less than 90% RH | | Ingress Protection | IP66 | | Vandal Resistance | IK10 | | | | Input Voltage | Dual (24 VAC ±10% and 12 VDC ±10%) | | Power Consumption | 6 W (maximum) | | | | Material | Plastic | | Dimensions | 4.72 x 3.88" (119.8 x 98.5 mm) | | Weight | 17.6 oz (500 g) |
