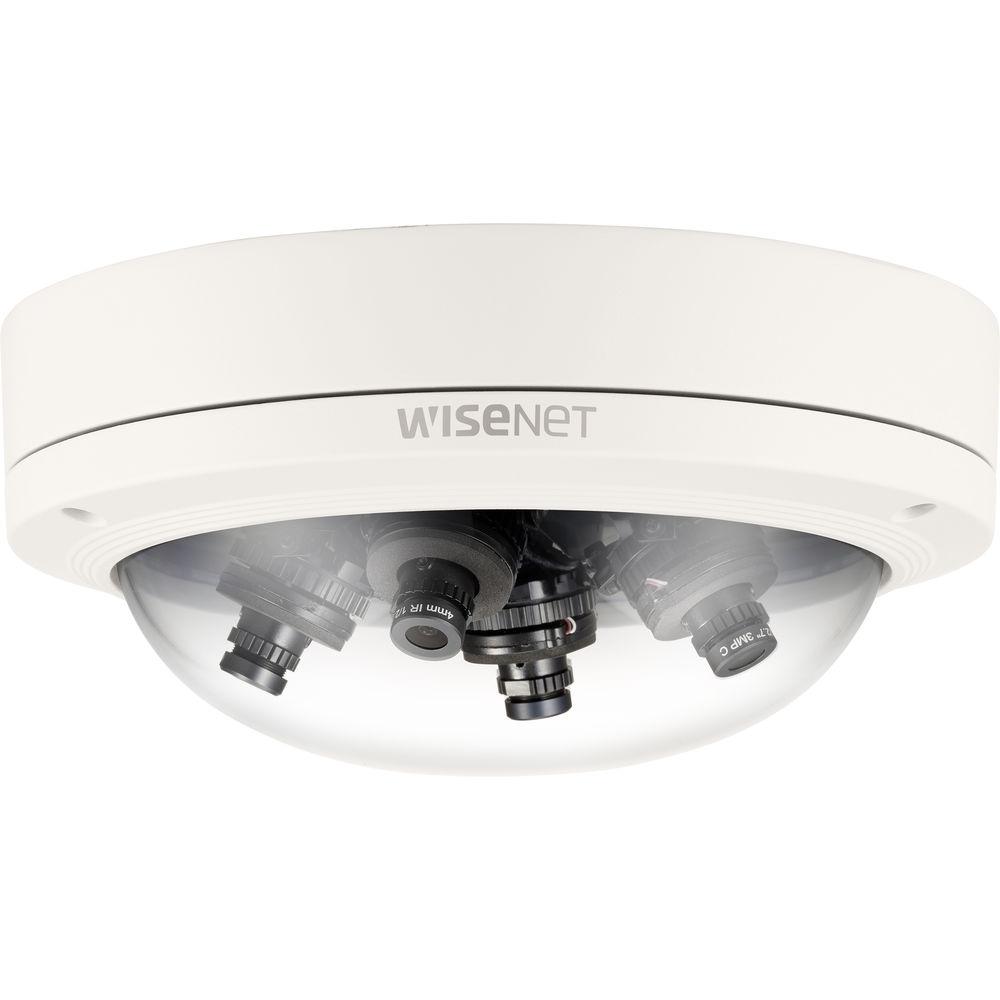

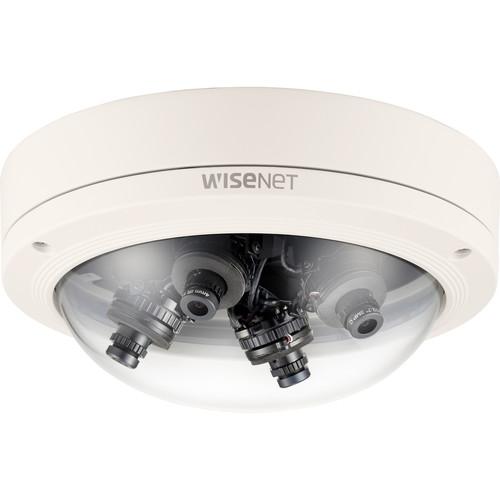

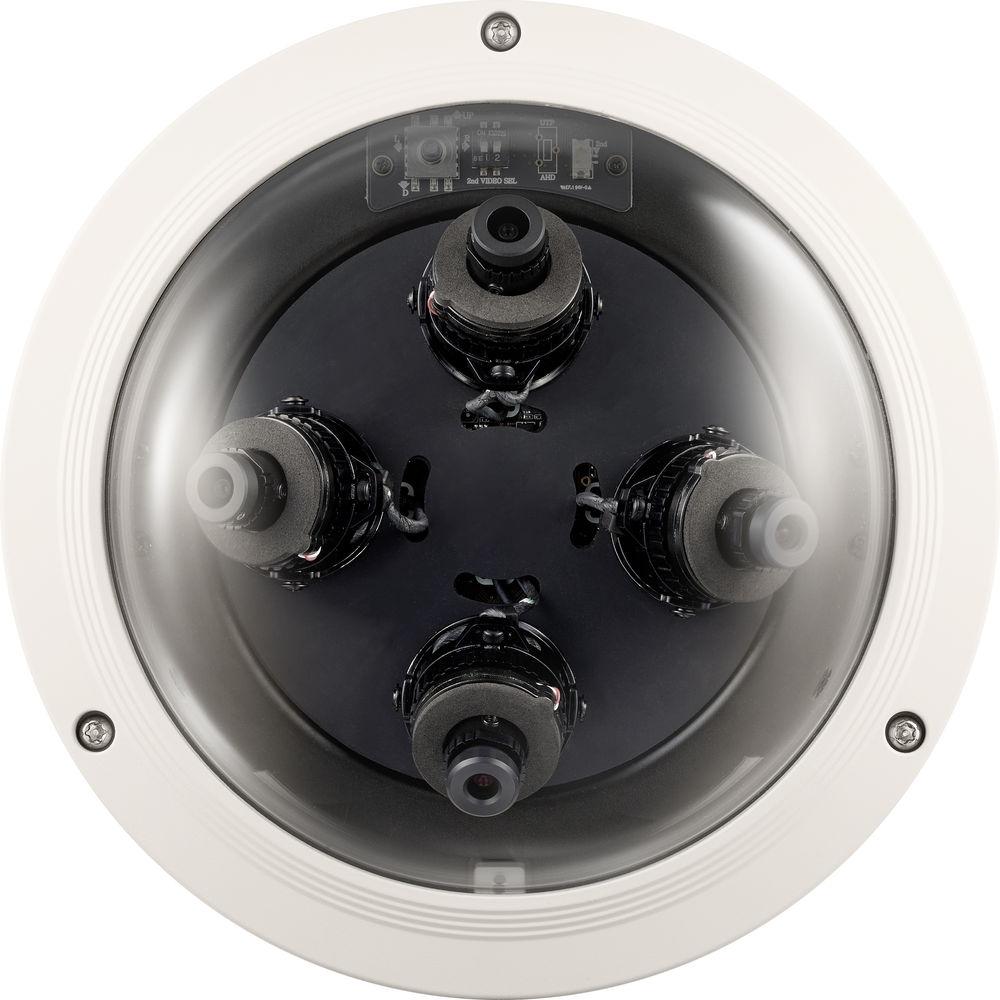

Product description The ivory WiseNet HD+ 2MP Outdoor 360° Multi-Directional Dome Camera from Hanwha Techwin consists of four 1/3" progressive scan CMOS sensors, two 4mm fixed lenses, and two 6mm fixed lenses. Enclosed in an IP66-rated and IK10-rated housing, the camera can be used for both indoor and outdoor applications. In addition, it offers a maximum resolution of 1920 x 1080. - 1920 x 1080 resolution at 30 fps
- Day/night (infrared cut filter)
- 100 dB WDR (Wide Dynamic Range)
- Video transmission distance up to 1640'
- IP66-rated weather-resistant and IK10-rated vandal-resistant housing
In the Box Hanwha Techwin WiseNet HD+ 2MP Outdoor 360° Multi-Directional Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2MP Outdoor 360° Multi-Directional Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet HD+ Specs | | | Imaging Device | 4 x 1/3" progressive scan CMOS sensor, 2 MP | | Total Pixels | Each Sensor: 1956 x 1266 | | Effective Pixels | Each Sensor: 1944 x 1092 | | Minimum Illumination | Color: 0.1 lux (4mm, f/2.6) / 0.01 lux (6mm, f/2.0)
B&W: 0.01 lux (4mm, f/2.6) / 0.01 lux (6mm, f/2.0) | | S/N Ratio | 55 dB (AGC off, weight on) | | Video Out | CVBS: 1 V p-p / 75 Ohms composite | | Resolution | 1920 x 1080 | | Maximum Frame Rate | 30 fps at 1080p, 30 fps at 720p | | | | Focal Length | 2 x 4mm, 2 x 6mm | | Maximum Aperture Ratio | f/2.6 (4mm), f/2.0 (6mm) | | Field of View | 4mm
Horizontal: 80.2°
Vertical: 43.5°
Diagonal: 95.24°
6mm
Horizontal: 51.66°
Vertical: 30.46°
Diagonal: 60.78° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Fixed | | Lens/Mount | Fixed / Board-in type | | | | Pan / Tilt / Rotate | Tilt: 0° (center), 20 to 60° (side) / Rotate: 355° | | | | On-Screen Display | Multiple language support (16)
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, and Turkish (OSD control via coaxial) | | Camera Title | Off / on (displayed 8 characters) | | Day and Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / HLC / BLC / WDR | | Wide Dynamic Range | 100 dB | | Digital Noise Reduction | Off / Low / Middle / High | | Defog | Auto / Manual / Off | | Motion Detection | Off / On (4 x 4-channel) | | Privacy Masking | Off / On (16 x 4-channel) | | Gain Control | 1 to 10 | | White Balance | ATW / Auto-Ex / Preset / Manual | | Electronic Shutter Speed | 1/30 (1/25) to 1/30,000 sec | | Digital Zoom | 16x | | Flip / Mirror | Off / on | | Alarm | Output: 4 | | Remote Control Interface | Coaxial (Pelco C) / RS-485 (9600 bps / Pelco D) | | Protocol | Pelco C (Coaxitron) / Pelco D (RS-485) | | Transmission Range | 1640' (500 m) | | | | Input Voltage/Current | 12 VDC, 24 VAC | | Power Consumption | 12 VDC: 6.7 W (MAX_TDN ON)
24 VAC: 7.3 W (MAX_TDN ON) | | | | Operating Temperature | -4 to 122°F (-30 to 50°C) Startup should be done at above 14°F (-10°C) | | Operating Humidity | Less than 90% RH | | IP Rating | IP66 | | Vandal Resistance | IK10 | | | | Material | Metal | | Dimensions | 7.83 x 3.52" (199 x 89.5 mm) | | Weight | 4.4 lb (2 kg) |
