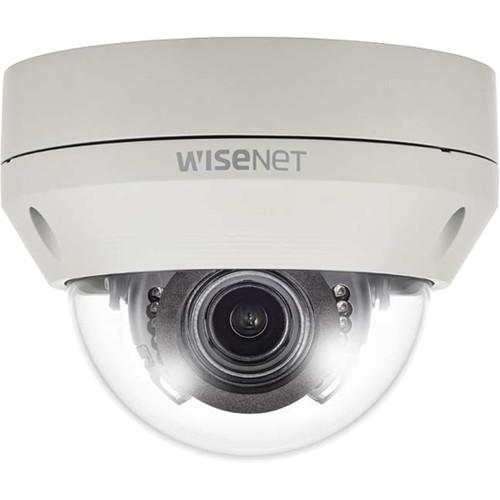

Product description The ivory WiseNet HD+ 2MP Outdoor Vandal-Resistant Dome Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 2.8-12mm manual varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 98'. Enclosed in an IP66-rated and IK10-rated housing, the camera can be used for both indoor and outdoor applications. - 1920 x 1080 resolution at 30 fps
- 2.8-12mm (4.3x) manual varifocal lens
- Day/night (IR cut filter)
- 120 dB WDR (Wide Dynamic Range)
- SSNRIV and motion detection
- IP66-rated weather-resistant and IK10-rated vandal-resistant housing
- Dual power (24 VDC / 12 VDC)
- Supports video transmission distances of up to 1640'
- Supports plug-and-play operation
In the Box Hanwha Techwin WiseNet HD+ 2MP Outdoor Vandal-Resistant Dome Camera with 2.8-12mm Manual Varifocal Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD 2MP Outdoor Vandal-Resistant Dome Camera with 2.8-12mm Manual Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet HD+ Specs | | | Imaging Device | 1/2.8" progressive scan CMOS sensor, 2 MP | | Total Pixels | 2000 x 1121, 2.24 MP | | Effective Pixels | 1984 x 1105, 2.19 MP | | Minimum Illumination | Color: 0.11 lux (f/1.4)
B&W: 0 lux (IR LED on) | | S/N Ratio | 52 dB (AGC off, weight on) | | Video Out | BNC (AHD / TVI / CVI / CVBS (selectable)
DIP connector type (for installation) | | Resolution | 1920 x 1080 | | Maximum Frame Rate | 30 fps at 1080p, 30 fps at 720p | | | | Pan / Tilt / Rotate | 0 to 350° / 0 to 67° / 0 to 355° | | | | Focal Length (Zoom Ratio) | 2.8-12mm (4.3x) manual varifocal | | Maximum Aperture Ratio | f/1.4 | | Field of View | Horizontal: 103.8 to 32.4°
Vertical: 53.7° to 18.4°
Diagonal: 121.9° to 37.1° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | DC auto iris | | Lens Mount | Board-in type | | | | IR Range | 98.4' (30 m) | | On-Screen Display | Multiple language support (16)
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, and Turkish | | Camera Title | Off / on (displayed 15 characters) | | Day and Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNRIV (Off / On) | | Defog | Auto / Manual / Off | | Motion Detection | Off / on (4 zones) | | Privacy Masking | Off / on (4 zones rectangle) | | Gain Control | Off / Low / Middle / High / Very High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1 to 1/12,000 sec | | Reverse | Off / H-Rev / V-Rev / HV-Rev | | Profile | Basic, Day & Night, Backlight, ITS, Indoor, User | | Alarm | (MD) 1 x output | | Remote Control Interface | Coaxial | | Protocol | NTSC/PAL: Pelco C (Coaxitron)
AHD: ACP (AHD Coax Protocol) | | Transmission Range | Video: 1640' (500 m)
(5C2V Coaxial Cable) | | | | Input Voltage/Current | Dual (24 VAC ±10% and 12 VDC ±10%) | | Power Consumption | 4.2 W (maximum) | | | | Operating Temperature | -22 to 131°F (-30 to 55°C) Start up should be done at above 14°F (-10°C). | | Operating Humidity | Less than 90% RH | | IP Rating | IP66 | | Vandal Resistance | IK10 | | | | Material | Aluminum | | Dimensions (Ø x H) | 5.39 x 4.18" (137 x 106.1 mm) | | Weight | 25.26 oz (716 g) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 6.5 x 6.5 x 5.0" |
