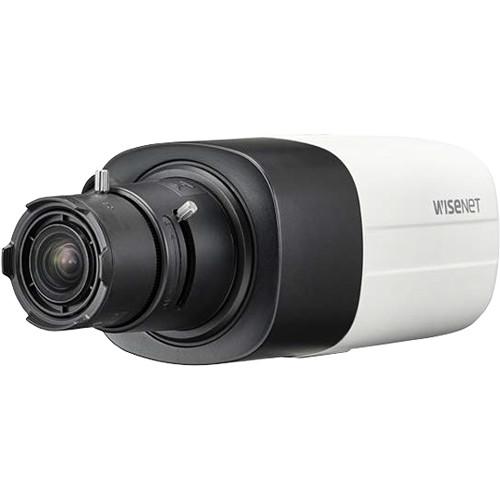

User Manual for Hanwha Techwin WiseNet HD HCB-6001 2MP AHD Box Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD HCB-6001 2MP
- Product category: Wired Analog & HD Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired Analog & HD Cameras
|
User manual for the Hanwha Techwin WiseNet HD HCB-6001 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The ivory WiseNet HD+ HCB-6001 2MP AHD Box Camera from Hanwha Techwin features a 1/2.8" CMOS sensor and supports a maximum resolution of 1920 x 1080. It also supports maximum transmission distance of 1640'. Its WDR function allows the camera to captures images under varied lighting conditions. - 1920 x 1080 resolution at 30 fps
- 120 dB WDR (Wide Dynamic Range)
- SSNRIV and motion detection
- Supports plug-and-play operation
- Dual power (24 VDC/ 12 VDC)
In the Box Hanwha Techwin WiseNet HD+ HCB-6001 2MP AHD Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD HCB-6001 2MP AHD Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet HD+ Specs | | | Imaging Device | 1/2.8" progressive scan CMOS sensor, 2 MP | | Total Pixels | 1945 x 1109, 2.16 MP | | Effective Pixels | 1945 x 1097, 2.13 MP | | Min. Illumination | Color: 0.09 lux (f/1.2)
B&W: 0.009 lux (f/1.2) | | S/N Ratio | 52 dB (AGC Off, Weight On) | | Video Output | BNC (AHD / TVI / CVI / CVBS selectable) | | Resolution | 1920 x 1080 | | Maximum Frame Rate | 30 fps at 1080p | | | | Focus Control | Simple focus / Manual, Button control (Manual Simple focus, Day & Night) | | Lens Type | Manual / DC auto Iris / P-iris | | Mount Type | C/CS | | | | On Screen Display | Multi-Language Support (16)
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | | Camera Title | Off / On (Displayed 15 characters) | | Day & Night | Auto (ICR) / External / Color / B&W | | Backlight Compensation | Off / User BLC / HLC / WDR | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNRIV (Off/On) | | Defog | AUTO / MANUAL / OFF | | Motion Detection | Off / On (4 zones) | | Privacy Masking | Off / On (4 zones rectangle) | | Gain Control | Off / Low / Middle / High / Very High | | White Balance | ATW / Outdoor / Indoor / Manual / AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1 sec to 1/12,000 sec | | Reverse | Off / H-Rev / V-Rev / HV-Rev | | Profile | Basic, Day & Night, Backlight, ITS, Indoor, User | | Alarm | 1 x (MD) output
1 x External D/N | | Remote Control Interface | Coaxial, RS-485 | | Protocol | Coax: Pelco C (coaxitron), ACP (AHD Coax Protocol)
RS-485: Samsung T/E, Pelco D/P, Panasonic Bosch, Honeywell, Vicon, GE, AD | | Transmission Distance | Video: (1640.4') 500 m (5C2V Coaxial cable) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | | | Input Voltage | Dual (24 VAC ±10% & 12 VDC ±10% ) | | Power Consumption | Maximum 6 W | | | | Material | Plastic | | Dimensions (W x H x D) | 2.9 x 2.6 x 4.9" (73.1 x 67.2 x 123.9 mm) | | Weight | 10.1 oz (287 g) |
