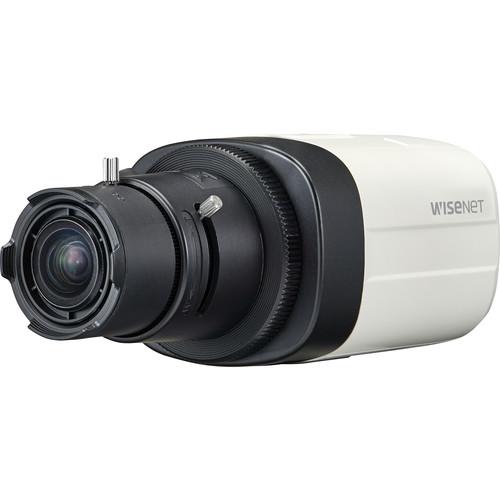

User Manual for Hanwha Techwin WiseNet HD HCB-7000 4MP AHD Box Camera with No Lens Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD HCB-7000 4MP
- Product category: Wired Analog & HD Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired Analog & HD Cameras
|
User manual for the Hanwha Techwin WiseNet HD HCB-7000 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Get the upper hand over challenging lighting conditions with the black-and-ivory WiseNet HD+ HCB-7000 4MP AHD Box Camera from Hanwha Techwin. Equipped with a 1/3" 4MP CMOS sensor, the HCB-7000 transmits video at resolutions up to 2560 x 1440 at 30 fps. It transmits color video in light as low as 0.16 lux, after which the integrated automatic IR cut filter switches to black and white down to 0.0009 lux. The HCB-7000 comes with built-in image enhancing features that include digital wide dynamic range and automatic white balance, and has DC auto iris capability. The HCB-7000 is designed for use with a separately available C/CS-mount lens. In the Box Hanwha Techwin WiseNet HD+ HCB-7000 4MP AHD Box Camera with No Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD HCB-7000 4MP AHD Box Camera with No Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin HCB-7000 Specs | | | Sensor | 1/3" 4 MP Progressive Scan CMOS Sensor | | Total Pixels | 2720 x 1536 | | Effective Pixels | 2688 x 1520 | | Minimum Illumination | Color: 0.16 Lux at f/1.2
B&W: 0.009 Lux at f/1.2 | | S/N Ratio | 52 dB (AGC Off, Weight On) | | Video Output | BNC (AHD)
CVBS for Installation (2-Pin Connector) | | Resolution | 2560 x 1440 | | Max. Frame Rate | NTSC: 30 fps at 4 MP | | | | Lens Type | Manual / DC Auto Iris (Lens Available Separately) | | Lens Mount | C/CS | | Focus Control | Manual | | | | Language Support | English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, and Turkish | | Day & Night | Automatic IR Cut Filter | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | D-WDR (Off/On) | | Digital Noise Reduction | 2D-DNR | | Motion Detection | Off/On (4 Zones) | | Privacy Masking | Off/On (2 Rectangular Zones) | | Gain Control | Off / Low / Middle / High / Very High | | White Balance | ATW/Outdoor/Indoor/Manual/AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1/12,000 to 1/30 Seconds | | Reverse | Off/H-Rev/V-Rev | | Alarm | 1 x Output (Motion Detection) | | Remote Control Interface | Coaxial | | Protocol | AHD: ACP (AHD Coax Protocol)
CVBS: Pelco C (Coaxitron)
RS-485: Samsung T, Pelco D/P | | Video Transmission Distance | 1640.4' / 500 m, over 5C2V Coaxial Cable | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | <90% RH | | | | Certifications and Compliance | FCC, UL, and CE | | | | Input Voltage | 24 VAC ±10% / 12 VDC ±10% | | Maximum Power Consumption | 3.6 W | | | | Material of Construction | Aluminum, Plastic | | Dimensions | 2.69 x 2.35" x 3.65" / 6.8 x 6.0 x 9.3 mm | | Weight | 0.41 lb / 186 g |
