User Manual for Hanwha Techwin WiseNet HD HCD-7010R 4MP AHD Dome Camera with Night Vision and 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD HCD-7010R 4MP
- Product category: Wired Analog & HD Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired Analog & HD Cameras
|
User manual for the Hanwha Techwin WiseNet HD HCD-7010R 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

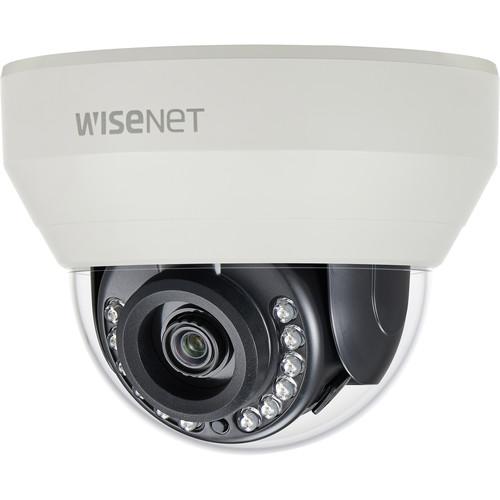

Product description Keep your premises monitored day and night with the ivory WiseNet HD+ HCD-7010R 4MP AHD Dome Camera with Night Vision from Hanwha Techwin. Equipped with a 1/3" 4MP CMOS sensor and a 2.8mm lens, the HCD-7010R captures video at resolutions of up to 2560 x 1440 at 30 fps in a 107 x 60° field of view. The camera is equipped with an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 66'. Image enhancements such as digital wide dynamic range and automatic white balance allow you to capture images in varying lighting conditions. The HCD-7010R is designed for plug and play installation and comes with mounting hardware and a video output cable. In the Box Hanwha Techwin WiseNet HD+ HCD-7010R 4MP AHD Dome Camera with Night Vision and 2.8mm Lens Screws Template Video Output Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD HCD-7010R 4MP AHD Dome Camera with Night Vision and 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin HCD-7010R Specs | | | Sensor | 1/3" 4 MP Progressive Scan CMOS Sensor | | Total Pixels | 2720 x 1536 | | Effective Pixels | 2688 x 1520 | | Minimum Illumination | Color: 0.26 Lux at f/1.8
B&W: 0 Lux with IR LED On | | S/N Ratio | 52 dB (AGC Off, Weight On) | | Video Output | BNC (AHD)
CVBS for Installation (2-Pin Connector) | | Resolution | 2560 x 1440 | | Max. Frame Rate | NTSC: 30 fps at 4 MP
PAL: 25 fps at 4 MP | | | | Horizontal | 0 to 350° | | Vertical | 0 to 67° | | Rotation | 0 to 355° | | | | Focal Length | 2.8mm, Fixed | | Maximum Aperture | f/1.8 | | Field of View | Horizontal x Vertical: 107 x 60° | | Minimum Object Distance | 1.64' / 0.5 m | | Mount | Board-In | | | | Language Support | English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, and Turkish | | Day & Night | Automatic IR Cut Filter | | Backlight Compensation | Off / User BLC / HLC | | Wide Dynamic Range | D-WDR (Off/On) | | Digital Noise Reduction | 2D-DNR | | Motion Detection | Off/On (4 Zones) | | Privacy Masking | Off/On (2 Rectangular Zones) | | Gain Control | Off / Low / Middle / High / Very High | | White Balance | ATW/Outdoor/Indoor/Manual/AWC (1800 to 10,500K) | | Electronic Shutter Speed | NTSC: 1/30 to 1/12,000 Seconds
PAL: 1/25 to 1/12,000 Seconds | | Reverse | Off/H-Rev/V-Rev | | Remote Control Interface | Coaxial | | Protocol | AHD: ACP (AHD Coax Protocol)
CVBS: Pelco C (Coaxitron) | | IR Distance | 65.62' / 20 m | | Video Transmission Distance | 1640.4' / 500 m, over 5C2V Coaxial Cable | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | <90% RH | | | | Input Voltage | 12 VDC ±10% | | Maximum Power Consumption | 5 W | | | | Certifications and Compliance | FCC, UL, and CE | | | | Material of Construction | Plastic | | Dimensions (Ø x H) | 4.33 x 3.39" / 110.1 x 86.1 mm | | Weight | 0.53 lb / 240 g | | | | Package Weight | 0.885 lb | | Box Dimensions (LxWxH) | 5.7 x 5.65 x 4.7" |
