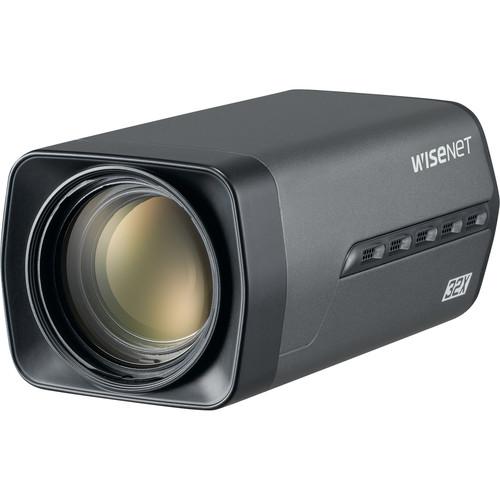

User Manual for Hanwha Techwin WiseNet HD HCZ-6320 2MP AHD Box Camera with 4.44-142.6mm Lens Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD HCZ-6320 2MP
- Product category: Wired Analog & HD Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired Analog & HD Cameras
|
User manual for the Hanwha Techwin WiseNet HD HCZ-6320 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Keep a close watch on your property with the dark gray WiseNet HD+ HCZ-6320 2MP AHD Box Camera from Hanwha Techwin. Featuring a 1/2.8" 2.38MP CMOS sensor and a 4.44-142.6mm 32x varifocal lens, the HCZ-6320 captures video at resolutions up to 1920 x 1080 at 30 fps in a 62.8 x 36.8° to 2.23 x 1.26° field of view. The camera captures color images down to 0.2 lux and uses a built-in automatic IR cut filter to switch to B&W for low-light vision down to 0.01 lux.
The camera has image enhancement features that include a wide dynamic range and automatic white balance, allowing you to capture images in varying lighting conditions. Moreover, four regions of motion detection and 12 privacy masking zones offer customization within the camera's field of view. Included in the package are cables, a camera mount, and mounting hardware. In the Box Hanwha Techwin WiseNet HD+ HCZ-6320 2MP AHD Box Camera with 4.44-142.6mm Lens 8-Pin Cable Assembly Camera Mount Screws for Camera Mount Cable for Testing Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD HCZ-6320 2MP AHD Box Camera with 4.44-142.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin HCZ-6320 Specs | | | Sensor | 1/2.8" 2.38 MP Progressive Scan CMOS Sensor | | Total Pixels | 1952 x 1116 (2.18 MP) | | Effective Pixels | 1944 x 1104 (2.14 MP) | | Minimum Illumination | At f/1.6, 1/30 Sec Shutter Speed:
0.2 Lux Color
0.01 Lux B&W | | S/N Ratio | 50 dB | | Video Outputs | BNC (AHD): Up to 1920 x 1080
DIP (CVBS NTSC): 640 x 480 | | Max. Frame Rate | NTSC: 30 fps at 1920 x 1080 | | | | Focal Length | 4.44-142.6mm Varifocal | | Zoom | Optical: 32x
Digital: 16x | | Aperture | f/1.6 to 4.4 | | Field of View (H x V) | 62.8 x 36.8° to 2.23 x 1.26° | | Minimum Object Distance | Wide Angle: 4.92' / 1.5 m
Telephoto: 6.56' / 2 m | | Focus Control | Auto / Manual / One Push | | Lens Type | DC Auto Iris | | Mount | Board-In | | | | Language Support | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, and Russian | | Camera Title | Off/On (Up to 15 Characters) | | Day & Night | Automatic IR Cut Filter | | Backlight Compensation | Off/BLC/HLC/WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Off/On) | | Digital Noise Reduction | SSNRIII 2D + 3D Noise Filter (Off/On) | | Digital Image Stabilization | Off/On | | Defog | Off/Auto/Manual | | Motion Detection | Off/On (4 Rectangular Zones) | | Privacy Masking | Off/On (12 Rectangular Zones) | | Gain Control | Off/Low/Middle/High | | White Balance | ATW/AWC/Manual/Indoor/Outdoor/Mercury/Sodium | | Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (1/33,000 to 2 Seconds) | | Flip / Mirror | Off/On | | Intelligent Video Analytics | Detection, Tracking, Fixed Moved, Tampering | | Remote Control Interface | RS-485, Coaxial | | Protocols | RS-485: Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, Vicon, Honeywell
Coaxial: ACP (AHD Coax Protocol) | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | <90% RH | | | | Certifications and Compliance | FCC, UL, and CE | | | | Input Voltage | 12 VDC | | Maximum Power Consumption | 6 W | | | | Material of Construction | Metal | | Dimensions | 2.83 x 2.36 x 5.39" / 7.2 x 6.0 x 13.7 cm | | Weight | 1.05 lb / 476 g |
