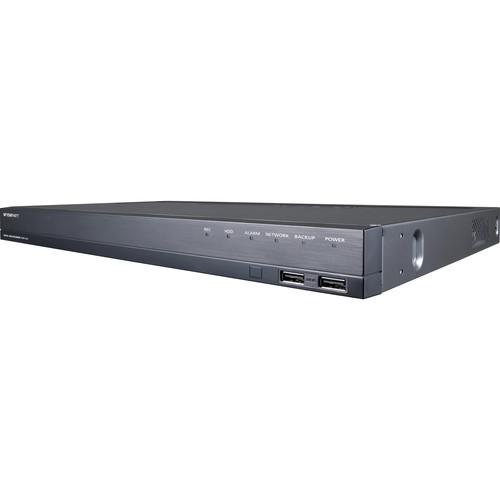

User Manual for Hanwha Techwin WiseNet HD HRD-442 4-Channel 4MP AHD DVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD HRD-442 4-Channel
- Product category: Digital Video Recorders (DVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Digital Video Recorders (DVRs)
|
User manual for the Hanwha Techwin WiseNet HD HRD-442 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Stream and record up to four video channels with the WiseNet HD+ HRD-442 AHD DVR from Hanwha Techwin at resolutions of up to 4MP. Equipped with two SATA ports, each supporting an HDD up to 8TB, this DVR can accommodate up to 16TB of HDD storage (4TB preinstalled). The recorder supports AHD cameras up to 4MP and HD-TVI/CVI cameras up to 2MP via its BNC interface. With the help of H.264 compression, file sizes are kept manageable while recording and playback quality are maintained.
The DVR's interface includes ports for two-way audio communication, as well as HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video. - VGA output at up to 1920 x 1080 resolution
- HDMI output at up to 4K UHD resolution (3840 x 2160)
- Supports AHD cameras up to 4MP
- Supports HD-TVI and HD-CVI cameras up to 2MP
- Also supports SD analog cameras (NTSC/PAL)
- Recording rates of up to 60 fps (NTSC) and 50 fps (PAL) at 4MP resolution
- Recording rates of up to 120 fps (NTSC) and 100 fps (PAL) at 1080p resolution
- Spot composite output channel for secondary monitor
- 4-channel audio input and 1-channel audio output
- Pelco C and ACP coax protocols
- Remote monitoring via iOS and Android devices
- 2 x USB ports on front panel
In the Box Hanwha Techwin WiseNet HD+ HRD-442 4-Channel 4MP AHD DVR with 4TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD HRD-442 4-Channel 4MP AHD DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin HRD-442 Specs | | | Video Inputs | 4 x BNC
AHD (4 MP), HD-TVI (2 MP), HD-CVI (2 MP), NTSC/PAL | | Video Resolution | 2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480, 960 x 576, 704 x 576 | | Live Frame Rate | NTSC: Up to 120 fps
PAL: Up to 100 fps | | Live Resolution | 2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480, 960 x 576, 704 x 576 | | Multi-Screen Display | 1, 4, Sequence, Picture-in-Picture | | | | Compression | H.264 | | Recording Rate | NTSC:
Up to 60 fps at 4 MP
Up to 120 fps at 1920 x 1080
Up to 120 fps at 1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240
PAL:
Up to 50 fps at 4 MP
Up to 100 fps at 1920 x 1080
Up to 100 fps at 1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288 | | Mode | NTSC: Manual, Schedule (Continuous, Event), Event (Pre, Post), Time Lapse (1 to 30 fps)
PAL: Manual, Schedule (Continuous, Event), Event (Pre, Post), Time Lapse (1 to 25 fps) | | Event | Video Loss, Motion (Level 1 to 10), Alarm Input (16), Tampering (Level: Low, Medium, High) | | Overwrite Modes | Continuous | | Pre-Alarm | Up to 30 Sec (5, 10, 20, 30 Sec) | | Post-Alarm | Up to 6 hours (5/10/20/30 Sec, 1/3/5/10/20 Minutes, 1/2/3/4/5/6 Hours) | | | | Search Modes | Date/Time, Event, Backup, POS (SD Signal Only), Motion | | Playback Function | Fast Forward/Backward (2, 4, 8, 16, 32, 64x)
Slow Forward/Backward (1/2, 1/4, 1/8x)
Step Forward/Backward | | | | Support | IPv4 | | Transmission Speed | Record (Main) Stream
4 MP: 15 fps per Channel
1080p/720p/WD1/4CIF/CIF: 30 fps per Channel (NTSC), 25 fps per Channel (PAL)
Network (Sub) Stream
WD1/4CIF: 12 fps per Channel
2CIF/CIF: 30 fps per Channel (NTSC), 25 fps per Channel (PAL) | | Bandwidth | Up to 64 Mb/s | | Bandwidth Control | Selectable | | Streaming | Record Stream and Network Stream Selectable (at Monitoring Viewer) | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP | | Monitoring | SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer | | | | Platform | iOS and Android | | Protocol Support | RTP, RTSP, HTTP | | Control | Live: 8 Channels
Multi-Profile Support Playback: 1 Channel | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | | | HDD Capacity | 2 x SATA (Up to 8 TB per Drive)
4 TB Preinstalled | | Backup | 2 x USB, Front
File Format: BU (DVR Player), SEC (Include Player), AVI | | | | Password Protection | 1 Admin, 10 Groups, 10 Users per Group | | Data Authentication | Watermark | | | | Monitors | 1 x VGA: 1280 x 720, 1280 x 1024, 1920 x 1080
1 x HDMI: 1280 x 720, 1280 x 1024, 1920 x 1080, 2K (2560 x 1440), 4K (3840 x 2160) | | Spot Composite | 1 x BNC
Included OSD, Multi-Mode Support | | Audio | 4-Channel Line In, 1-Channel Line Out
Compression: G.711
Sampling Rate: 8 kHz | | Alarm | 4 x Inputs (NO/NC)
1 x Relay Output (NO/NC)
Rating: 30 VDC / 2 A, 250 VAC / 0.25 A | | Email Alert | Remote Notification via Email | | Connections | Ethernet: 1 x RJ45 10/100/1000Base-T
Serial Interface: RS-485 (Full Duplex) for PTZ, Samsung System Keyboard
USB: 2 x USB Ports (Front)
Application Support: Mouse, IR Remote Controller
RS-485 Protocol: Samsung-T/E, Pelco D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
Coax Protocol: Pelco C, Coaxitron (NTSC/PAL), ACP (AHD) | | | | GUI | English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Dutch, Portuguese, Swedish, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), and Thai | | Web Browser | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, and Thai | | | | Input Power | 100-250 VAC ±10%, 50/60 Hz | | Power Consumption | With 1 x 1 TB HDD: 18 W Maximum | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 85% RH | | | | Dimensions | 14.57 x 1.73 x 12.60" / 37.0 x 4.4 x 32.0 cm | | Weight | 6.26 lb / 2.84 kg Approx., with HDDs |
