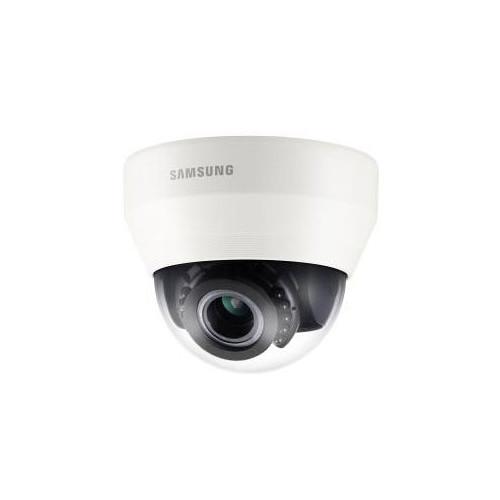

Product description The WiseNet HD+ SCD-6083R 1080p AHD Dome Camera from Hanwha Techwin uses a 1/3" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The camera's 2.8-12mm varifocal lens delivers a 102 to 32.2° horizontal field of view. The BNC video output provides selectable AHD and CVBS video signals. This dome camera has a video transmission range up to 1640'. - Plug-and-play installation
- IR cut filter enables day and night functionality
- Camera pivots from 0 to 350° horizontally and from 0 to 67° vertically
- 1.64' minimum object distance
- Digital wide dynamic range
- Digital noise reduction (SSNRIV)
- White balance modes include ATW, outdoor, indoor, manual, and AWC
- Motion detection for up to four zones
- Privacy masking for up to four rectangular zones
- Dual 24 VAC and 12 VDC power
- FCC, cUL, and CE certified
In the Box Hanwha Techwin WiseNet HD+ SCD-6083R 1080p AHD Dome Camera with Night Vision 2 x Screws Template Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD SCD-6083R 1080p AHD Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SCD-6083R Specs | Imaging Device | 1/3" 2 MP Progressive Scan CMOS Sensor | | Total Pixels (H x V) | 1956 x 1266, 2.47 MP | | Effective Pixels (H x V) | 1944 x 1092, 2.12 MP | | Minimum Illumination | Color: 0.11 Lux at f/1.4
B&W: 0 Lux with IR | | S/N Ratio | 52 dB with AGC Off and Weight On | | Video Output | BNC (AHD & CVBS Selectable) | | Resolution | 1920 x 1080 | | Maximum Frame Rate | 1920 x 1080 at 30 fps
1280 x 720 at 30 fps | | Lens | 2.8-12mm | | Optical Zoom | 4.3x | | Maximum Aperture | f/1.4 | | Field of View | Horizontal: 102 to 32.2°
Vertical: 54 to 18.2°
Diagonal: 121 to 38° | | Minimum Object Distance | 1.64' / 0.5 m | | Focus Control | Manual | | Iris Operation | DC Auto Iris | | Mount Type | Board-In | | Angle Adjustments | Horizontal: 0 to 350°
Vertical: 0 to 67°
Rotation: 0 to 355° | | OSD | English
Japanese
Spanish
French
Portuguese
Korean
German
Italian
Russian
Polish
Czech
Romanian
Serbian
Swedish
Danish
Turkish | | Camera Title | On, Off (Up to Fifteen Characters Displayed) | | Day & Night | Auto IR Cut Filter, Color, B&W | | Backlight Compensation | Off, User BLC, HLC | | Wide Dynamic Range | Digital Wide Dynamic Range | | Digital Noise Reduction | SSNRIV | | Defog | Off, Auto, Manual | | Motion Detection | Off, On (Four Zones) | | Privacy Masking | Off, On (Four Rectangular Zones) | | Gain Control | Off, Low, Middle, High, Very High | | White Balance | ATW, Outdoor, Indoor, Manual, AWC (1800 to 10,500K) | | Electronic Shutter Speed | 1/12,000 to 1 Second | | Reverse | Off, Horizontal Reverse, Vertical Reverse, Horizontal/Vertical Reverse | | Profile | Basic, Day & Night, Backlight, Indoor, User, ITS | | Alarm | (MD) Output 1 | | Remote Control Interface | Coaxial Control | | Protocol | Coax (NTSC/PAL): Samsung CCVC, Pelco C (Coaxitron), AHD/ACP (AHD Coax Protocol) | | IR Range | 65.62' / 20 m | | Video Transmission Distance | 1640.42' / 500 m (75-5 Coaxial Cable) | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | <90 % RH | | Power Input | Dual 24 VAC and 12 VDC ±10% | | Power Consumption | Maximum 4.2 W | | Material | Plastic | | Dimensions | 4.72 x 3.88" / 119.8 x 98.5 mm | | Weight | 0.67 lb / 304 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.4 x 6.4 x 5.1" |
