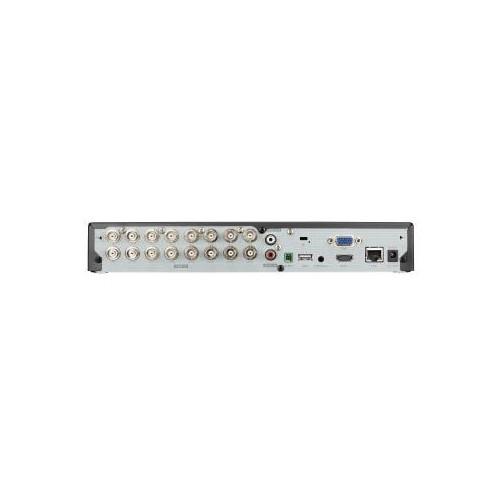

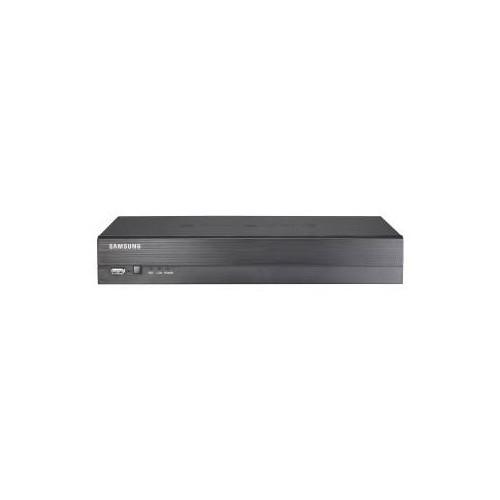

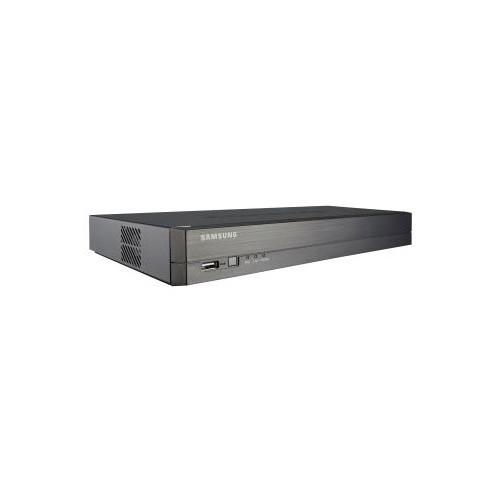

User Manual for Hanwha Techwin WiseNet HD SRD-1684 16-Channel 1080p AHD DVR Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet HD SRD-1684 16-Channel
- Product category: Digital Video Recorders (DVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Digital Video Recorders (DVRs)
 |
User manual for the Hanwha Techwin WiseNet HD SRD-1684 16-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The WiseNet HD+ SRD-1684 16-Channel 1080p AHD DVR from Samsung supports recording and playback of analog video signals up to 1920 x 1080. It supports recording using H.264 compression for efficient usage of storage space. The DVR consists of 1 channel for audio input and output, and features backup of data via 2 USB ports. This DVR supports PTZ control via the coaxial cable using Pelco C protocols. It includes 4TB of storage space. - 16-channel 1080p (720p real time)
- Up to 240/200 (1080p) fps recording rate
- 1 channel audio input and output
- PTZ control via coaxial cable using Samsung T/E, Pelco C, and ACP protocols
- Smartphone support (Android, iOS)
- Enhanced network bandwidth up to 32 Mb/s
In the Box Hanwha Techwin WiseNet HD+ SRD-1684 16-Channel 1080p AHD DVR (4TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD SRD-1684 16-Channel 1080p AHD DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SRD-1684 Specs | | | Inputs | 16-channel BNC, 1080p / 720p AHD and analog camera | | Resolution | 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / 928 x 576, 704 x 576 | | | | Frame Rate | 480 fps at 1920 x 1080 / 480 fps at 1280 x 720 / 480 fps at 928 x 480 | | Resolution | 1920 x 1080 (Full HD) / 1280 x 720 (HD) / 928 x 480 (wD1) | | Multi-Screen Display | 1 / 4 / 7 / 9 / 13 / 16 / 16A / Sequence / PIP | | | | Operating System | Embedded Linux | | Compression | H.264 | | | | Recording Rate | Up to 240 fps at 1920 x 1080 (NTSC) and up to 200 fps at 1920 x 1080 (PAL)
Up to 480 fps at 1280 x 720 (NTSC) and up to 400 fps at 1280 x 720 (PAL)
Up to 480 fps at 928 x 480 (NTSC) and up to 400 fps at 928 x 480 (PAL) | | Mode | NTSC: Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 to 30 fps)
PAL: Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 to 25 fps) | | Event | Video loss, Motion (level 1 to 10), Alarm, Tampering | | Overwrite Modes | Continuous | | Pre-Alarm | Off / 5 sec | | Post-Alarm | Up to 6 hours (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hours) | | | | Search Modes | Date/Time, Event, Backup, POS, Motion All search include preview function | | Playback Function | Fast forward/backward (2x, 4x, 8x, 16x, 32x, 64x)
Slow forward/backward (1/2x, 1/4x, 1/8x)
Step forward/backward (2x, 4x, 8x, 16x, 32x, 64x) Backward play with iframe only | | | | Support | IPv4 | | Transmission Speed | 4CIF / 2CIF / CIF (NTSC: 120 / 240 / 480 fps, PAL: 100 / 200 / 400 fps) | | Bandwidth | Up to 32 Mb/s | | Bandwidth Control | Selectable | | Streaming | H.264 (4CIF / 2CIF / CIF selectable) | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP, UPnP | | Monitoring | SmartViewer, Webviewer, Mobile viewer, SSM (CMS) | | | | Platform | Android, iOS | | Protocol Support | RTP, RTSP, HTTP, CGI | | Max. Remote Users | Live 2, Playback 1 | | | | HDD Capacity | 4 TB | | Backup | USB 2.0, 2 ports (Front 1, Back 1)
File Format: BU (DVR player), EXE (Include player), AVI | | | | Password Protection | 1 Admin, 10 Groups, 10 Users per 1 group | | Data Authentication | Watermark | | | | Monitors | VGA: 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
HDMI: 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080) | | Audio | Inputs/Output: 1 channel line input/output
Compression: G.711
Sampling Rate: 8 kHz | | Alarm | Remote notification via email | | Connections | Ethernet: 1 x RJ45 10/100/1000Base-T
Serial Interface: RS-485
USB: 2 x USB 2.0
Application Support: Mouse, Remote controller
RS-485 Protocol: Samsung-T/E, Pelco D/P, Panasonic, Phillips, AD, VICON, GE
Coax Protocol (NTSC/PAL): PTZ Control via coaxial cable (Pelco C, Coaxitron), AHD (Coaxitron): ACP (AHD Coax Protocol) | | Language | English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai, Taiwanese (25 languages) | | | | Video Input | 656.2' (200 m) | | | | Input Voltage | 12 VDC adapter, 100 to 250 VAC ±10%, 50/60 Hz | | Power Consumption | Maximum 23 W (with 1 x HDD) | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 85% RH | | | | Dimensions (W x H x D) | 17.3 x 1.9 x 8.2" (44 x 4.8 x 20.8 cm) | | Weight | 2.6 lb (1.2 kg) with no HDD |
