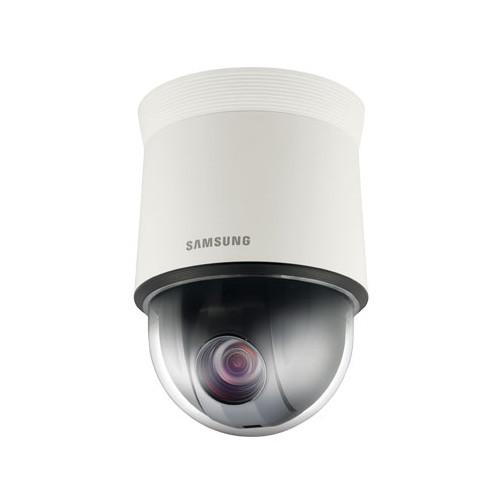

Product description The WiseNet III 2MP 32x PTZ Network Dome Camera from Samsung uses a 1/2.8" CMOS sensor and a 4.44-142.6mm varifocal lens to capture images at a resolution up to 1920 x 1080. The camera supports H.264 and MJPEG compression formats with simultaneous multiple streaming capability. It offers WDR of up to 120 dB for capturing images under varied lighting conditions, including in extreme backlight and low light. It also comes with a built-in SD/SDHC/SDXC card slot for on-board storage. For better protection, the camera can be used with a separately available vandal-resistant SHP-3701H housing. - 1080p resolution with 16:9 aspect ratio
- 32x optical zoom and 16x digital zoom
- ICR filter for day and night operation
- Intelligent video analytics
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet III 2MP 32x PTZ Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III 2MP 32x PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNP-6321 Specs | | | Imaging Device | 1/2.8" 2.38 MP CMOS sensor | | Total Pixels (H x V) | 1952 x 1116, 2.18 MP | | Effective Pixels (H x V) | 1944 x 1104, 2.14 MP | | Scanning System | Progressive | | Minimum Illumination | Color:
0.3 lux (1/30 sec, f/1.6, 50 IRE, AGC high), 0.005 lux (2 sec, f/1.6, 50 IRE, AGC high)
0.15 lux (1/30 sec, f/1.6, 30 IRE), 0.0025 lux (2 sec, f/1.6, 30 IRE)
B&W:
0.03 lux (1/30 sec, f/1.6, 50 IRE, AGC high), 0.0005 lux (2 sec, f/1.6, 50 IRE, AGC high)
0.015 lux (1/30 sec, f/1.6, 30 IRE), 0.00025 lux (2 sec, f/1.6, 30 IRE) | | SNR | 50 dB | | Video Output | CVBS: 1 V p-p/75 Ohms composite, 720 x 480, for installation | | | | Focal Length | 4.44-142.6mm | | Zoom | Optical 32x | | Maximum Aperture Ratio | Wide to Tele: f/1.6 to 4.4 | | Angular Field of View | Horizontal: 62.8 (wide) to 2.23° (tele)
Vertical: 36.8 (wide) to 1.26° (tele) | | Minimum Object Distance | Wide: 4.92' (1.5 m)
Tele: 6.56' (2 m) | | Focus Control | Auto / manual / one push | | Lens | DC auto iris | | Mount Type | Board-in type | | | | Pan Range | 360° endless | | Tilt Range | 210° (-15 to 195°) | | Pan Speed | Preset: 700°/sec
Manual: 0.024 to 120°/sec | | Sequence | 255 x Preset
Swing
6 x Group
Trace
1 x Tour
Auto run
Schedule | | Preset Accuracy | ±0.2° | | Azimuth | Yes (E / W / S / N / NE / NW / SE / SW) | | | | Camera Title | Off / On (displays up to 45 characters) | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 rectangular zones) | | Privacy Masking | Off / On; (32 rectangular zones) with zoom threshold mosaic option | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 16x | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, (dis)appear, audio detection, face detection | | Alarm I/O | 4 x Input
2 x Output (relay) | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and email, Notification via email, TCP and HTTP, local storage (SD/SDHC/ SDXC) or NAS recording at network disconnect & event (alarm triggers), external output | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.264 (MPEG-4 part 10 / AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264:
Maximum 60 fps at all resolutions
MJPEG:
Maximum 15 fps at 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Maximum 30 fps at 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Smart Codec | Yes | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Max Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM): 8 kHz
G.711: 8 kHz
G.726: 16 / 24 / 32 / 40 kbps | | Audio Communication | Bi-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication; IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | Maximum User Access | 10 users at unicast mode | | Edge Storage | SD/SDHC/SDXC slot for memory card
Motion images recorded to SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage) | | Application Programming Interface | ONVIF Profile S, SUNAPI (HTTP API), SVNP 1.2, WiseNet Open platform | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / Vista / 7 / 8, Mac OSX 10.7
Supported Browser: Microsoft Internet Explorer (version 8 to 11), Mozilla Firefox (version 9 to 19), Google Chrome (version 15 to 25), Apple Safari (version 6.0.2 (Mac OSX 10.8, 10.7 only), 5.1.7) | | CMS | SmartViewer, SSM | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | Less than 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | Less than 90% RH | | | | Input Voltage | 24 VAC ±10%, PoE+ (IEEE 802.3at class 4) | | Power Consumption | Maximum 20 W | | | | Material | Plastic + metal | | Dimensions | 5.98 x 8.58" (15.20 x 21.8 cm) | | Weight | 3.97 lb (1.8 kg) |
