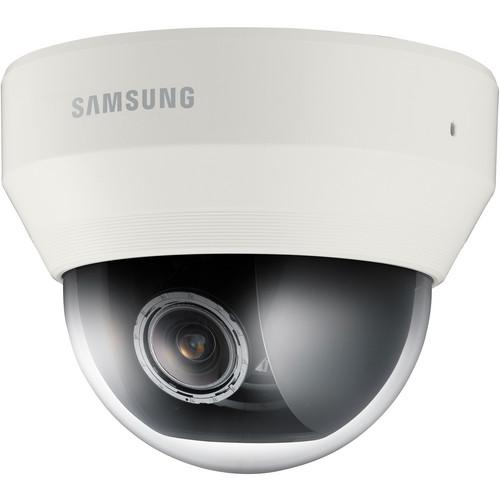

Product description The WiseNet III 2MP Dome Camera from Samsung has a 2MP 1.2/8" progressive-scan CMOS sensor that allows the camera to capture 1920 x 1080 resolution video at up to 60 fps. Wide Dynamic Range (WDR) compensates for overexposed and dark scenes to produce clear images even in low light. This camera features a 3-8.5mm motorized varifocal lens with a wide 105.5-37.1° horizontal field of view for coverage of large areas. PoE technology helps to eliminate extra cables by supplying connection to an NVR and power in one Ethernet cable. A microSD card slot can support up to a 64GB microSD card (available separately) for edge storage. - 2MP 1/2.8" progressive-scan CMOS sensor captures 1920 x 1080 resolution video at up to 60 fps
- 3-8.5mm varifocal lens with 2.8x motorized zoom
- 3-axis adjustment for installation
- Defog to help eliminate moisture around lens
- H.264 and M-JPEG compression and dual-streaming
- microSD card slot supports up to a 64GB microSD card (available separately)
In the Box Hanwha Techwin WiseNet III 2MP Dome Camera Software CD Power Terminal Block Alarm Cable 2 x Screws Mounting Template Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III 2MP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-6084 Specs | | | Imaging Device | 2.38 MP 1/2.8" progressive scan CMOS sensor | | Total Pixels | 1952 x 1116 | | Effective Pixels | 1944 x 1104 | | Minimum Illumination | Color: 0.1 lux (f/1.2, 50 IRE), 0.0017 lux (30 fps 2 sec, 50 IRE)
B&W: 0.01 lux (f/1.2, 50 IRE) | | S / N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms composite, 704 x 480, for installation, DIP connector type | | | | Focal Length | 3-8.5mm | | Aperture | f/1.2 | | Angular Field of View | Horizontal: 105.5 to 37.1°
Vertical: 57.5 to 21° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (motorized varifocal) / manual
Remote control via network, button control (manual, simple focus) | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | Pan Range | 0 to 354° | | Tilt Range | 0 to 67° | | Rotate Range | 0 to 355° | | | | Camera Title | Off / On (displayed up to 45 characters) | | Day & Night | Auto (ICR) / color / B&W / external / schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (off / on) | | Digital Noise Reduction (DNR) | SSNRIII (2D and 3D noise filter) (off / on) | | Digital Image Stabilizer | Off / on
Defog: Off / auto / manual | | Motion Detection | Off / On (4 points polygonal zones) | | Privacy Masking | Off / on (32 zones with 4 points of polygonal) | | Sens-up (Frame Integration) | Off / auto (2-60x) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 s) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear / disappear, audio detection, face detection with metadata | | Alarm I/O | 1 x input, 1 x output | | Alarm Triggers | Motion detection, audio detection, face detection, video analytics, alarm input, and network disconnection | | Alarm Events | File upload via FTP and email, notification via email Local storage (SD/SDHC/SDXC) recording at network disconnected & event (alarm triggers), external output | | | | Ethernet | RJ45 Ethernet 10/100Base-T | | Video Compression Format | H.264 (MPEG-4 part 10/AVC) and MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 60 fps at all resolutions
MJPEG: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 maximum 15 fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 maximum 30 fps | | Video Quality Adjustment | H.264: Compression level, target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio I/O | Mic Line-in selectable via UI
Line-out (Mono, 1 Vrms), 3.3 VDC (4 mA) powered 2kΩ | | Audio Compression Format | 2 kOhms G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz G.726: 16 kbps, 24 kbps, 32 kbps, and 40 kbps | | Audio Communication | Two-way, built-in microphone | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, and Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Storage | microSD slot for up to a 64 GB microSD card (available separately) | | ONVIF | ONVIF profile S, HTTP API v2.0, and SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish, and Norwegian | | Web Viewer | Supported OS: Windows XP, Vista, 7, 8
Mac OS X 10.7
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 25)
Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) (Mac OS X only) | | Central Management | Software: SmartViewer, SSM | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Relative Humidity | < 90% | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Non-operating Relative Humidity | < 90% RH | | | | Input Voltage/Current | 12 VDC ± 10%, PoE (IEEE802.3af, Class3) | | Power Consumption | Maximum 8.79 W (12 VDC)
Maximum 9.57 W (PoE, Class3) | | | | Material | Body: Plastic | | Dimensions (Ø x H) | 5.2 x 4.24" (132.1 x 107.6 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 6.2 x 6.1 x 5.2" |
