User Manual for Hanwha Techwin WiseNet III 2MP Network Door Jamb Camera with Audio Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet III 2MP Network
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet III 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

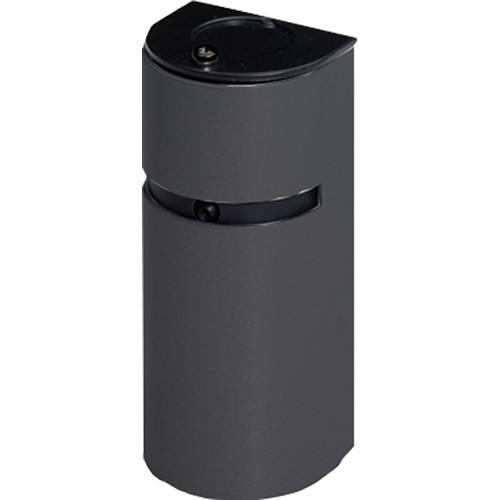

Product description The black WiseNet III 2MP Network Door Jamb Camera from Hanwha Techwin can be attached to standard door frames. It features a 1/2.8" progressive scan CMOS sensor and fixed 4.6mm pinhole lens for capturing videos at a maximum resolution of 1920 x 1080. The camera supports intelligent video analytics features such as tampering, virtual line, enter/exit, disappear, audio detection, and face detection with metadata. - Supports resolutions up to 1920 x 1080 at 30 fps
- Fits standard door frames
- Curved surface with 180° HFOV camera adjustment
- H.264, MJPEG, and dual codec
- 120 dB WDR (Wide Dynamic Range)
- Intelligent Video analysis
- microSD/SDHC/SDXC memory slot (card sold separately)
In the Box Hanwha Techwin WiseNet III 2MP Network Door Jamb Camera with Audio Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III 2MP Network Door Jamb Camera with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin Wisenet III Specs | | | Imaging Device | 1/2.8" progressive scan CMOS sensor, 2.38 MP | | Total Pixels | 1952 x 1116 | | Effective Pixels | 1944 x 1104 | | Minimum Illumination | Color: 0.3 lux (1/30 sec, f/2.5, 50IRE) | | Video Output | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation DIP connector type | | | | Focal Length | 4.6mm pinhole | | Maximum Aperture Ratio | f/2.5 | | Field of View | Horizontal: 71°
Vertical: 38° | | Minimum Object Distance | 0.98' (0.3 m) | | Mount Type | RJ12 connected with main unit | | | | Camera Title | Off / on (displayed up to 45 characters) | | Day and Night | Auto (electrical) / Color / B&W / Schedule | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Off / On) | | Digital Noise Reduction | SSNRIII (2D + 3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / on | | Defog | Off / Auto / Manual | | Motion Detection | Off / on (4 x 4 points polygonal zone) | | Privacy Masking | Off / on (32 zones with 4 points of polygonal) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter / exit, (dis)appear, audio detection, and face detection with metadata | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Motion detection, alarm input, video analytics, network disconnection, and audio detection | | Alarm Events | File upload via FTP and email, notification via email, local storage (SD/SDHC/SDXC), or NAS recording at event (alarm triggers), and external output | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264:
Maximum 30 fps at all resolutions
MJPEG:
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 at maximum 15 fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 at maximum 30 fps | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | Audio Input | Selectable (mic input / line input),
Supply Voltage: 2.5 VDC (4 mA),
Input Impedance: Approximately 2 kOhms | | Audio Output | Line output (3.5 mm stereo mini jack),
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps | | Audio Communication | Bi-directional audio (2-way) | | IP | IPv4, IPv6 | | Protocol | TTCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, and Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Edge Storage | microSD/SDHC/SDXC: Motion Images recorded in the SD/SDHC/SDXC memory card (card sold separately) can be downloaded
NAS (Network Attached Storage) | | Application Programming Interface | ONVIF profile S, HTTP API (SUNAPI) 2.0, and SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Romanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, and Norwegian | | Web Viewer | Supported OS: Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Management Software | Central Management Software: Smart Viewer, SSM | | | | Input Voltage/Current | PoE (IEEE 802.3af), 12 VDC | | Power Consumption | PoE: 7.5 W (maximum), 12 VDC: 6.5 W (maximum) | | | | Temperature | Operating Temperature: 14 to 131°F (-10 to 55°C)
Storage Temperature: -22 to 140°F (-30 to 60°C) | | Humidity | Operating and Storage Humidity: Less than 90% RH | | | | Material | Powder-coated aluminum cover, powder-coated steel frame, and plastic top cap | | Dimensions (W x H x D) | Door Jamb: 1.7 x 1.4 x 6" (43.6 x 35 x 152.4 mm)
Body: 3.39 x 5.16 x 1.1" (86 x 131.1 x 28 mm) | | Weight | 1.6 lb (0.72 kg) |
