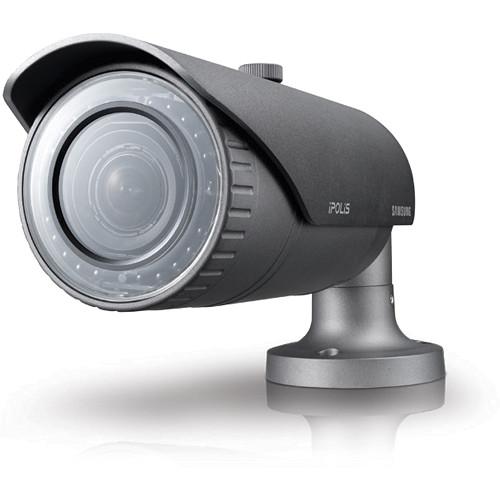

Product description The WiseNet III 3MP Outdoor Bullet Camera from Samsung can capture 2048 x 1536 resolution video at up to 30 fps thanks to its 1/2.8" progressive scan CMOS sensor. A mechanical IR cut filter and 20 IR LEDs help produce clear images at night from up to 98.4' away. This bullet camera features a motorized 3-8.5mm varifocal lens that provides a wide 100.12° wide horizontal field of view. PoE technology eliminates the need for additional cable runs by combining a connection to the NVR and power into a single Ethernet cable. The IP66- and IK10-rated housing makes this camera suitable for outdoor use and vandal resistant. - 3MP 1/2.8" progressive-scan CMOS sensor captures 2048 x 1536 resolution video at up to 30 fps
- Motorized 3-8.5mm varifocal lens
- 100.12° wide horizontal field of view
- 20 IR LEDs allow the camera to capture clear images at night from up to 98.4' away
- Included 4GB microSD card allows for edge storage
- IP66- and IK10-rated enclosure
In the Box Hanwha Techwin Wisenet III 3MP Outdoor Bullet Camera with Night Vision Software CD Sunshield with Holder L Wrench Monitor Testing Cable Mounting Hardware Brochure PDF 326.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin Wisenet III 3MP Outdoor Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNO-7084R Specs | | | Imaging Device | 3.2 MP 1/2.8" progressive scan CMOS sensor | | Total Pixels | 2065 x 1565 | | Effective Pixels | 2065 x 1553 | | Minimum Illumination | Color: 0.1 Lux (f/1.2, 50 IRE), 0.06 Lux (f/1.2, 30 IRE)
B&W: 0 Lux (f/1.2, 50 IRE), 0 Lux (f/1.2, 30 IRE) | | S / N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p, 75 Ohms (composite, 720 x 480) for installation | | | | Focal Length | 3-8.5mm varifocal lens | | Zoom Ratio | 2.8x | | Aperture | f/1.2 | | Angular Field of View | Horizontal: 100.12-35.38°
Vertical: 73.76-26.58° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus / manual, remote control via network | | Lens Type | DC auto iris, P-iris | | Mount Type | Board-in type | | | | Number of IR LEDs | 20 x IR LEDs | | Night Vision Range | 98.4' (30 m) | | Camera Title | Off / On (Displayed up to 45 characters) | | Day & Night | Auto (ICR) / Color / B/W / External / Schedule | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D + 3D noise filter) (Off / On) | | Image Stabilization | Off / On (digital) | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 zones with 4-sided polygon) | | Privacy Masking | Off / On (32 zones with 4-sided polygon) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 to 1/12,000 s) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter / exit, appear / disappear, audio detection, face detection with metadata | | Alarm I/O | 1 x input, 1 x output | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, network disconnection, video analytics, alarm input | | Alarm Events | File upload via FTP and email, notification via email, local storage (SD/SDHC/SDXC) or NAS recording at event, external output | | | | Ethernet | RJ45 10/100Base-T | | Video Compression Format | H.264 (MPEG-4 part 10/AVC) and M-JPEG | | Resolution | 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Frame Rate | H.264: 30 fps @ 2048 x 1536, 1600 x 1200, 60 fps @ other resolutions
M-JPEG: 10 fps @ 2048 x 1536, 15 fps @ 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 30 fps @ 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Smart Codec | Manual mode (5 x area-based), face detection mode | | Video Quality Adjustment | H.264: Compression level, target bitrate level control, M-JPEG : Quality level control | | Bitrate Control Method | H.264: CBR or VBR, M-JPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | Audio In | Selectable (mic in / line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack), maximum output level: 1 Vrms | | Audio Compression Format | G.711 u-law /G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Two-way audio support | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Edge Storage | 4 GB microSD card preinstalled, up to 64 GB supported | | Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) v2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | OS Supported | Supported OS: Windows XP, Vista, 7, 8
Mac OS X 10.7 | | Web Browser Support | Microsoft Internet Explorer (Ver. 11, 10, 9, 8)
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9)
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15)
Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) | | Software | Central Management: SmartViewer, SSM | | | | Operating Temperature / Humidity | 24 VAC: -58 to 131°F (-50 to 55°C)
12 VDC, PoE: -4 to 131°F (-20 to 55°C) | | Operating Humidity (Relative) | < 90% | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) | | Storage Humidity | < 90% (relative humidity) | | IP Rating | IP66 | | IK Code | IK10 | | | | Input Voltage | 24 VAC or 12 VDC, PoE (IEEE802.3af class3) | | Maximum Power Consumption | 24 VAC with Heater On / Off: 13 W / 19 W
12 VDC: 11.5 W
PoE: 12.5 W | | | | Material | Aluminum | | Dimensions (WxHxD) | Without Sunshield: 3.2 x 3.2 x 12.3" (82.4 x 82.4 x 312.6 mm)
With Sunshield: 3.56 x 3.54 x 13" (90.4 x 90 x 333.2 cm) | | Weight | With Sunshield: 2.62 lb (1.19 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 14.6 x 14.6 x 6.3" |
