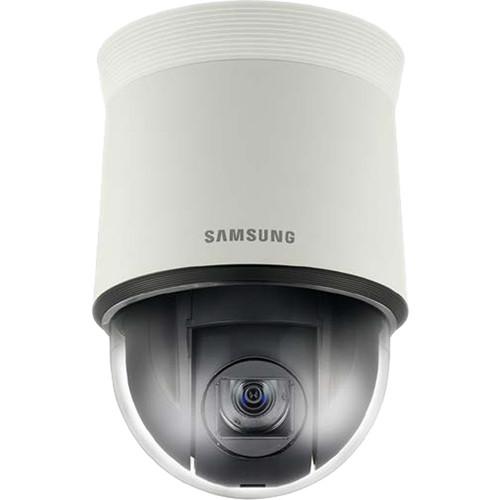

Product description The ivory WiseNet III Series SNP-5321 1.3MP 720p Network PoE PTZ Dome Camera from Samsung captures up to 1280 x 1024 images using a 1/3" progressive scan CMOS sensor and a 4.44 to 142.6mm lens. It offers 32x optical zoom and 16x digital zoom and captures video at a minimum illumination of 0.05 lux (color) and 0.005 lux (B/W) at f/1.6. The camera comes with an infrared cut filter, which makes it suitable for day/night applications. This dual codec (H.264, MJPEG) camera supports multiple streaming. It also features PoE+, an SD/SDHC/SDXC memory card slot for on-board recording, and bi-directional audio support. - Maximum resolution of 1.3MP (1280 x 1024)
- 16:9 HD (720p) resolution support
- 4.44 to 142.6mm (32x) optical zoom, 16x digital zoom
- Day & night (ICR), WDR (120 dB)
- Minimum illumination of 0.05 lux @ f/1.6 (color) and 0.005 Lux @ f/1.6 (B/W)
- H.264, MJPEG dual codec with multiple streaming
- Intelligent video analytics
- PoE+, SD/SDHC/SDXC memory card slot
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet III Series SNP-5321 1.3MP 720p Network PoE PTZ Dome Camera Cable for the Testing Monitor Software CD Installation Base 4 x Tapping Screw Template Insulation Sheet Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III Series SNP-5321 1.3MP 720p Network PoE PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNP-5321 Specs | | | Imaging Device | 1/3" 1.3 MP CMOS | | Total Pixels (H x V) | 1312 x 1069, 1.4 MP | | Effective Pixels (H x V) | 1305 x 1049, 1.37 MP | | Scanning System | Progressive | | Minimum Illumination | Color: 0.1 lux (1/30 sec, f/1.6, 50 IRE, AGC high), 0.005 lux (2 sec, f/1.6, 50 IRE, AGC high)
B/W: 0.01 lux (1/30 sec, f/1.6, 50 IRE, AGC high), 0.0005 lux (2 sec, f/1.6, 50 IRE, AGC high)
Color: 0.05 lux (1/30 sec, f/1.6, 30 IRE), 0.0025 lux (2 sec, f/1.6, 30 IRE)
B/W: 0.005 lux (1/30 sec, f/1.6, 30 IRE), 0.00025 lux (2 sec, f/1.6, 30 IRE) | | S / N Ratio | 50 dB | | Video Out | CVBS: 1.0 V p-p / 75 Ohms Composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation | | | | Focal Length (Zoom Ratio) | 4.44 to 142.6mm (optical 32x) | | Maximum Aperture Ratio | f/1.6 (wide), f/4.4 (tele) | | Angular Field of View | H: 56.8° (wide) to 1.99° (tele)
V: 46.3°(wide) to 1.6° (tele) | | Minimum Object Distance | Wide 4.9' (1.5 m), tele 6.56' (2.00 m) | | Focus Control | Auto / manual / one push | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | Pan Range | 360° endless | | Pan Speed | Preset: 700°/sec
Manual: 0.024 to 120°/sec | | Tilt Range | 210° (-15 to 195°) | | Tilt Speed | Preset: 700°/sec
Manual: 0.024 to 120°/sec | | Sequence | 255 Presets, Swing, 6 Groups, Trace, Tour, Auto Run, Schedule | | Preset Accuracy | ±0.2° | | Azimuth | Yes (E / W / S / N / NE / NW / SE / SW) | | | | Camera Title | Off / on (displayed up to 45 characters) | | Day & Night | Auto (ICR) / color / B/W | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (off / on) | | Digital Noise Reduction (DNR) | SSNR (2D+3D noise filter) (off / on) | | Digital Image Stabilizer | Off / on | | Defog | Auto / manual / off | | Motion Detection | Off / on (4 rectangular zones) | | Privacy Masking | Off / on (32 rectangular zones) with zoom threshold mosaic option | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 16x | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, face detection | | Alarm I/O | 4 x Input / 2 x output (relay) | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE | | Audio In | Selectable (Mic in/line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Maximum Output Level: 1 V RMS | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and email, notification via email, TCP, and HTTP, local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (alarm triggers), external output | | | | Ethernet | RJ45 (10/100BaseT) | | Video Compression Format | H.264 (MPEG-4 Part 10/AVC), MJPEG | | Resolution | 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 60 fps at all resolutions
MJPEG:
15 fps (maximum) @ 1280 x 1024, 1280 x 720, 1024 x 768
30 fps (maximum) @ 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Smart Codec | Manual mode (Area-Based: 5)
Face detection mode | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio Compression Format | G.711 μ-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/sec | | Audio Communication | Bi-directional | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 10 users at unicast mode | | Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2, Wisenet Open Platform | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / Vista / 7 / 8, Mac OS X 10.7
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 32), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Apple Safari support for Mac OS X only | | Central Management | Software: SmartViewer, SSM | | | | CPU | Intel Core 2 Duo 2.6 GHz or higher (for 1280 x 1024 @ 30 fps)
Intel Core i7 2.8 GHz or higher (for 1280 x 1024 @ 60 fps)
Web Plug-in is optimized to SSE 4.1 Instruction Set | | Resolution | 1280 x 1024 pixels or higher (32-bit color) | | RAM | 2 GB or higher | | Video Memory | 256 MB or higher
Note: It is advisable to use Intel Core 2 Duo 2.93 GHz or higher in a multi-browser environment. | | | | Capacity | 4 to 64 GB SD card (a Sandisk or Transcend card is recommended) | | Recommended Speed | Class 6 or higher for frame rates below 30 fps
Class 10 UHS or higher for frame rates over 31 fps | | NAS | Recommended Specifications:
Capacity: 200 GB or higher (Synology and Netgear NAS recommended)
Simultaneous Access: One unit of NAS can accept a maximum of sixteen camera accesses If you use NAS equipment for purposes other than video storage, the number of accessible cameras may be reduced | | | | Input Voltage | 24 VAC ± 10%, PoE+ (IEEE802.3af, Class4) | | Power Consumption | 20 W | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) / less than 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | Less than 90% RH | | Vandal Resistant | IK10 (with SHP-3701H available separately) | | | | Material | Plastic and metal | | Dimensions (Ø x H) | 5.98 x 8.59' (15.2 x 21.8 cm) | | Weight | 3.97 lb (1.8 kg) |
