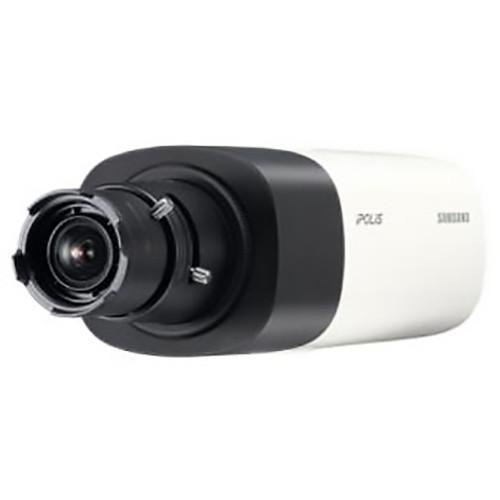

User Manual for Hanwha Techwin WiseNet III SNB-6005 2MP 1080p Network Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet III SNB-6005 2MP
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet III SNB-6005 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

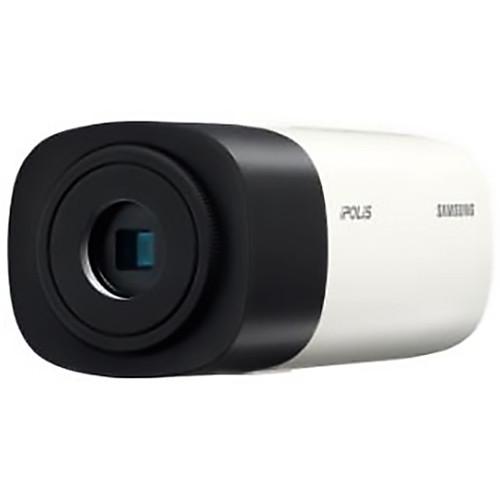

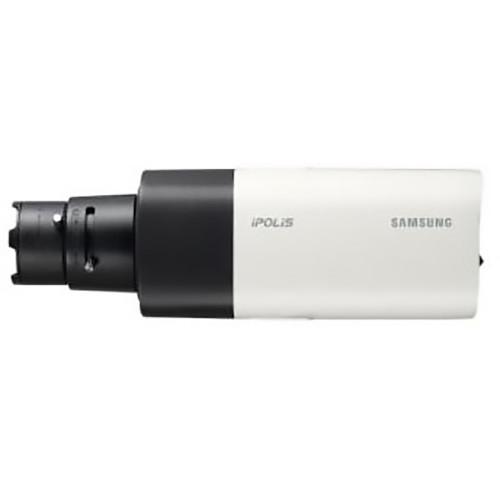

Product description The WiseNet III SNB-6005 2MP 1080p Network Camera from Samsung features a 1/1.9" progressive scan CMOS sensor that captures images up to a resolution of 1920 x 1080. Thanks to the automatic IR cut filter, the camera can capture color images during daytime and B&W images in extremely low light. The camera comes with a host of features such as audio, face, and motion detection, as well as multi-crop streaming. - 2MP (1920 x 1080) resolution
- 0.015 lux @ f/1.2 (color), 0.0015 lux @ f/1.2 (B/W)
- H.264, MJPEG dual codec, multiple streaming
- WDR (120 dB), simple focus, P-Iris, defog
- Audio / face / motion detection
- SD/SDHC/SDXC memory card slot, multi-crop streaming
- PoE, UPnP, bi-directional audio support
In the Box Hanwha Techwin WiseNet III SNB-6005 2MP 1080p Network Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III SNB-6005 2MP 1080p Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNB-6005 Specs | | | Imaging Device | 1/2.3" 12M CMOS | | Total Pixels | 12 MP (4168 x 3062) | | Effective Pixels (H x V) | 4072 x 3046 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.28 lux (1/30 sec, F1.2), 0.01 lux (1 sec, F1.2)
B/W: 0.03 lux (1/30 sec, F1.2), 0.0015 lux (1 sec, F1.2) | | S / N Ratio | 50 dB | | Video Output | CVBS : 1.0 Vpp / 75 ohms composite, 720 x 480(N), 720 x 576(P), for installation
BNC type | | | | Focus Control | Simple focus / manual
Remote control via network, button control (manual, simple focus, day&night) | | Lens Type | Manual / DC auto iris | | Mount Type | C / CS | | | | Camera Title | Off / On (Displayed up to 45 characters) | | Day & Night | Auto (ICR) / color / B&W / external / schedule | | Backlight Compensation | Off / BLC / WDR | | Contrast Enhancement | SSDR (Samsung super dynamic range) (off / on) | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction | SSNRIII (2D + 3D noise filter) (off / on) | | Image Stabilization | Off / on | | Motion Detection | Off / on (4 zones with 4 points polygonal zones) | | Privacy Masking | Off / On (32 zones with 4 points of polygonal) | | Gain Control | Off / low / middle / high / manual | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti-flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter / exit, (Dis)appear, audio detection, face detection - support metadata | | Alarm I/O | Input 1ea / output 1ea | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch | | Alarm Triggers | Motion detection, tampering detection, audio detection, face detection, network disconnection, video analytics, alarm input | | Alarm Events | File upload via FTP and email, notification via email
Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, external output | | | | Ethernet | RJ-45 (10/100BASE-T) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC): Main / baseline / high , MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264
60 fps maximum @ other resolutions
MJPEG:
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 @ 15 fps maximum 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 @ 30 fps maximum | | Smart Codec | Manual mode (Area based method: 5ea), face detection mode | | Video Quality Adjustment | H.264 : Compression level, target bitrate level control
MJPEG : Quality level control | | Bitrate Control Method | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | Audio In | Selectable (Mic in / Line in)
Supply Voltage : 2.5 VDC (4 mA), input impedance: 2 kOhms approximately | | Audio Out | Line out (3.5 mm mono mini jack)
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Bi-directional audio (2-way) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | Maximum User Access | 15 users at unicast mode | | Edge Storage | SD/SDHC/SDXC - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) microSD card available separately | | Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) SVNP, Samsung camera application platform | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek | | Web Viewer | Supported OS : Windows XP / Vista / 7 / 8, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 25), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7), Mac OS X only | | Software | Central Management: SmartViewer, SSM | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C) / <90% RH Start up should be done at above 14°F (-10°C) | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) / <90% RH | | | | Input | Voltage / Current: 24 VAC, 12 VDC, PoE (IEEE802.3af, class3) | | Power Consumption | 11.44 W (24 VAC, 50 / 60 Hz) maximum
10 W (12 VDC) maximum
11.1 W (PoE, class 3) maximum | | | | Material | Aluminum | | Dimensions (W x H x D) | 2.88 x 2.62 x 5.82" (7.31 x 6.66 x 14.78 cm) | | Weight | 0.95 lb (0.43 kg) |
