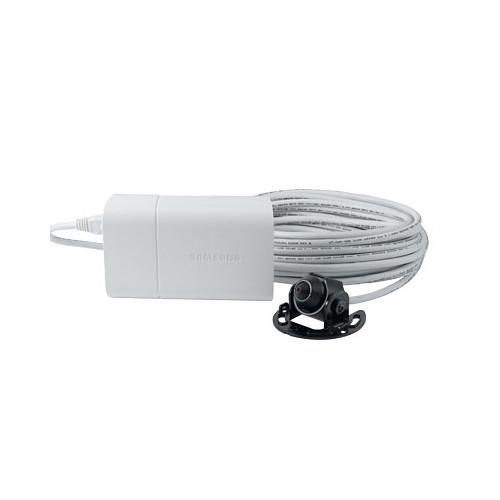

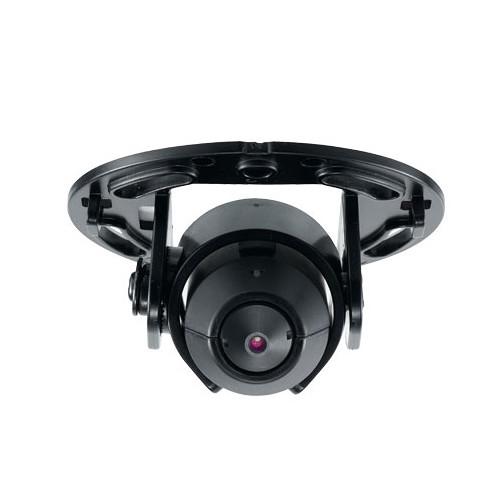

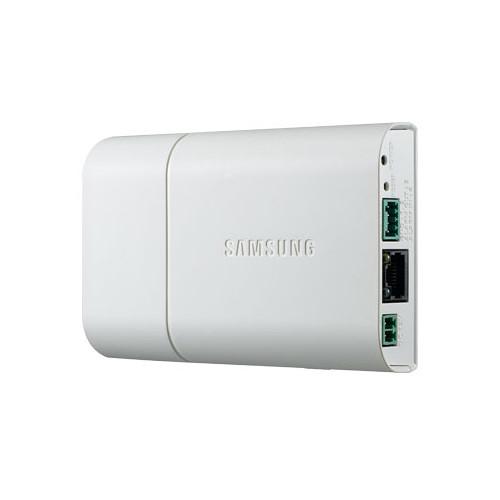

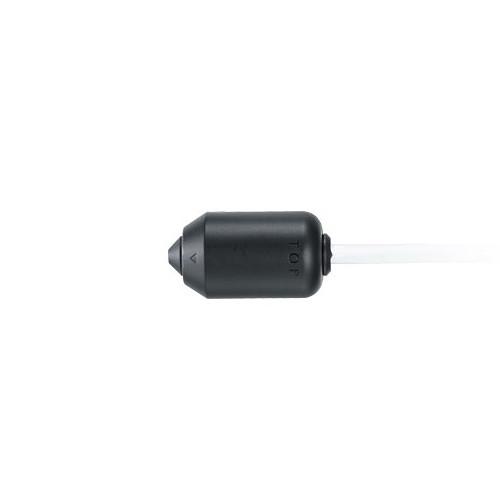

Product description The SNB-6010B 2MP Network Modular Camera from Hanwha Techwin uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. The 4.6mm pinhole lens delivers a 71° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. - Suitable for discreet applications or where space is limited
- Cable connected to camera header has a length of 5'
- IR cut filter for day and night functionality
- H.264 and MJPEG video compressions
- Unicast and multicast streaming
- Up to fifteen users in unicast mode
- 0.98' minimum object distance
- 120 dB wide dynamic range
- Contrast enhancement (SSDR)
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Digital image stabilization
- Mirroring and flip perspective
- Motion detection for up to four polygonal zones
- Privacy masking for up to thirty-two polygonal zones
- Intelligent video analytics include tampering, virtual line, enter/exit, (dis)appear, audio detection, and face detection with metadata
- Alarm triggers include motion detection, alarm input, video analytics, network disconnection, and audio detection
- Alarm events include file upload via FTP and email, notification via email, local storage or NAS recording at event (alarm triggers), and external output
- CVBS video output for installation (DIP connector)
- RJ12 connection on main unit
- Compatible with Windows 7, 8 & 10, Max OS X 10.8 to 10.11, Internet Explorer 11, Firefox 43, Safari 9 (Max OS X only), SmartViewer, and SSM
- Camera title settings displayed in up to forty-five characters
- FCC, cUL, and CE certified
In the Box Hanwha Techwin WiseNet III SNB-6010B 2MP Network Modular Camera with 4.6mm Pinhole Lens Monitor Testing Cable Camera Header Installation Bracket Main Unit Installation Bracket Power Terminal Block Alarm Terminal Block 4 x Installation Screws Cable Tie Brochure PDF 268.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III SNB-6010B 2MP Network Modular Camera with 4.6mm Pinhole Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNB-6010B Specs | | | Sensor | 2.38 MP 1/2.8" CMOS | | Focal Length | 4.6mm | | Maximum Aperture | f/2.5 | | Lens Field of View | Horizontal: 71°
Vertical: 38° | | IR Cut Filter | Digital | | Day/Night | Yes | | Minimum Illumination | Color: 0.3 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps (H.264) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 | | Analytics | Tampering
Virtual Line
Enter/Exit
(Dis)Appear
Audio Detection
Face Detection with Metadata
Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8, 10 | | Mac OS Support | OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8 | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | None | | Video Management Software | SmartViewer, SSM | | Supported Languages | Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Spanish
Swedish
Turkish | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 6.5 W
PoE: 7.5 W | | Material of Construction | Plastic | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 90% | | Dimensions | H: 1.1 x W: 5.2 x L: 3.4" / H: 28.0 x W: 131.1 x L: 86.0 mm Camera Head: Ø0.94 x 1.67" / Ø24 x 42.4 mm | | Weight | 0.6 lb / 255 g Camera Unit with 5' / 1.5 m Cable: 0.18 lb / 80 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.3 x 4.9 x 4.2" |
