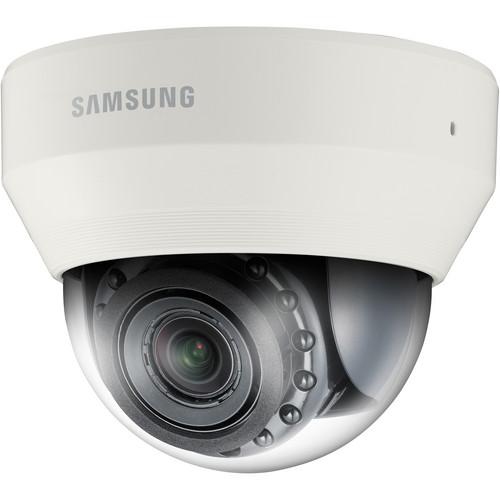

Product description The WiseNet III SND-6084R 2MP Dome Camera from Samsung has a 2MP 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Its 3-8.5mm motorized varifocal lens features simple focus technology and is able to monitor a wide coverage area with a 105.5-37.1° horizontal field of view. The camera features an electronic day/night function and IR LEDs to capture clear video in complete darkness from up to 49.2' away. To ensure high-quality recording and playback, video is compressed using either H.264 or M-JPEG codecs, and multi-streaming is supported. A microSD card slot supports up to a 64GB microSD card (available separately) for edge storage. - 2MP 1/2.8" progressive-scan CMOS sensor capture 1920 x 1080 resolution video at up to 60 fps
- 3-8.5mm motorized DC auto iris, P-iris varifocal lens with 105.5-37.1° horizontal field of view
- Electronic day/night function and IR LEDs allows the camera to see up to 49.2' in complete darkness
- H.264 and M-JPEG compression codecs for low bandwidth, yet high-quality recording and playback
- Built-in microSD slot supports microSD cards up to 64GB (available separately)
- Bi-directional audio support, IR LED (12 each)
In the Box Hanwha Techwin WiseNet III SND-6084R 2MP Dome Camera with Night Vision Software CD Testing Monitor Cable Power Terminal Block Mounting Template Alarm Cable Mounting Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III SND-6084R 2MP Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-6084R Specs | | | Image Sensor | 2 MP 1/2.8" progressive scan CMOS sensor | | Total Pixels | 1952 x 1116 | | Effective Pixels | 1944 x 1104 | | Minimum Illumination | Color: 0.1 lux (f/1.2, 50 IRE), 0.0017 lux (2 sec, f/1.2, 50 IRE), 0.03 lux (f/1.2, 30 IRE)
B/W: 0 lux (f/1.2, 50 IRE, IR LED on), 0 lux (f/1.2, 30 IRE, IR LED on) | | Signal to Noise Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p, 75 Ohms composite | | | | Lens | 3-8.5mm motorized varifocal lens | | Aperture | f/1.2 | | Angular Field of View | Horizontal: 105.5-37.1°
Vertical: 57.5-21.0° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (Motorized V / F) / manual, remote control via network (Manual, Simple focus) | | Lens Type | DC auto iris, P-iris | | Mount Type | Board-in type | | | | Pan / Tilt / Rotate | 0-354° / 0-67° / 0-355° | | | | IR LED | 12 IR LEDs | | Night Vision Range | Up to 49.21' (15 m) | | Camera Title | Off / On (Displayed up to 45 characters) | | Day & Night | Auto (ICR) / Color / B/W / External / Schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR III (2D and 3D noise filter) (Off / On) | | Digital Image Stabilizer | Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 each 4 points polygonal zones) | | Privacy Masking | Off / On (32 zones with 4 points of polygonal) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Antiflicker | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, face detection | | Alarm I/O | 1 x input, 1 x output | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and email, notification via email, TCP, local storage (microSD) recording at network disconnected and event (alarm triggers), external output | | | | Ethernet | RJ45 10/100Base-T | | Video Compression Format | H.264 (MPEG-4 part 10 / AVC) and M-JPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: maximum 60 fps at all resolutions
M-JPEG:
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: maximum 15 fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180: maximum 30 fps | | Video Quality Adjustment | H.264: Compression level, Target bit-rate level control
M-JPEG: Quality level control | | Bit-Rate | Bit-rate Control Method: H.264: CBR or VBR, M-JPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | Audio Input | Selectable (mic in, line in)Maximum Output Level: 1 VrmsSupply Voltage: 2.5 VDC (4 mA)Input Impedance: Approximately 2 kOhms | | Audio Output | Line out (3.5 mm stereo mini jack) | | Audio Compression Format | G.711 u-law, G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps | | Audio Communication | Bi-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast, multicast | | Maximum User Access | 15 users in unicast mode | | SD Card Slot | Supports up to 64 GB microSD card (available separately) | | Application Programming Interface | ONVIF profile S and G, HTTP API (SUNAPI) 2.0, SVNP 1.2 | | Web Viewer | Supported OS: Windows XP, Vista, 7, 8, 8.1
Mac OS X 10.7
Supported Windows Browsers:
Microsoft Internet Explorer 8 and above, Mozilla Firefox 9 and above, Google Chrome 15 and above
Supported Apple Browsers:
Apple Safari 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) | | CMS | SmartViewer | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Relative Humidity, Operating/Non-Operating | < 90% RH | | | | Input Voltage/Current | 12 VDC ± 10%, PoE (IEEE802.3af) | | Maximum Power Consumption | 9 W | | | | Material | Polycarbonate (PC) | | Dimensions (Ø x H) | 5.20 x 4.24" (13.21 x 10.76 cm) | | Weight | 1.16 lb (0.53 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.2 x 6.2 x 5.2" |
