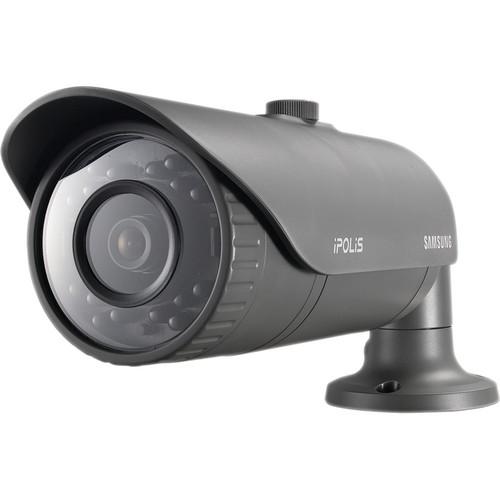

User Manual for Hanwha Techwin WiseNet III SNO-6011R 2MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet III SNO-6011R 2MP
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet III SNO-6011R 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The WiseNet III SNO-6011R 2MP Outdoor Network Bullet Camera with Night Vision from Samsung has a 2MP 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. An IR cut filter and IR LEDs allow this camera to produce clear images in complete darkness from up to 49' away. Its 3.8mm fixed lens provides a wide 98.8° diagonal field of view to monitor a large room. The camera is enclosed in an IP66-rated housing to protect it from dust and water and comes with a preinstalled 4GB SD card for on-board storage. - 2MP 1/2.8" progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps
- IR cut filter and 16 IR LEDs help the camera produce clear images at night at up to 49' away
- 3.8mm fixed lens provides a 98.8° diagonal field of view
- Built-in PoE technology simplifies installation
- Preinstalled 4GB SD card for on-board storage
- Wide dynamic range of up to 120 dB for accurate images in varying exposure levels
In the Box Hanwha Techwin WiseNet III SNO-6011R 2MP Outdoor Network Bullet Camera with Night Vision 4GB SD Card (Preinstalled) Software CD Mounting Hardware Mounting Template Sunshield Sunshield Hold Screw Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III SNO-6011R 2MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNO-6011R Specs | | | Image Sensor | 2.38 MP 1/2.8" progressive scan CMOS sensor | | Total Pixels | 1952 x 1236 | | Effective Pixels | 1944 x 1224 | | Minimum Illumination | Color: 0.3 lux (f/2.0, 50 IRE), 0.03 lux (2 s, 50 IRE), 0.08 lux (f/2.0, 30 IRE)
B/W: 0 lux (IR LED on), 0 lux (f/2.0, 30 IRE, IR LED on) | | Signal to Noise Ratio | 50 dB | | Video Output | CVBS: 1 V p-p 75 Ohms composite, 704 x 480 | | | | Focal Length | 3.8mm fixed | | Aperture | f/2.0 | | Angular Field of View | Horizontal: 84.5°
Vertical: 45.8°
Diagonal: 98.8° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Manual | | Mount Type | Board-in type | | | | Number of IR LEDs and Range | 16 x IR LEDs, up to 49.2' (15 m) | | Camera Title | Off / On (displayed up to 45 characters) | | Day & Night | Auto (ICR), color, B/W | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 15 fps, 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D + 3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 x 4 points polygonal zones) | | Privacy Masking | Off / On (32 x polygonal zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Auto / A.FLK / Manual (1/30 to 12,000 s) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, Virtual line, Enter/Exit, Appear/Disappear, Face detection, with metadata | | Alarm I/O | 1 x input | | Alarm Triggers | Motion detection, face detection, tampering detection, video analytics, alarm input | | Alarm Events | File upload via FTP and email, notification via email
Local storage or NAS recording on alarm trigger | | | | Ethernet | RJ45 10/100Base-T Ethernet | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 320 x 240, 320 x 180 | | Frame Rate | H.264: Maximum 30 fps at all resolutions
MJPEG: 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 (maximum 15 fps)
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 (maximum 30 fps) | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | Maximum User Access | 15 users in unicast mode | | Memory Slots | microSD/SDHC/SDXC supports up to 64 GB
Motion images recorded SDXC/SDHC/SD memory card can be downloaded (4 GB SD card included) | | Application Programming Interface | ONVIF Profile S, HTTP API v2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Romanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS: Windows XP, Vista, 7, Mac OS X 10.7 or higher
Supported Browser: Internet Explorer 7.0 or Higher, Firefox 9.0 or Higher, and Chrome 15.0 or higher for Windows only and Safari 5.1 or higher for Mac OS X Windows 8 is supported only in Desktop mode. | | Recommended | Recommended Specifications: PC
CPU: Intel Core 2 Duo 2.4 GHz or higher (for using 1920 x 1080 30 fps)
Intel Core i7 2.8 GHz or higher (for using 1920 x 1080 60 fps)
Web Plug-in is optimized to SSE 4.1 instruction set
Resolution: 1280 x 1024 pixels or higher (32 bit color)
RAM: 2 GB or higher 7)
For IPv6 connection, Window 7 or higher is recommended
Video Memory: 256 MB or higher
Memory Card
For frame rate below 30 fps, it is recommended to use a memory card of Class 6 or higher
For frame rate over 31 fps, it is recommended to use a memory card of Class 10 UHS or higher
It is recommended to set storage frame rate to 30 fps or lower when you use the embedded SD memory card | | Central Management | SmartViewer | | | | Operating Temperature | -22 to 131°F (-30 to 55°C) | | Operating Humidity | Less than 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | Less than 90% RH | | IP Rating | IP66 | | | | Input Voltage/Current | PoE (IEEE802.3af) | | Power Consumption | Maximum 7.7 W | | | | Material | Plastic | | Dimensions (W x H x D) | 3 x 3.3 x 11.9" (77.1 x 83 x 302.4 mm) | | Weight | 1.23 lb (0.56 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 11.654 x 10.236 x 5.118" |
